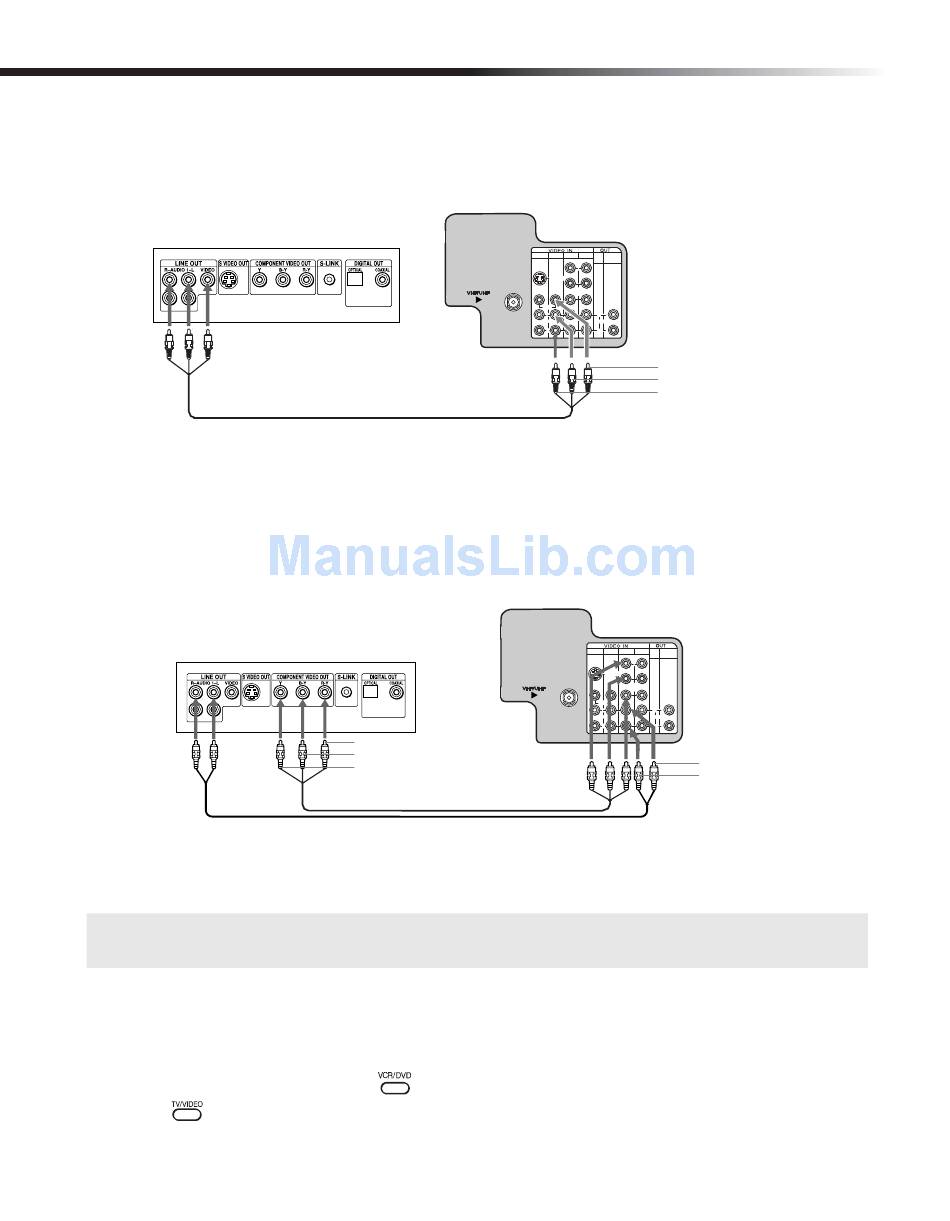

Connecting a DVD Player
Using audio/video cables (not supplied), connect AUDIO/VIDEO OUT on your DVD player
to AUDIO/VIDEO IN on your TV.
Rear of DVD Player
Optional connection
❏
For better picture quality, use S VIDEO instead of the yellow video cable. S VIDEO does
not provide sound, so you still must connect the audio cables.
❏
If your DVD player is equipped with component video outputs (Y, P
improve the picture quality by using component video cables (480i only). This connection
can be done on VIDEO 4 or 5 (both Y, P
Rear of DVD Player
2
1
Using component video cables (not supplied), connect the Y, P
player to Y, P , P
B R
2
Connect AUDIO OUT on your DVD player to AUDIO IN on your TV.
✍
The Y, P , P outputs on your DVD player are sometimes labeled Y, C
B R
connect the cables to like colors.
Using your TV with this connection
This connection allows you to do the following:
❏
Program your Sony remote control to operate your DVD (see page 5).
❏
To activate your remote, press
❏
Press repeatedly to switch to the DVD player's input (VIDEO input).
