Chamberlain Grifco eDrive Instructions

Ape work for edrive clutch openers, suits all clutch models

INSTALLATION

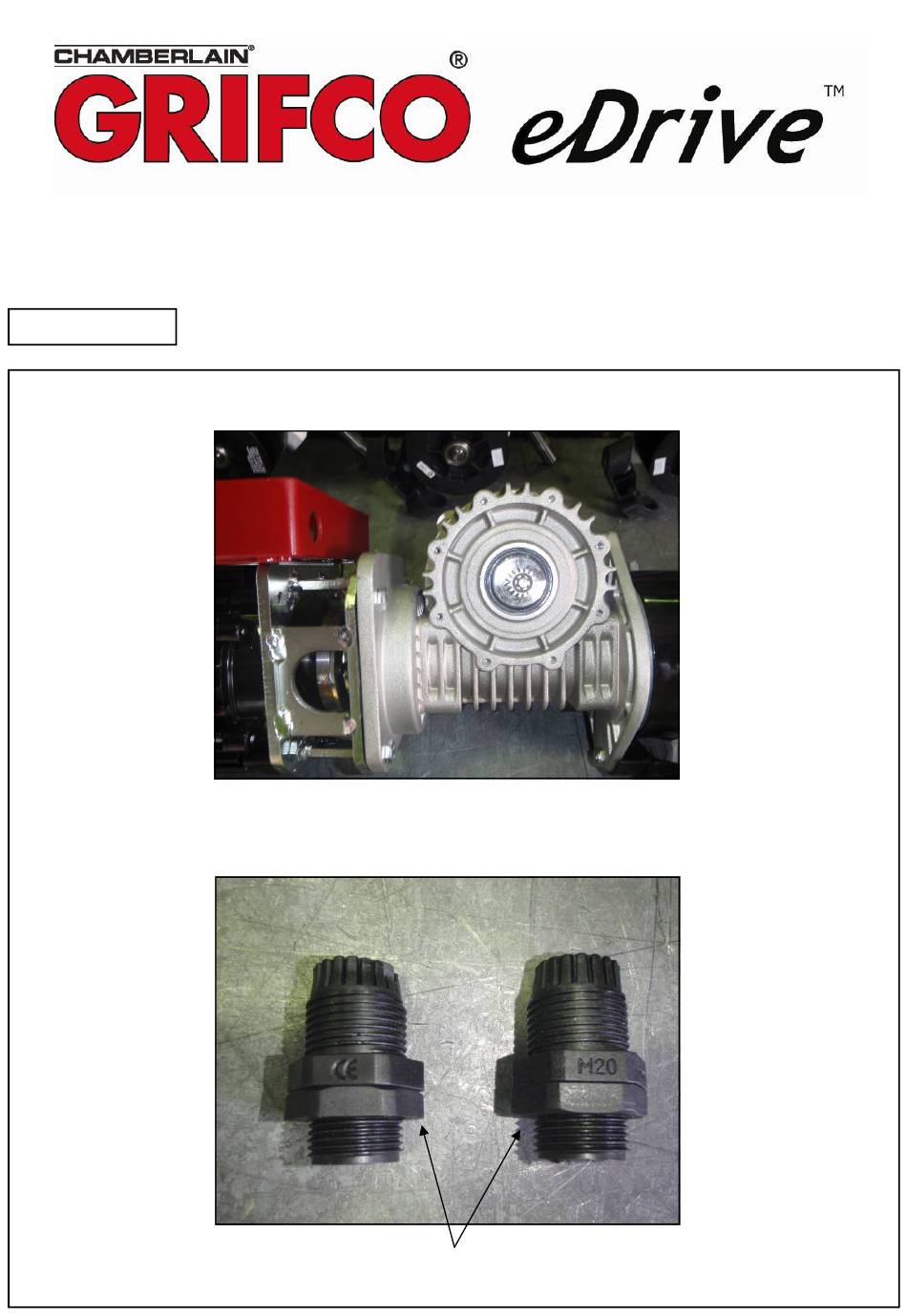

Begin with APE enclosure etc removed.

Remove rubber washers from (20mm) glands and add an additional nut to each gland. Position each nut so they are flush

with one another as shown below.

MxxxxC work instructions

APE work instructions for eDrive clutch openers

(Suits all eDrive clutch models)

Additional nuts

100121

Table of Contents

Do you have a question about the Grifco eDrive and is the answer not in the manual?

Page 1 APE work instructions for eDrive clutch openers (Suits all eDrive clutch models) INSTALLATION 1. Begin with APE enclosure etc removed. 2. Remove rubber washers from (20mm) glands and add an additional nut to each gland. Position each nut so they are flush with one another as shown below. Additional nuts MxxxxC work instructions 100121...
Page 2 3. Using the 290mm (MJ3800R) APE cable, attach 220mm of (Ø27MM) heat shrink between the cable ties. form Cable tie Heat shrink Before After 4. Run APE cable through gland (below left), then tighten inside nut (below right). Top view Top view ...
Page 3 6. Tighten gland onto APE enclosure and run cable through as shown below. 7. Tighten the gland and position the APE enclosure. Ensure there is enough cable to attach to the APE assembly. APE enclosure ...
Page 4 9. Mount the APE assembly using the M4 (x10mm) & 2 x M4 (x15mm) taptites as shown below. M4 x 15mm M4 x 10mm 10. Connect APE cable as shown below. Ensure the cable is reasonably taut and not touching the APE gears. Attach lid. ...
