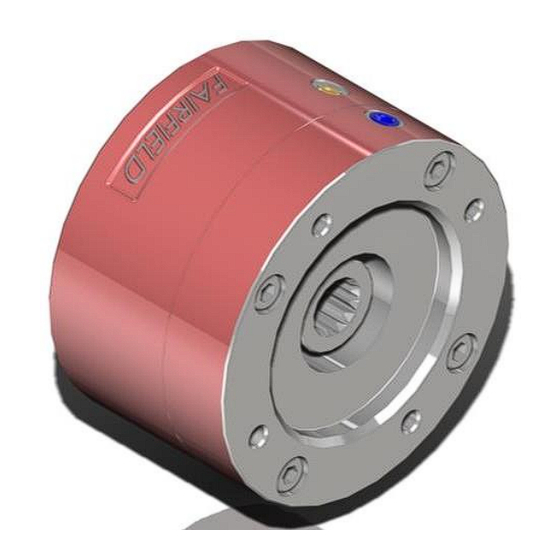

- Page 1 Brake Service Manual – FBH04 Wet Series...
- Page 2 Installation, Maintenance and Spare Parts Instructions Model: Standard ‘C’ Mount (FBH04…..W) Series Spring Applied, Hydraulically-Released Multiple Plate Brake for Wet Operation. PRE-INSTALLATlON CHECKS. Mechanical. Item Part No. Description Check, that in the process of unpacking the brake and CHB-1004 subsequent handling prior to assembly, the mounting Brake Shaft features and other parts of the brake are undamaged.
- Page 3 Installation, Maintenance and Spare Parts Instructions Model: Standard ‘C’ Mount (FBH04…..W) Series Spring Applied, Hydraulically-Released Multiple Plate Brake for Wet Operation. Installation. 9) Using arbor press or similar to break ‘Loctite’ seal, remove brake shaft (1) from housing (2) and lay Position 1-off gasket (5) over male pilot on brake housing aside.
- Page 4 Installation, Maintenance and Spare Parts Instructions Model: Standard ‘C’ Mount (FBH04…..W) Series Spring Applied, Hydraulically-Released Multiple Plate Brake for Wet Operation. 4) Lubricate ‘O’ ring seals (15 & 17) with Molykote 55M 7) Position gasket (7) in correct orientation. (or equivalent) silicon grease and assemble together 8) Align two holes in cylinder with dowel pins (19) and with backing rings (16 &...
-
Page 5: Spares Kits
Installation, Maintenance and Spare Parts Instructions Model: Standard ‘C’ Mount (FBH04…..W) Series Spring Applied, Hydraulically-Released Multiple Plate Brake for Wet Operation. SPARES KITS. a) Friction Disc Kit FCHB0000-SK1 comprising b) Spring Kit FCHB0000-SK2 comprising 1-off pressure plate (item 4) 16-off outer springs CHB-1701 (item 22) 1-off gasket (item 7) 6-off outer plates (item 6) c) Spring Kit FCHB0000-SK3 comprising...
