AUTOMATIC PRESSURE
BOOSTING PUMP
♣ Before installing and operating the pump, the Safety Instructions must be thoroughly
read for the proper use of the pump.
♣ Before installation, this manual should be completely studied. / Read this
manual completely before any work on your unit.
♣ Keep this manual handy for future reference.
♣ Product warranty is attached to this manual.
♣ ATTENTION: To keep the pump at top efficiency, this manual
should be thoroughly studied.
OWNER'S MANUAL

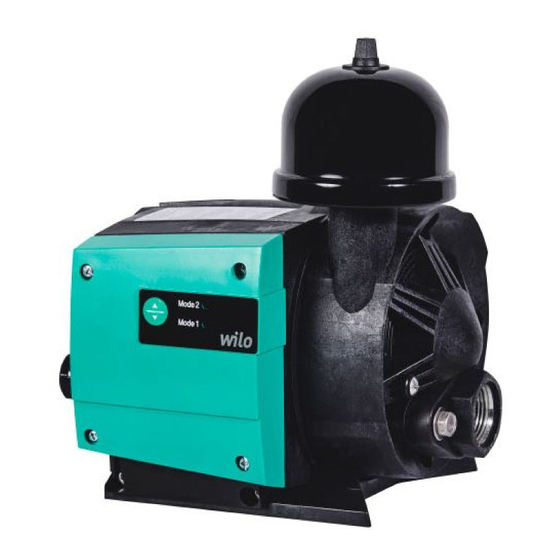

Models
PE-410MA
PE-350EA
Advertisement
Table of Contents
Related Manuals for Wilo PE-410MA
Summary of Contents for Wilo PE-410MA

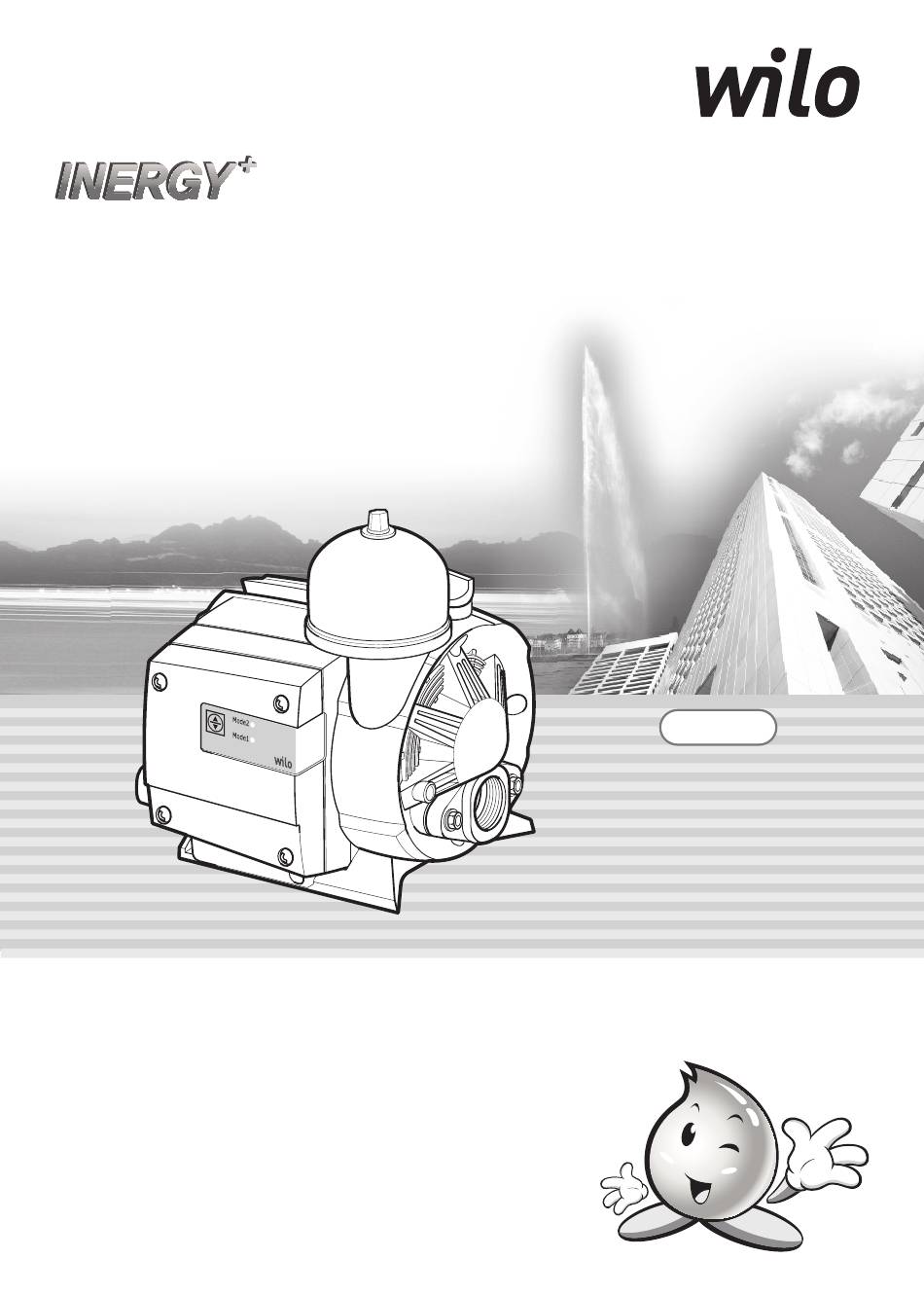

- Page 1 AUTOMATIC PRESSURE BOOSTING PUMP OWNER’S MANUAL Models PE-410MA PE-350EA ♣ Before installing and operating the pump, the Safety Instructions must be thoroughly read for the proper use of the pump. ♣ Before installation, this manual should be completely studied. / Read this manual completely before any work on your unit.
- Page 2 THANK YOU FOR PURCHASING THIS PUMP. AUTOMATIC PRESSURE BOOSTING PUMP ▶This manual includes installation and operation instructions for PE model of WILO Pumps. ▶ To keep the pump at top efficiency, follow the recommended instructions in this manual. ▶ In case of lending the pump, this manual should be attached.
-
Page 3: Table Of Contents
CONTENTS Thank you for purchasing our pump. Follow the recommended instructions in this manual. Thank you for purchasing our pump ............... 2 Features ................... 2 Contents ..................3 Safety instructions ..............4 Transportation and Installation instructions ........... 5 8 Operating instructions ............9 Dimension and parts ............. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS These instructions contain important information which must be followed when installing and operating the pump. These operating instructions must therefore be read before assembly and commissioning by the installer and the responsible operator. Both the general safety instructions in the "Safety precautions" section and those in subsequent sections indicated with danger symbols should be carefully observed. -
Page 5: Transportation And Installation Instructions
TRANSPORTATION AND INSTALLATION WARNING! Before installation, repair or removal Install a breaker of electric leakage ● ● of the pump, the power supply must be of under 30mA of rated sensitivity disconnected. to prevent electric shock. Breaker Breaker Pay special attention to extensions of the power cord. The power cord must not be ●... - Page 6 TRANSPORTAION AND INSTALLATION CAUTION! When the power cord is extended, a voltage drop that keeps the pump from ● operation may be caused. Refer to the table for extended power cord. Length of power cable nominal dimension of the cable larger than 1.5mm shorter than 50 m larger than 2.0mm...
- Page 7 INSTALLATION Wiring Only a qualified electrician should connect cables. Install a circuit breaker and connect ATTENTION! earth wire to prevent any electrical accidents including electric shock. - The wiring of major parts including the motor and the pressure sensor is already finished. Wiring of earth and other optional parts should be conducted according to the wiring diagram.
- Page 8 INSTALLATION Part Description 1. Stop valve on the suction side 2. Stop valve on the discharge side 3. Hopper cap 4. Pressure Tank 5. Drain screw 6. Pipe support 7. Strainer 8. Water tank 9. Piping -. Close the discharge valve(2) and open the Pressure Tank(4). -.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS WARNING! To prevent a fire, never wrap the motor of the pump head in a blanket or a cloth to ● prevent freezing in cold weather. The customers are liable for any damage caused by improper wrapping. CAUTION! Never conduct a shut-off operating under dry running condition ●... -
Page 10: Dimension And Parts
Flange Discharge Suction Drain screw SETTING THE OPERATING MODE Red LED Control button Green LED Operating mode Condition Display indicator Mode PE-410MA PE-350EA Green LED Auto Mode 1 1.0~2.3kgf/㎠ 1.0~1.6kgf/㎠ Pressure Red LED Auto Mode 2 1.5~2.3kgf/㎠ 1.5~1.6kgf/㎠ Range Green/Red LED(+ Suction Pressure) Auto Mode 3 1.5~1.6kgf/㎠... -
Page 11: Protective Functions & Alarms
⑤ Over-pressure protection : Red LED 3time sand Green LED 3 times flashes alternately The pumps stops when the inside pump pressure exceeds 5kgf/㎠, automatically return to operation when the inside pump pressure becomes less than 5kgf/㎠ SPECIFICATIONS Specification PE-410MA PE-350EA Power 1P, 220-230V, 50Hz 1P,220V,60Hz... -
Page 12: Wiring Diagram
WIRING DIAGRAM PE-410MA PE-350EA 50Hz 50Hz PERFORMANCE CURVE PE-410MA PE-350EA... -
Page 13: Troubles And Counter-Measures
TROUBLES AND COUNTER-MEASURES Counter-Measures Troubles Causes (The indication ● can be done by user.) Motor does Thermal protector. ● If the motor is overheated, it doesn’t not start. operate.Then, wait till getting cold. (20 ~ 30 minutes) Faulty cord connection. ●... - Page 14 MEMO...
- Page 15 MEMO...
- Page 16 P/NO. : 3057974 ( Rev.2 ) Apr.2015 Printed in Korea. The leaflet must be given to the end user and be left on site.
