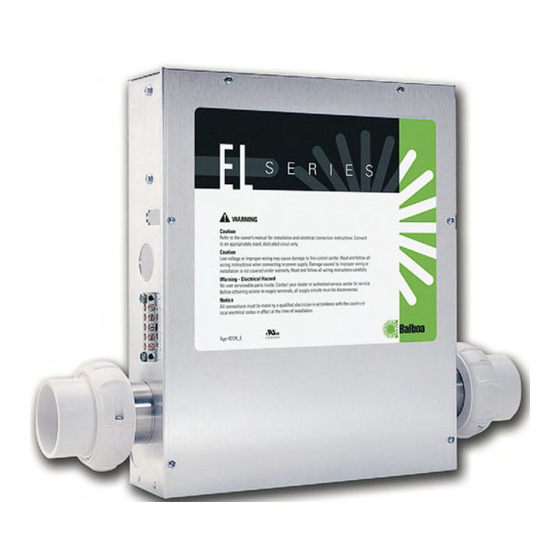

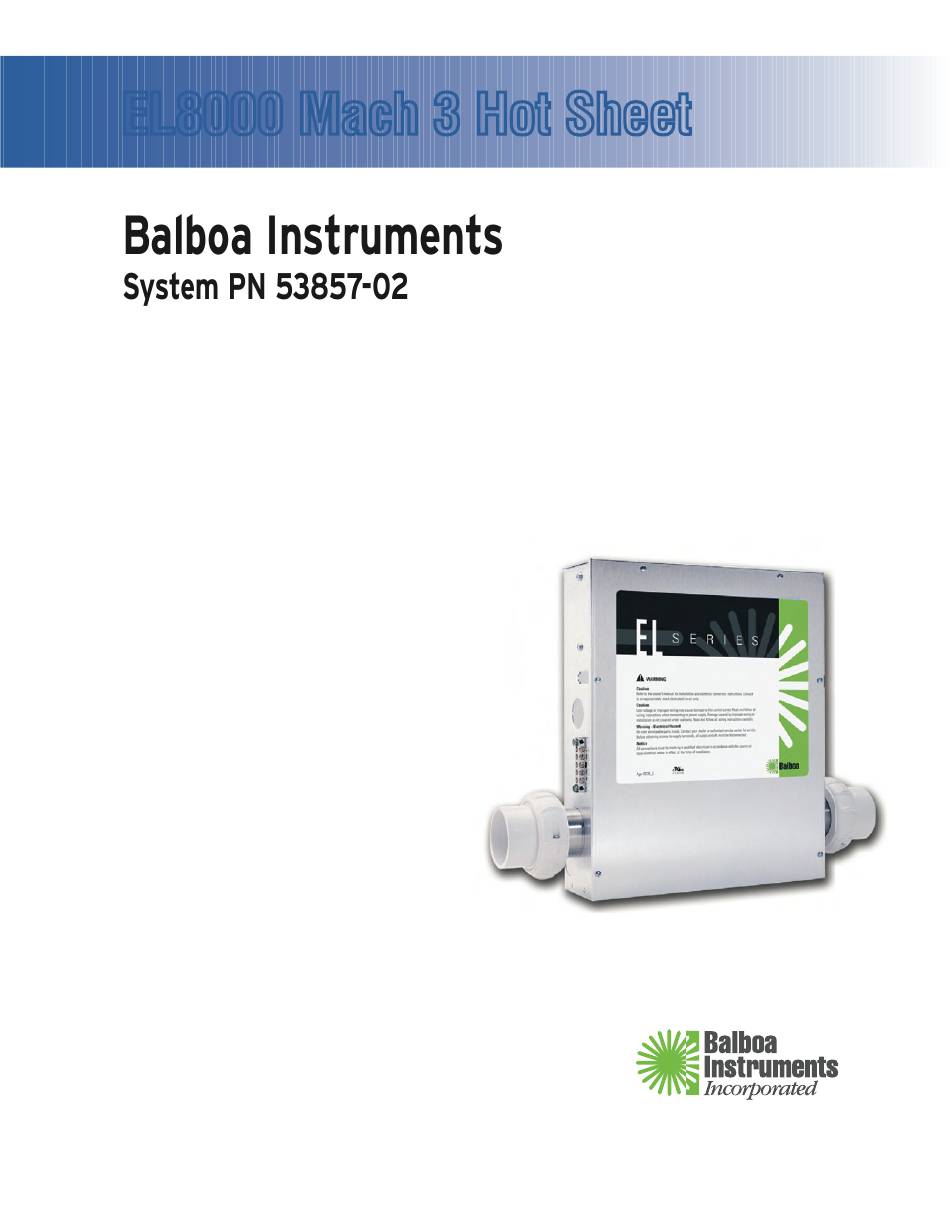

- Page 1 EL8000 Mach 3 Hot Sheet System Model # EL8-EL8000M3-YCAH Software Version # 28 EPN # 2130 Base PCBA - PN 53858-02 PCB EL8000 – PN 22041 Rev A Base Panels ML900 – PN 52654 Template used: 40575-v28_A.pdf 11/22/2006 53857_02-97_A.pdf 11/27/2006 53857_02-97_A...
- Page 2 Basic System Features and Functions Power Requirements • 240VAC, 60Hz, 48A, Class A GFCI-protected service (Circuit Breaker rating = 60A max.) • 4 wires (hot, hot, neutral, ground) System Outputs Setup 1 (As Manufactured) • 240V Pump 1, 2-Speed • 240V Pump 2, 2-Speed •...
- Page 3 Persistent Memory and Powering Up Any time you change DIP Switches or Software Configuration Settings that message on power up: affect parameters the user can change (any filter settings, set temperature If “ ” appears before (and instead of) “ ”...
- Page 4 Wiring Configuration and DIP Settings Setup 1 (As Manufactured) • 240V Pump 1, 2-Speed • 240V Blower • 120V A\V (Stereo) • 120V Fiber w/ Wheel • 240V Pump 2, 2-Speed • 240V Circ Pump • 120V Ozone • 240V 5.5kW Heater •...
- Page 5 DIP Switches Definitions WARNING: • Setting DIP switches incorrectly may cause abnormal system behavior and/or damage to system components. • Refer to Switchbank illustration on Wiring Configuration page for correct settings for this system. • Contact Balboa if you require additional configuration pages added to this hot sheet. DIP Switchbank A Key Table 1 # of Hi-Speed...
-
Page 6: Jumper Definitions
Jumper Definitions WARNING: • Setting Jumpers incorrectly may cause abnormal system behavior and/or damage to system components. • Refer to Jumper illustration in this hot sheet for correct settings for this system. • Contact Balboa if you require additional configuration pages added to this hot sheet. Jumpers Key . -
Page 7: Configuration Options
Configuration Options FUSE 10A 250V BARCODE TRC6 FUSE 3A 250V 12VAC-B BLK-A 12VAC-B BLK-A FUSE 30A CLASS G WHT AC (120V) J27 J35 J43 J23 J32 EXP I/O FUSE 1/2A 250V REMOTE J66 J65 J68 J64 J63 J67 TORQUE RANGE FOR TB1: 27-30 IN. -
Page 8: Expander Options
Expander Options X-P632 PN 53680 White P/N 22909 REV B Green Black F30A 480V White X-P632 PN 53680 Used for an additional 2-speed Pump output. Green Relay control J2 plugs into the EXP I/O connector J36 on PS-25 PN 25094 the Main PCBA (Quadrant 7-E, near W10). - Page 9 Ozone Connections Ozone Connector Voltage: The EL circuit board is factory configured to deliver a preset voltage (120V or 240V) to the on-board ozone connector (J4). See the ratings table on the wiring diagram attached to the cover of the enclosure for the configured voltage. For 240V output W13 connects to Red AC and for 120V output W13 connects to White AC.
-
Page 10: Panel Configurations
Panel Configurations Time Warm Jets 1 Jets 1 Jets 2 Jets 3 Jets 3 Jets 3 Option Option Option Option Mode/Prog Cool Invert Invert Fiber Fiber Light Blower Blower ML900 PN 52654 with Overlay PN 40026 • Connects to Main Panel terminal J70, J71, J72, or J73 •...
