Balboa Instruments ML900 Installation Instruction

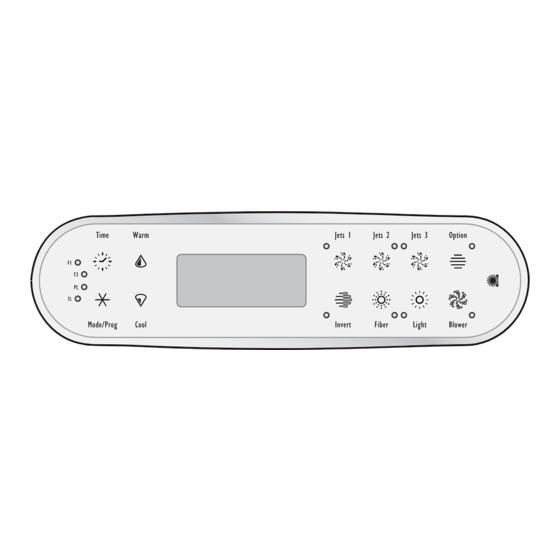

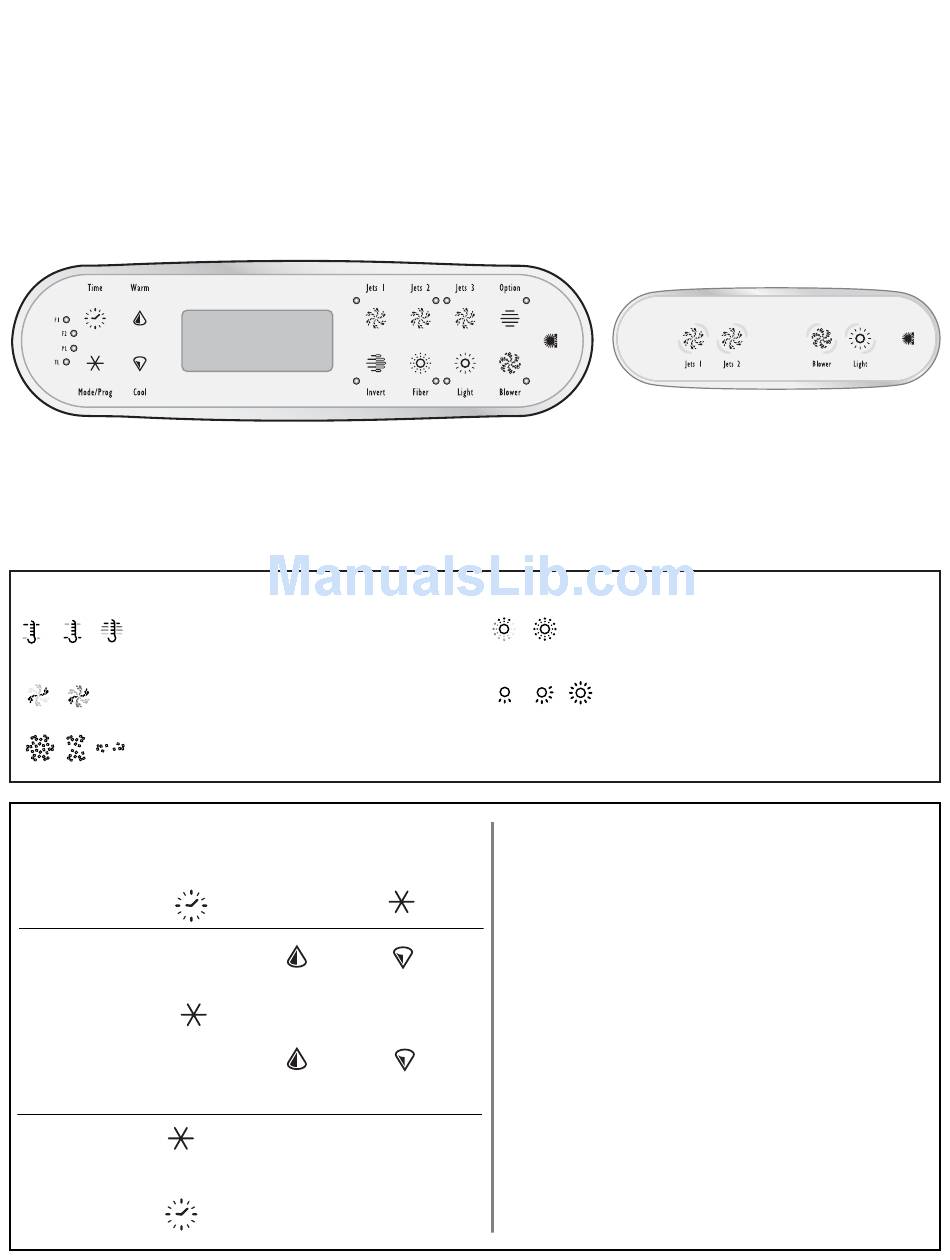

EL SERIES (Mach 1) CONTROL WITH ML900 PANEL
The ML900 panel can be used with the EL8000, EL5000, and EL2000 systems. This reference card lists all features that are available
for this panel. If your spa is not fully equipped, the panel buttons on your spa control may not be laid out as shown or respond as
described in this document.
The pump responsible for heating and filtration (pump 1 low on non-circ systems, or the circ pump on circ systems) will be
referred to simply as the pump.
Timeouts refer to a preset length of time that a function is programmed to operate before shutting off automatically. Certain
conditions (filters or freeze) can cause a function to operate longer, while faults can cause a function to operate for a shorter
length of time. The system keeps track of timeouts regardless of other conditions occurring.
In multi-button sequences, if buttons are pressed too quickly in sequence, they may not register.

Initial Start-up

When your spa is first actuated, it will go into Priming mode (after displaying some configuration information). Please see
the M-7 Installation Instruction Manual for complete instructions on Power-up and Pump Priming. The Priming
mode will last for up to 4 minutes and then the spa will begin to heat the spa and maintain the water temperature in the
Standard mode. You can exit Priming mode early by pressing "Warm" or "Cool."

Icon Legend

Heat Icon - Indicates different stages of heating.
Jets Icon - Spins fast on high speed; spins
slow on low speed.
Blower Icon - Biggest in highest speed;
smallest in lowest speed.

1. Setting the Time

Once the spa has been properly connected the first time (every power
up on the EL2000), notice the "Time" icon appearing on the screen.
Press
Select
the hour by pressing
Press
Select
minutes by pressing
Press
Press
Then
Or
(Each press changes the time by 1 hour)
to enter.
Or
(Each press changes the time by 1 minute)
to exit the time setting procedure and enter
the optional filter cycle programming. (Exits
programming on some EL2000 systems.)
to exit programming.
Example of one Auxiliary Panel available
Fiber-Optic Light Icon - Spins when the
wheel is on; stands still when wheel is off.
Light Icon - On dim, the LCD will show the
center circle plus one quarter of the light
beams. Half of the light beams will show
on medium brightness, and all of the light
beams will show on bright.

2. Optional Filter Cycle Programming

You are not required to set filter cycles; however, it is an option
available to you. To change the filter cycle settings:
Press "Time" "Mode/Prog" "Mode/Prog" "Mode/Prog" within 3
seconds. You will see the "SET FILTER 1" and a flashing "START
TIME" icon appear on the display.
Press "Up" or "Down" to choose the filter start time hour. Enter the
hour by pressing "Mode/Prog" . Press "Up" or "Down" to choose the
filter start time minutes. Each press changes the start time by
5 minutes.
Enter the minutes by pressing "Mode/Prog."
Press "Mode/Prog" to see the "SET FILTER 1" and a flashing "END
TIME" icon. Adjust the time as done above.
Press "Mode/Prog" to see the "SET FILTER 2" (PM cycle) and a
flashing "START TIME" icon. Proceed as above.
Press "Mode/Prog" to see "SET FILTER 2" and a flashing "END
TIME" icon. Adjust the time as done above.
Pressing "Mode/Prog" will enter the new filter cycle times into the
system and display the current water temperature.
Pressing "Time" at any time during this programming sequence will
save the values entered up to that point and exit programming.
If you would like to select continuous filtration, set the filter 1
start and end times to be the exact same time.
