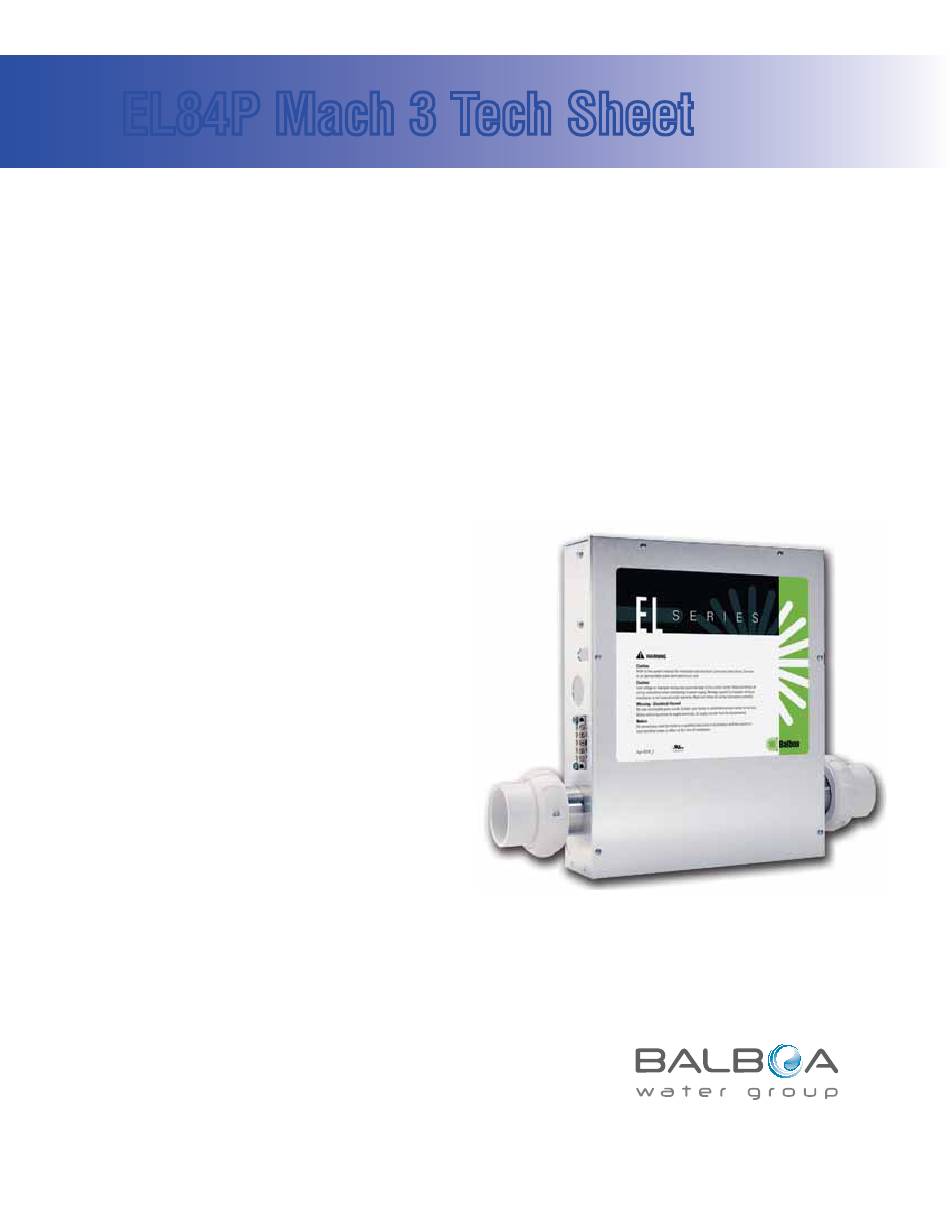

EL84P Mach 3 Tech Sheet
Balboa Instruments
System PN 54775
System Model # EL8-EL84P-YCAH
Software Version # 32
EPN # 2756
Base PCBA – PN 55889
PCB EL8000 – PN 22041 Rev A
HEX File – 10013432_EL84P_02.hex
Configuration Signature – 513BFF57
Base Panels
ML900 – PN 54589
Aux Panels
AX10A3 – PN 52765
Optional Base Panel
MLM990S – PN 54527-02
Requires ADCM Splitter to be installed.
Aux Panels
AX40 – PN 55487
Template used: 40575-v32_A.pdf 04/15/2008
54775_97_C.pdf 09/10/2008
Page 1
54775_97_C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Balboa Instruments EL8-EL84P-YCAH
Summary of Contents for Balboa Instruments EL8-EL84P-YCAH
- Page 1 EL84P Mach 3 Tech Sheet Balboa Instruments System PN 54775 System Model # EL8-EL84P-YCAH Software Version # 32 EPN # 2756 Base PCBA – PN 55889 PCB EL8000 – PN 22041 Rev A HEX File – 10013432_EL84P_02.hex Configuration Signature – 513BFF57 Base Panels ML900 –...
- Page 2 System Revision History System PN EPN Date Requested By Changes Made 54775 2756 02.11.2008 Balboa New system at v31 54775 2756 04.24.2008 Balboa Update to v32 54775 2756 06.04.2008 Balboa Pages 1 & 19: AX40 panel = PN 55487 54775 2756 09.10.2008 Balboa New Config file - Change expander board 54775...
-
Page 3: Power Requirements
Basic System Features and Functions Power Requirements Internal Reference 53857-03 . . . EL8000 Base System 53914 ..X-Mount M Kit 53680 ..X-P632 Expander System Outputs 54530 ..ADCM Splitter Kit Setup 1 (As Manufactured) Setup 2 TV Lift output... - Page 4 Persistent Memory and Powering Up Any time you change DIP Switches or Software Configuration Settings that message on power up: affect parameters the user can change (any filter settings, set temperature If “ ” appears before (and instead of) “ ”...
- Page 5 Wiring Configuration and DIP Settings Setup 1 (As Manufactured) BARCODE F5 FUSE 20A 250V TRC6 FUSE 3A 250V 12VAC-B BLK-A 12VAC-B BLK-A 120V Fiber FUSE 30A CLASS G 12V Light WHT AC (120V) J27 J35 J43 J23 J32 240V EXP I/O Trans REMOTE FUSE 1/2A 250V...
- Page 6 Wiring Configuration and DIP Settings Setup 2 BARCODE F5 FUSE 20A 250V TRC6 FUSE 3A 250V 12VAC-B BLK-A 12VAC-B BLK-A 120V Fiber FUSE 30A CLASS G 12V Light WHT AC (120V) J27 J35 J43 J23 J32 240V EXP I/O Trans REMOTE FUSE 1/2A 250V J66 J65 J68...
- Page 7 DIP Switches Definitions WARNING: Setting DIP switches incorrectly may cause abnormal system behavior and/or damage to system components. Refer to Switchbank illustration on Wiring Configuration page for correct settings for this system. Contact Balboa if you require additional configuration pages added to this tech sheet. DIP Switchbank A Key ....
-
Page 8: Jumper Definitions
Jumper Definitions WARNING: Setting DIP switches incorrectly may cause abnormal system behavior and/or damage to system components. Refer to Switchbank illustration on Wiring Configuration page for correct settings for this system. Contact Balboa if you require additional configuration pages added to this tech sheet. Jumpers Key . -
Page 9: Software Configuration Settings
Software Configuration Settings OEM Setting (Green circle) Program Filter Cycles by Duration n = Start and stop times; for time capable panels. Y = Duration; for non-time capable panels = 1 DIP Switch Pump 1 in Filter (w/Circ Pump) Y (This feature is used in Circ Mode only.) Allows Pump 1 Low to operate in Filter Cycles to add extra filtration. - Page 10 Software Configuration Settings Continued Pump 6 Speeds 0 = Disabled; 1 = On/Off; = 1 DIP Switch Blower Speeds 0 = Disabled; 1 = On/Off; 2 = 2 speeds; 3 = 3 speeds; = 2 DIP Switch Separate Spa Light Buttons See Chart Below (This feature applies when n = No Spa light button, Spa Light output is on with Fiber;...
- Page 11 Software Configuration Settings Continued Ozone Operation A= Operates with Heater Pump (Pump 1 Low or Circ Pump); F = Operates in Filter and Cleanup Cycles only; = 1 DIP Switch Ozone Suppression n = No Suppress; Y = 1-hour suppress on button press; = 1 DIP Switch Ozone Icon n = Disabled;...
- Page 12 Software Configuration Settings Continued Lowest Set Temperature* 8 = 80˚F/26.0˚C; 7 = 70˚F/21.0˚C *Setting LS at 7 and Fr at 5 will cause a CFE error. Default Set Temperature** 5 = 95˚F/35.0˚C; 6 = 96˚F/35.5˚C; 7 = 97˚F/36.0˚C; 8 = 98˚F/36.5˚C; 9 = 99˚F/37.0˚C; 0 = 100˚F/38.0˚C; 1 = 101˚F/38.5˚C;...
- Page 13 Software Configuration Settings Continued Filter 1 Start Hour (Set 2)* 0 1 2 3 4 5 6 7 8 9 A b C d E F g H J L n o P r Filter 1 Duration (Set 2)* 0 1 2 3 4 5 6 7 8 9 A b C d E F g H J L n o P r Filter 2 Start Hour (Set 2)* 0 1 2 3 4 5 6 7 8 9 A b C d E F g H J L n o P r Filter 2 Duration (Set 2)*...
- Page 14 Software Configuration Settings Continued Remote Button 1 (Bank A) 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Remote Button 2 (Bank A) 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Remote Button 3 (Bank A) 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Remote Button 4 (Bank A)
- Page 15 Software Configuration Settings Continued ML90x Custom Button 1 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML90x Custom Button 2 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML90x Custom Button 3 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML90x Custom Button 4...
- Page 16 Software Configuration Settings Continued ML70x Custom Button 1 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML70x Custom Button 2 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML70x Custom Button 3 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML70x Custom Button 4...
- Page 17 Software Configuration Settings Continued ML40x/ML2xx Custom Button 1 2 3 4 5 6 b g F E o t d P n A r O H 9 L 8 7 ML40x/ML2xx Custom Button 2 2 3 4 5 6 b g F E o t d P n A r O H 9 L 8 7 ML40x/ML2xx Custom Button 3 2 3 4 5 6 b g F E o t d P n A...
- Page 18 Ozone Connections Ozone Connector Voltage: The EL circuit board is factory configured to deliver a preset voltage (120V or 240V) to the on-board ozone connector (J4). See the ratings table on the wiring diagram attached to the cover of the enclosure for the configured voltage. For 240V output W13 connects to Red AC and for 120V output W13 connects to White AC.
-
Page 19: Panel Configurations
Panel Configurations Note: RTC jumper (J91) on Main PCBA must be OFF (1 pin only) Time Warm Jets 1 Jets 1 Jets 2 Jets 3 Jets 3 Jets 3 Jets 4 Mode/Prog Cool Invert Invert Fiber Fiber Light Option ML900 PN 54589 with Overlay PN 11806 Connects to Main Panel terminal J70, J71, J72, or J73 Jets 1...
