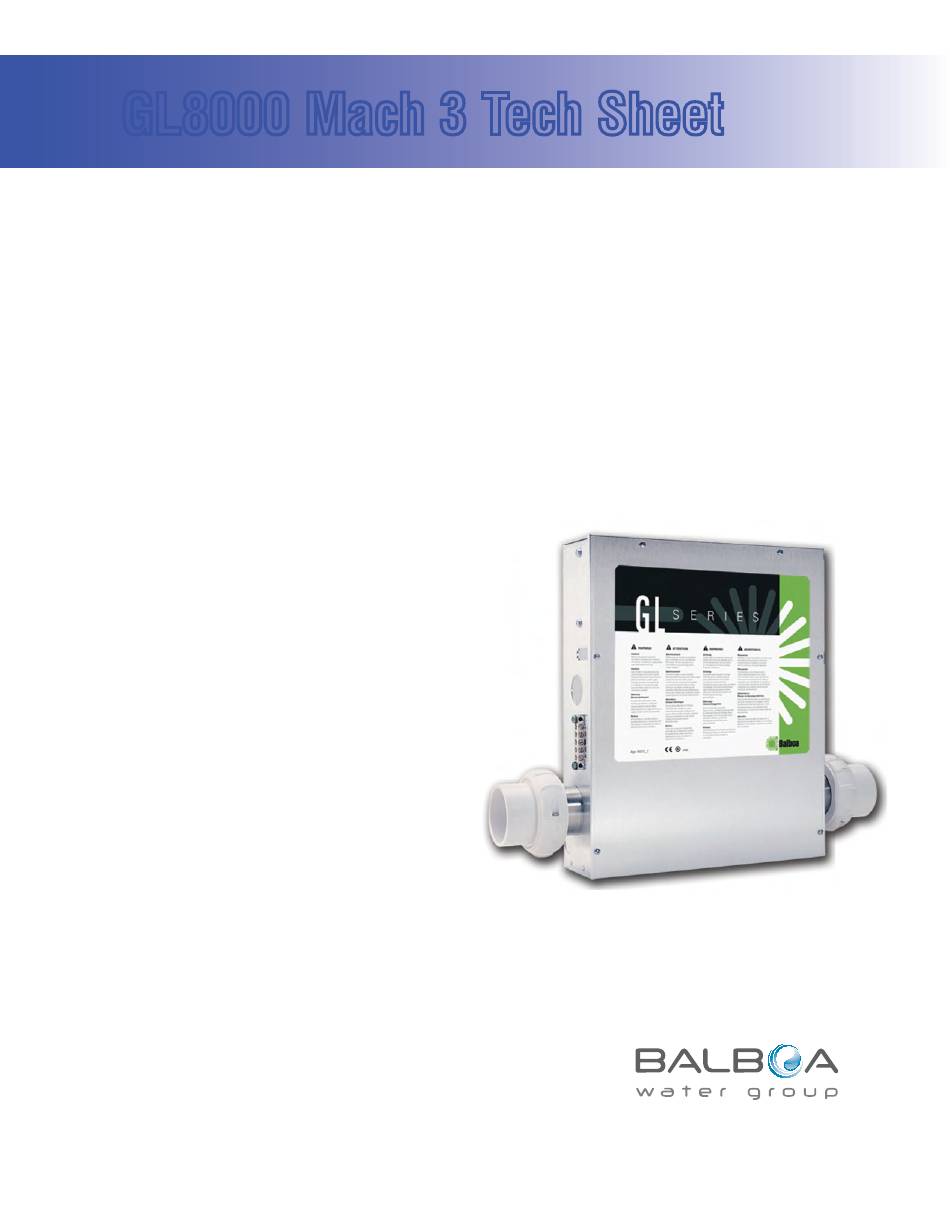

GL8000 Mach 3 Tech Sheet
Balboa Instruments
System PN 55470-01
System Model # GL8-GL8000M3-RCA-3.0
Software Version # 32
EPN # 2833
Base PCBA – PN 53860-04
PCB GL8000 – PN 22960 Rev B or C
HEX File – 10013932
Base Panels
ML900 – PN 52654-01
Template used: 40598-v32_A.pdf 04/15/2008
55470-01_97_A.pdf 05/06/2008
Page 1
55470-01_97_A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Balboa Instruments GL8000 Mach 3
Summary of Contents for Balboa Instruments GL8000 Mach 3
- Page 1 GL8000 Mach 3 Tech Sheet Balboa Instruments System PN 55470-01 System Model # GL8-GL8000M3-RCA-3.0 Software Version # 32 EPN # 2833 Base PCBA – PN 53860-04 PCB GL8000 – PN 22960 Rev B or C HEX File – 10013932 Base Panels ML900 –...
- Page 2 System Revision History System PN EPN Date Requested By Changes Made 55470 2817 04.07.2008 Balboa New system 55470-01 2833 05.06.2008 Balboa Software update to v32 Page 2 55470-01_97_A...
- Page 3 Basic System Features and Functions Power Requirements Single Service [3 wires (line, neutral, ground)] Dual Service [5 wires (line 1, neutral 1, line 2, neutral 2, ground)] Setup 1 (As Manufactured) Audio\Visual (Stereo) Optional Devices Additional Options F4 F3A 250V Connects to Main Panel terminal J70, J71, J72, or J73 Connects to Remote terminal J20 Connects to terminal J4...
- Page 4 Persistent Memory and Powering Up Any time you change DIP Switches or Software Configuration Settings that message on power up: affect parameters the user can change (any filter settings, set temperature If “ ” appears before (and instead of) “ ”...
- Page 5 Reconnect terminal to J90 after (Stereo) successful completion of HiPot test. Balboa F5, F10A 250V BALBOA INSTRUMENTS, INC. GL8000 Mach 3 COPYRIGHT 2006 MADE IN U.S.A. P/N 22960_C F4, F3A 250V BARCODE F6, T30A 480V F2, T 0.5A 250V...
- Page 6 DIP Switches and Jumper Definitions WARNING: Setting DIP switches incorrectly may cause abnormal system behavior and/or damage to system components. Refer to Switchbank illustration on Wiring Configuration page for correct settings for this system. Contact Balboa if you require additional configuration pages added to this tech sheet. DIP Switchbank A Key Table 1 # of Hi-Speed...
- Page 7 Electrical Service Configuration Options For DIP Switch Configured System Single Service (1 x 16 Amp or 1 x 32 Amp) F2 T 0.5A 250V This option is configured and shipped as the default. For 1 x 32 Amp Service: DIP Switch A2 and A3 can be ON For 1 x 16 Amp Service: DIP Switch A2 and A3 must be OFF HTR2...
- Page 8 Flat sides of sockets as shown Balboa Line - Black or Brown conductor Not used Neutral - White or Blue conductor Not used BALBOA INSTRUMENTS, INC. GL8000 Mach III COPYRIGHT 2006 MADE IN U.S.A. P/N 22960 REV B Page 8...
- Page 9 Panel Configurations Note: RTC jumper (J91) on Main PCBA must be OFF (1 pin only) Time Warm Jets 1 Jets 1 Jets 2 Jets 3 Jets 3 Jets 3 Option Option Option Option Mode/Prog Cool Invert Invert Fiber Fiber Light Blower Blower ML900...
