Summary of Contents for Balboa Instruments EL2001 Mach 3

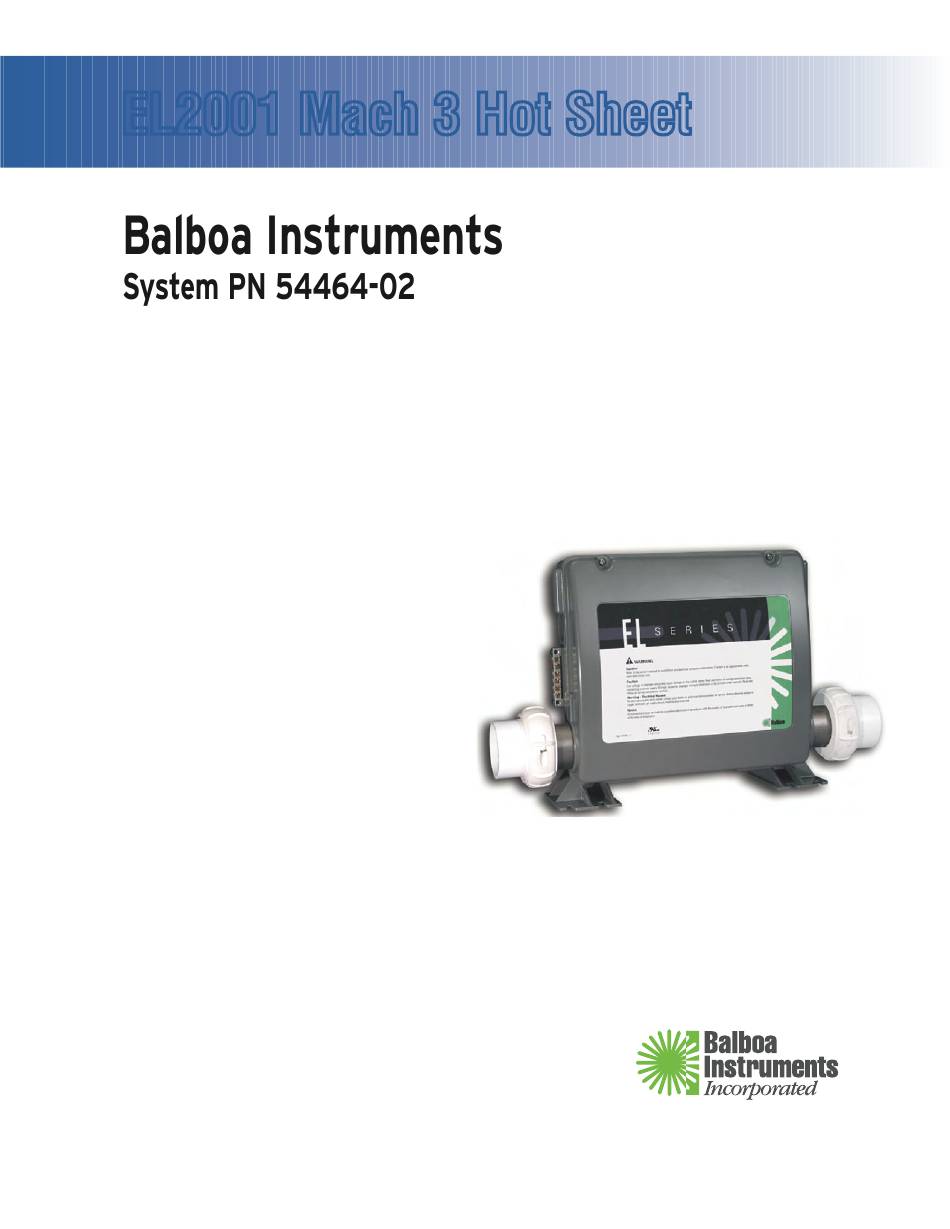

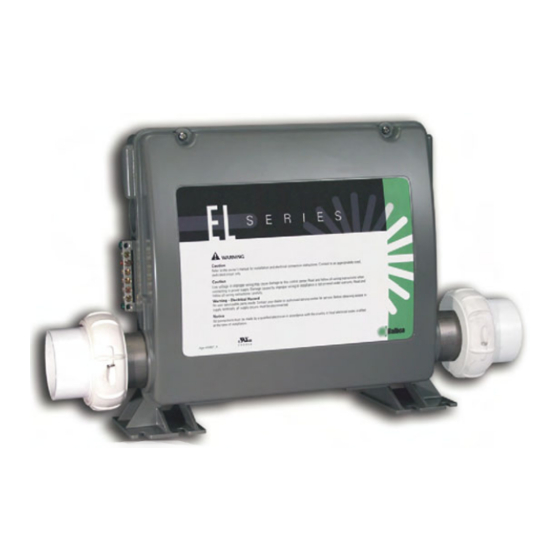

- Page 1 EL2001 Mach 3 Hot Sheet System Model # E2P-EL2001M3-YCAJ Software Version # 28 EPN # 2130 Base PCBA - PN 53974-03 PCB EL2000 – PN 22896 Rev B Base Panels ML900 – PN 52654 ML700 – PN 52649 ML400 – PN 52684 Template used: 40573-v28_A.pdf 11/22/2006...
- Page 2 Basic System Features and Functions Power Requirements • 240VAC, 60Hz, 48A, Class A GFCI-protected service (Circuit Breaker rating = 60A max.) • 4 wires (hot, hot, neutral, ground) System Outputs Setup 1 (As Manufactured) • 240V Pump 1, 2-Speed • 240V Pump 2, 2-Speed •...
- Page 3 Persistent Memory and Powering Up Any time you change DIP Switches or Software Configuration Settings that message on power up: affect parameters the user can change (any filter settings, set temperature If “ ” appears before (and instead of) “ ”...
- Page 4 • 120V Ozone • 240V 4.0kW Heater • 240V Blower • 12V Spa Light • ML900, ML700, or ML400 Main Panel BALBOA INSTRUMENTS, INC. MADE IN U.S.A. BARCODE Use X-B Expander Use AUX Board EL2000 TC MACH III COPYRIGHT 200...
- Page 5 DIP Switches and Jumpers Definitions WARNING: • Setting DIP switches incorrectly may cause abnormal system behavior and/or damage to system components. • Refer to Switchbank illustration on Wiring Configuration page for correct settings for this system. • Contact Balboa if you require additional configuration pages added to this hot sheet. DIP Switchbank A Key .
-
Page 6: Configuration Options
Configuration Options BALBOA INSTRUMENTS, INC. MADE IN U.S.A. BARCODE EL2000 TC MACH III COPYRIGHT 2005 FUSE 10A 250V P/N 22896 REV B FUSE 30A CLASS G BLK AC WHT AC FUSE J66 J65 J23 J19 3A 250V PANEL 12VAC FUSE 0.3A 250V... -
Page 7: Expander Options
Expander Options X-P231 PN 53681 F10A 250V P/N 22909 REV B F30A 480V PN 53310 PN 53681 Used for a Blower output ONLY X-P231 when Pump 2 at J5 (7-B) is a 2-speed pump. Can replace the X-P in cases where branch circuit •... - Page 8 Use this slot for the leftover White conductor Common - Install the Red conductor here for 240V ozone Ground (Green) conductor W13 wire determines voltage BALBOA INSTRUMENTS, INC. MADE IN U.S.A. EL2000 TC MACH III COPYRIGHT 2005 FUSE 10A 250V P/N 22896 REV B...
-
Page 9: Panel Configurations
Panel Configurations Time Warm Jets 1 Jets 1 Jets 2 Jets 3 Jets 3 Jets 3 Option Option Option Option Mode/Prog Cool Invert Invert Fiber Fiber Light Blower Blower ML900 PN 52654 with Overlay PN 40026 • Connects to Main Panel terminal J70, J71, or J72 •...
