Torin BIG RED T71001L Owner's Manual

10-ton hydraulic ram system
Hide thumbs

Advertisement

Table of Contents

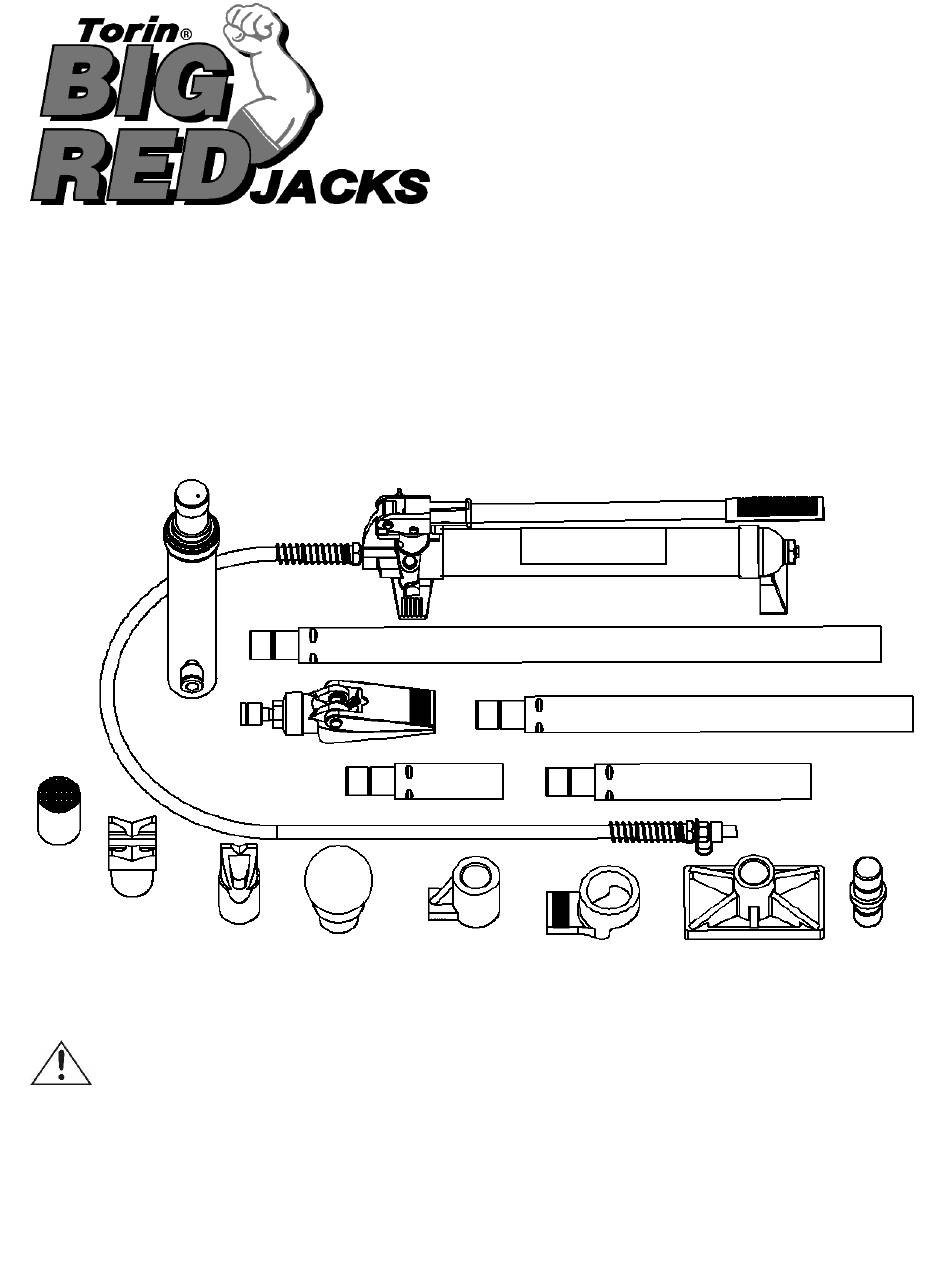

OWNER'S MANUAL
T71001L
10-TON HYDRAULIC RAM SYSTEM
WARNING:
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-888-448-6746, 8 a.m.- 5 p.m., PST, Monday-Friday.
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIG RED T71001L and is the answer not in the manual?

Questions and answers

Related Manuals for Torin BIG RED T71001L

Summary of Contents for Torin BIG RED T71001L

  • Page 1 OWNER’S MANUAL T71001L 10-TON HYDRAULIC RAM SYSTEM WARNING: Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-448-6746, 8 a.m.- 5 p.m., PST, Monday-Friday. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

  • Page 2: Owner / User Responsibility

    IMPORTANT Before You Begin Register This Product. For future reference, record the model name, model number, date of manufacture and purchase date of this product. You can find this information on the product. Model Name _________________________ Model Number _________________________ Date of Manufacture _________________________ Date of Purchase _________________________...

  • Page 3: Intended Use

    INTENDED USE Portable Power Kits are designed to be used for pushing, spreading, and pressing of vehicle body panels as well as various component parts and assemblies. TECHNICAL SPECIFICATIONS Description Application Manual Capacity 10 Ton Operating PSI 8,939 Max. Lift Height 20-7/8 in.

  • Page 4: Important Safety Considerations

    IMPORTANT SAFETY CONSIDERATIONS PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFETY INSTRUCTIONS AND WARNING. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE OF WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE TO PROPERTY AND/OR SERIOUS PERSONAL INJURY.
  • Page 5  WARNING: To reduce the risk of personal injury and/or property damage, ensure that the rated working pressure of each pressurized attachment be equal to or greater than the rated working pressure developed by the hydraulic pump.  Always check connections before using. Alteration of these products is strictly prohibited. Use only those adapters and attachments provided and approved by the manufacturer。...

  • Page 6: Safety Markings

    GENERAL SAFETY RULES  Save these instructions.  For your safety, read, understand, and follow the information provided with and on this product before using.  The owner and/or operator of this equipment shall have an understanding of safe use/operating procedures before attempting to use.
  • Page 7 ASSEMBLY To assemble Hydraulic Ram, Pump Unit, and Attachments 1. Unscrew and save the End Plugs located on the 4. To attach the Rubber Head, the Extension ends of the Hose and Hydraulic Ram. Bars, the Male Connector, and the Flat Base to the Hydraulic Ram.
  • Page 8 SYSTEM AIR PURGE PROCEDURE Perform the following Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a result of product shipment and handing. This step is to be completed without any load pressure. 1.

  • Page 9: Before Use

    BEFORE USE 1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product and the hazards associated with its improper use. 2. Perform the air purge procedure. (See previous instructions for system purge procedure.) 3.
  • Page 10 Example: To Repair Frame Damage 1. Determine which direction the frame needs to straighten. 2. Remove any obstructions that could be damaged or are in the way. 3. Connect the Flat Base to the stationary side of the Hydraulic Ram and connect the appropriate attachment to the pushing end of the Stroke Ram.
  • Page 11 Example: To Repair Sheet Metal Damage 1. Determine which direction the body panel should be moved. 2. Remove any obstructions that could be damaged or are in the way. 3. Connect the appropriate attachments to the Hydraulic Ram. Note: When repairing larger body panel dents such as a piece of sheet metal, dented door, fender or suggested use is the Rubber Head.
  • Page 12 Example: To Use the Spreader Wedge 1. Determine which direction part needs to be bent. 2. Remove any obstructions that could be damaged or are in the way. 3. Place Spreader Wedge so that the hinged arm is resting against the part to be moved and the stationary arm is resting against a non-movable base.

  • Page 13: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load. Inspection You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components function before each use.
  • Page 14 TO ADD OIL TO HYDRAULIC PUMP UNIT: TO REPLACE OIL TO HYDRAULIC PUMP UNIT : After extensive use, the hydraulic oil supply 1. Set Pump Unit flat on a level surface. should be replaced to ensure longer equipment life. 1. Set Pump Unit upright on a level surface. Remove the screw with its attached dipstick.
  • Page 15 ADDITIONAL WARNINGS:  DO NOT USE MOTOR OIL IN THE JACK.  ONLY USE ANTI-FOAMING JACK OIL.  ALWAYS USE A GOOD GRADE HYDRAULIC JACK OIL.  DO NOT USE HYDRAULIC BRAKE FLUID, ALCOHOL, GLYCERINE, DETERGENT, MOTOR OIL OR DIRTY OIL. ...

  • Page 16: Troubleshooting

    TROUBLESHOOTING Ram won’t Ram won’t Ram won’t Poor CAUSES AND SOLUTIONS won’t lift maintain lower after extend to performance load hold unloading full stroke      Releases valve not tightly closed. Firmly close release valve.   ...

  • Page 17: Assembly Diagram

    ASSEMBLY DIAGRAM ASSEMBLY PARTS LIST Index # Description Part Number Qty. ” ”) Extension Tube QF10.10( Extension Tube 18” QF10.10(18”) Extension Tube 10” QF10.10(10”) Extension Tube 5” QF10.10(5”) Pump Unit QF10.0(PUMP) Ram Assembly QF10.0(RAM) Spreader(1000lb.Capacity) QF4.7 Serrated Saddle QF10.7a Combination Head QF10.6 Wedge Head(offset) QF10.5...

  • Page 18: Pump Assembly

    PUMP ASSEMBLY...

  • Page 19: Pump Assembly Parts List

    PUMP ASSEMBLY PARTS LIST Index # Description Part Number Qty. Base QF4-4 Filter QF4-16 Seal QF4-9 Reservoir QF10-2 Top Nut QF4-10 Pump Foot QF4-11 Nut M18 GB6172-86 O-Ring 7.7X1.9 QLQ2.1-17 Dipstick QF10.11 Ball Φ5 GB308-84 Ball Φ8 GB308-84 Spring QF4-13 Screw M10X1 QF4-12 Release Valve Stem...
  • Page 20 HYDRAULIC CYLINDER RAM ASSEMBLY...
  • Page 21 HYDRAULIC CYLINDER RAM PARTS LIST Index # Description Part Number Qty. Cylinder QF10.1 Retainer Nut M48X1.5 QF10-14 Protecting Cap QF10-15 Spring T71003LT-5 Nut M6 GB41-86 Screw M6X30 GB70-85 Ring Snap T71003LT-8 Dust Cup QF4-34 Y-Ring TF1008G-10 Seal Cap TF1008G-11 Piston Cup T71003LT-7 O-Ring 24.5X3.1 QF10-9...

  • Page 22: Replacement Parts

    THE DURATION OF ANY AND ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. _____________________________________________________________________________ Distributed by Torin Jacks, Inc. 4355 E. Brickell St. Ontario, CA 91761 USA...
