Hooking Up the Components

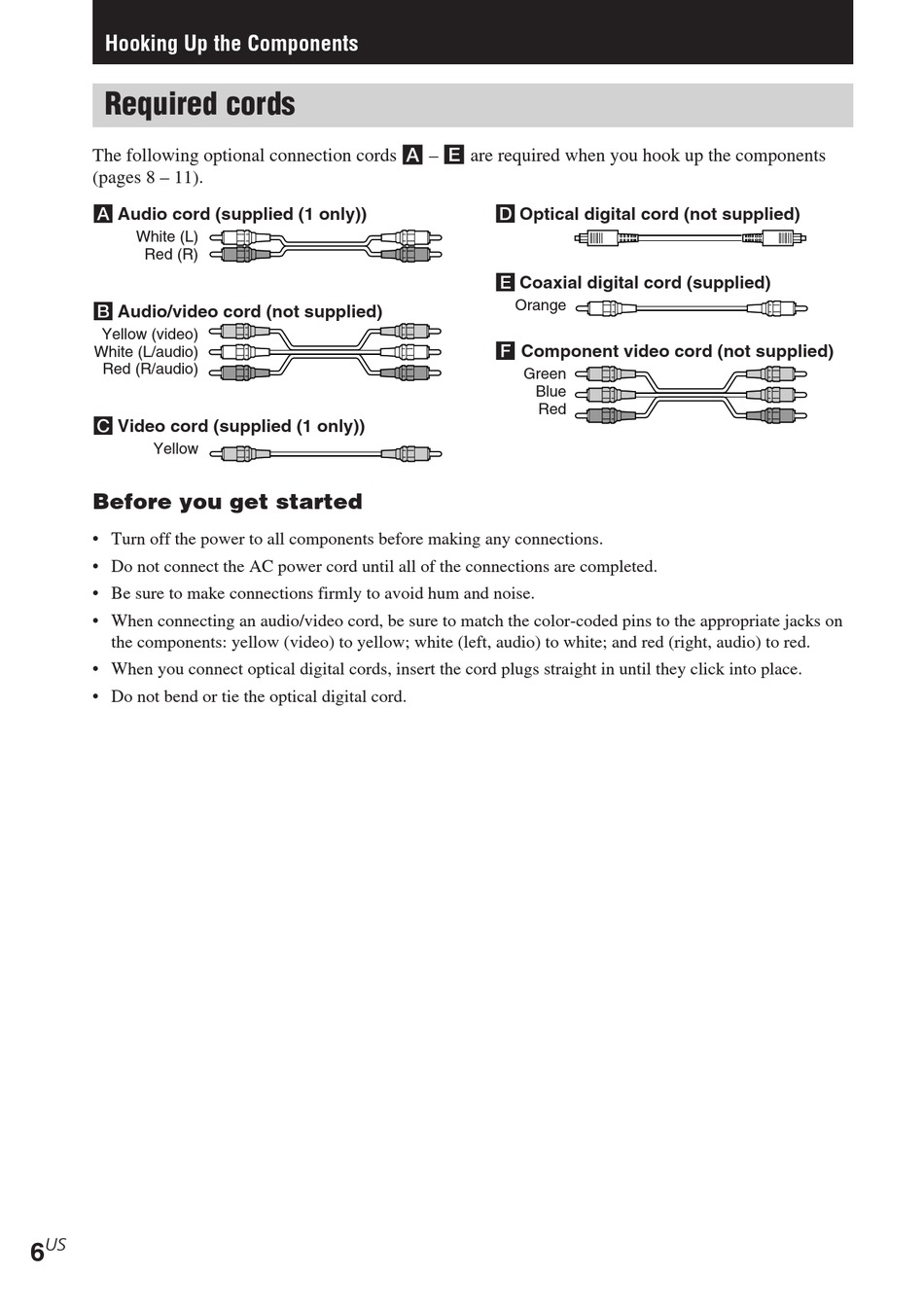

Required cords

The following optional connection cords A – E are required when you hook up the components
(pages 8 – 11).
A Audio cord (supplied (1 only))
White (L)
Red (R)
B Audio/video cord (not supplied)
Yellow (video)
White (L/audio)
Red (R/audio)
C Video cord (supplied (1 only))
Yellow
Before you get started
• Turn off the power to all components before making any connections.
• Do not connect the AC power cord until all of the connections are completed.
• Be sure to make connections firmly to avoid hum and noise.
• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on
the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.
• When you connect optical digital cords, insert the cord plugs straight in until they click into place.
• Do not bend or tie the optical digital cord.
US
6
D Optical digital cord (not supplied)
E Coaxial digital cord (supplied)
Orange
F Component video cord (not supplied)
Green
Blue
Red
