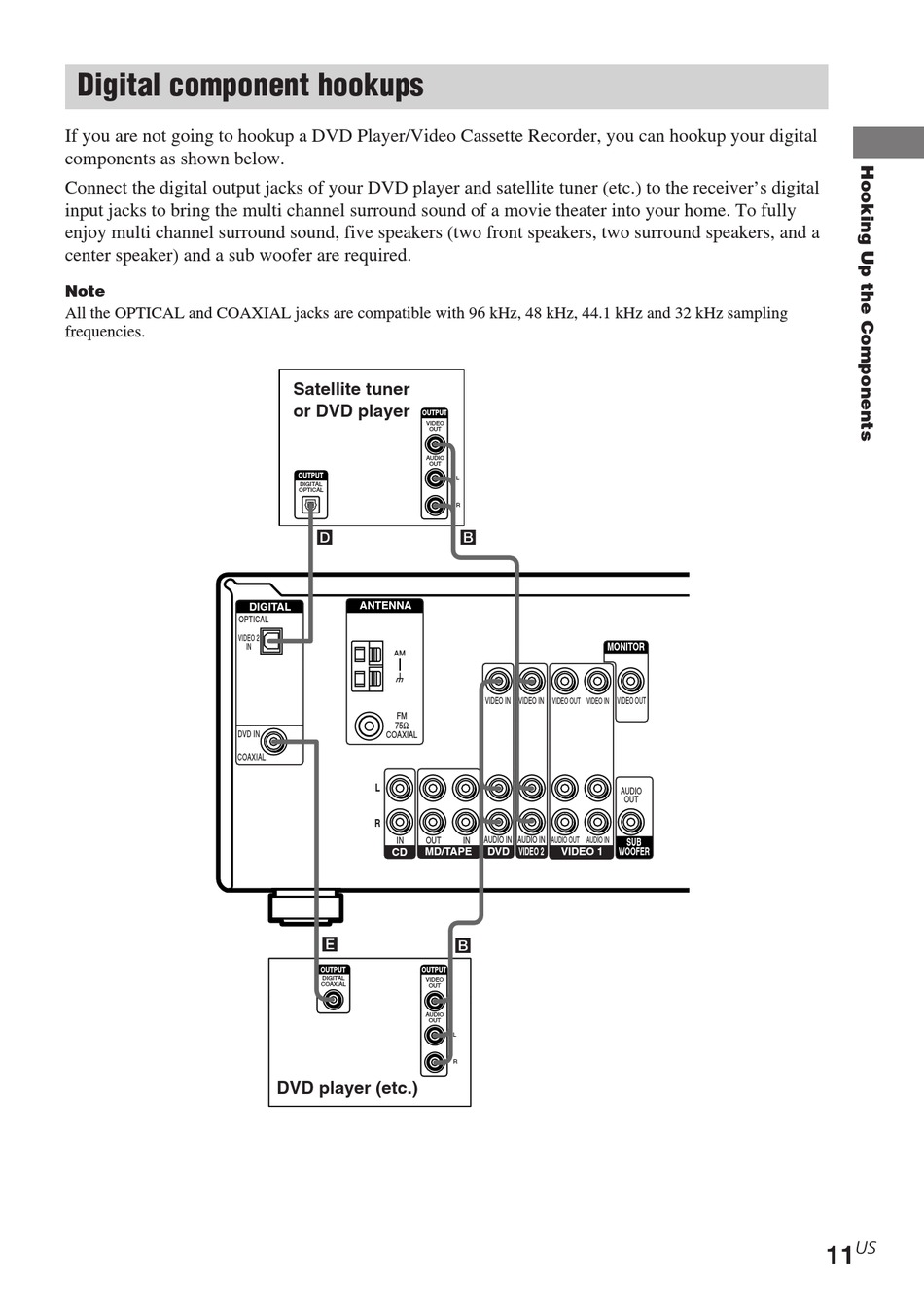

Digital component hookups
If you are not going to hookup a DVD Player/Video Cassette Recorder, you can hookup your digital
components as shown below.
Connect the digital output jacks of your DVD player and satellite tuner (etc.) to the receiver's digital
input jacks to bring the multi channel surround sound of a movie theater into your home. To fully
enjoy multi channel surround sound, five speakers (two front speakers, two surround speakers, and a
center speaker) and a sub woofer are required.
Note
All the OPTICAL and COAXIAL jacks are compatible with 96 kHz, 48 kHz, 44.1 kHz and 32 kHz sampling
frequencies.
OPTICAL
VIDEO 2
DVD IN
COAXIAL
Satellite tuner
or DVD player
OUTPUT
DIGITAL
OPTICAL
D
ANTENNA
DIGITAL
IN
AM
y
FM
75Ω
COAXIAL
L
R
IN
CD
E
OUTPUT
DIGITAL
COAXIAL
DVD player (etc.)
OUTPUT
VIDEO
OUT
AUDIO
OUT
L
R
B
VIDEO IN VIDEO IN
VIDEO OUT VIDEO IN
AUDIO IN AUDIO IN
OUT
IN
AUDIO OUT AUDIO IN
MD/TAPE
DVD
VIDEO 2
VIDEO 1
B
OUTPUT
VIDEO
OUT
AUDIO
OUT
L
R
MONITOR
VIDEO OUT
AUDIO
OUT
SUB
WOOFER
US
11
