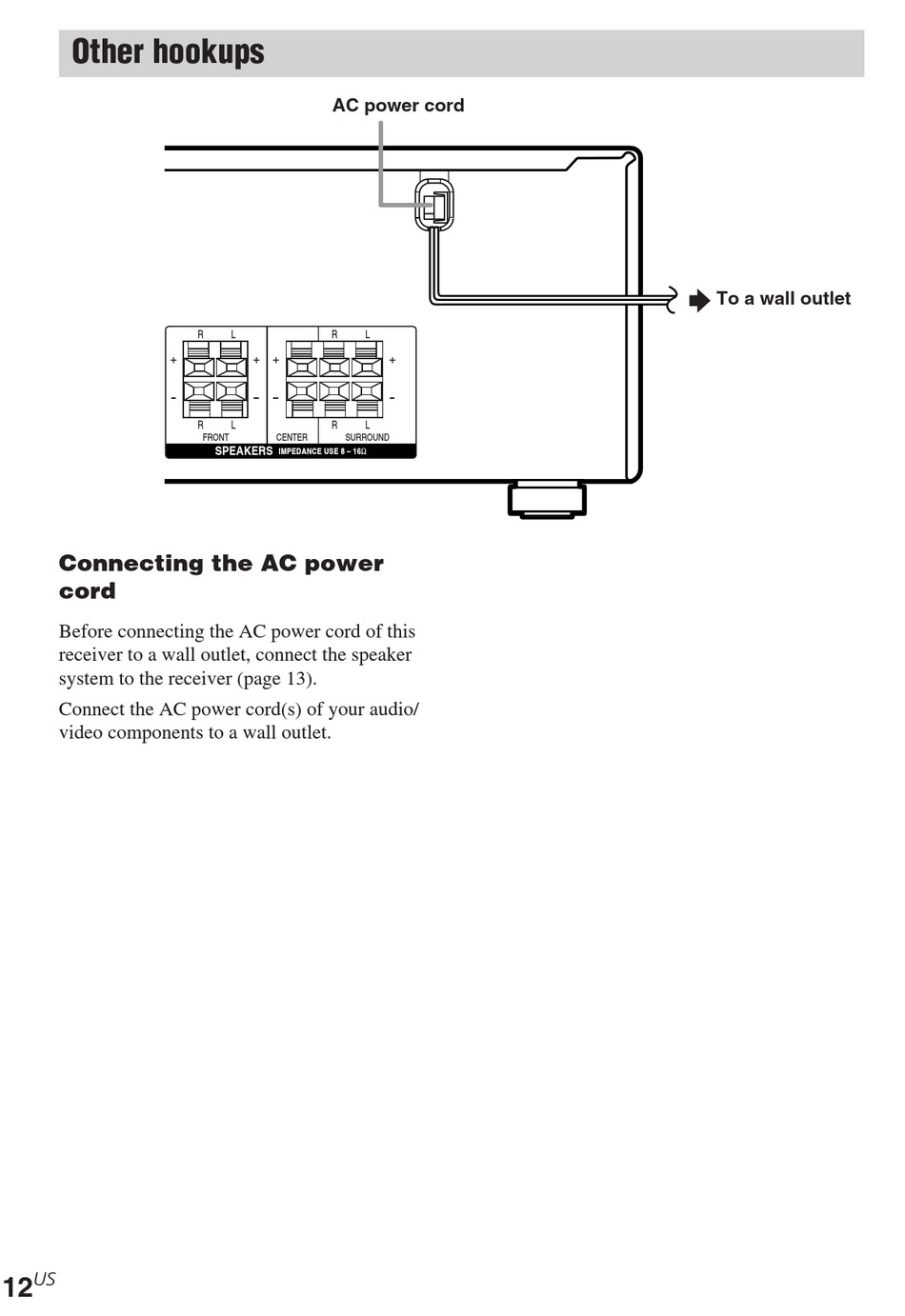

Other hookups
Connecting the AC power
cord
Before connecting the AC power cord of this
receiver to a wall outlet, connect the speaker
system to the receiver (page 13).
Connect the AC power cord(s) of your audio/
video components to a wall outlet.
US
12
AC power cord
R
L
R
L
R
L
R
L
FRONT
CENTER
SURROUND
SPEAKERS
IMPEDANCE USE 8 – 16Ω
b
To a wall outlet
