STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA
1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:
a. Enter the camera's OSD menu. You can access it locally from
using the camera's joystick in the body of the camera, or from a
recorder supporting UTC communication. Go to SETUP >
OUTPUT > ANALOG MODE.
b. Set the camera's analog signal output from the following
options:
• HD-A: supports 5MP/1944p @ 20fps and 12.5fps, 4MP/1440p
@ 30fps, 2.1MP/1080p @ 30fps and 720p @ 30fps.
• HD-T: supports 5MP/1944p @ 20fps, 4MP/1440p @ 30fps,
2.1MP/1080p @ 30fps and 720p @ 30fps.
• HD-C: supports 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
and 720p @ 30fps.
• CVBS: supports up to 960H @ 30fps
c. Change CONFIRM to ON to save the changes.
d. Go to the EXIT menu and select SAVE&EXIT to save all changes.
The camera signal automatically.

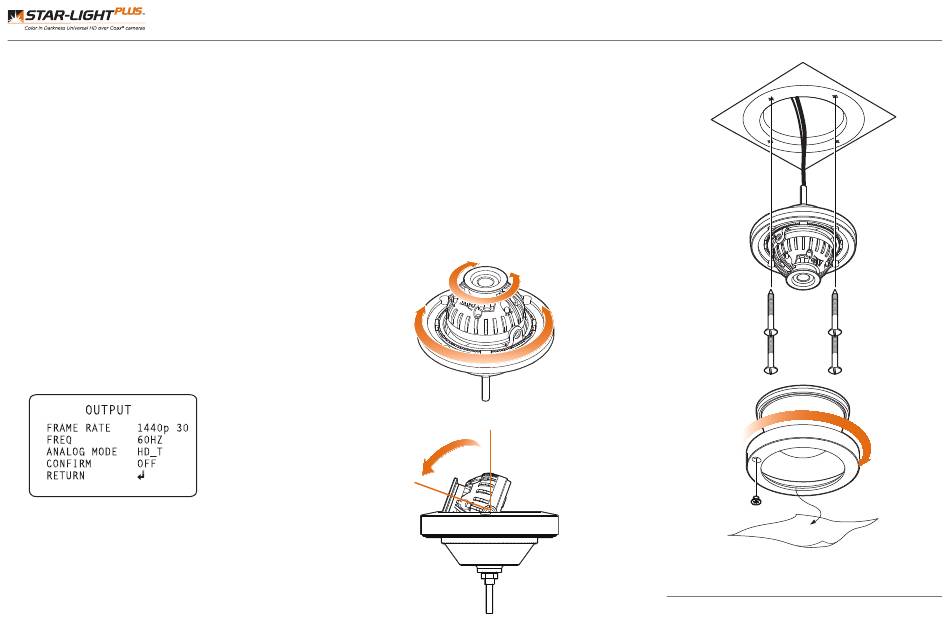

STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected, use the screws included
with the camera to properly mount and secure the camera to the
mounting surface.
2. Adjust the camera's pan, tilt and position to achieve the desired
view. The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 70°
Rotation: 0° ~ 360°
3. Once the installation is complete, remove the protective film from
the camera's dome cover. To remove it, loosen the screw on the
decorative ring and rotate the ring counter-clockwise to remove.
Rotation 360°
Panning 360°
Tilting 70°
