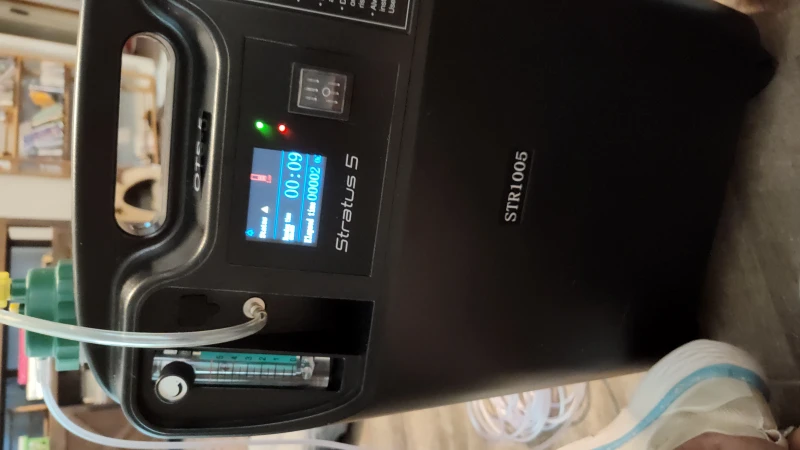

Summary of Contents for 3B Medical Stratus 5
- Page 1 USER MANUAL O X Y G E N C O N C E N T R A T O R www.3Bproducts.com CE 0123...
-
Page 2: Symbol Key
v2.1 Symbol Key MARK DEFINITION Power on Power off Follow Instruction for Use No smoking Caution, consult accompanying documents. Class Ⅱ (Double Insulated) Type BF Applied Part CE certification mark 0123 AC Power Stacking Limit by Number This Way Up Fragile, handle with care Keep dry Temperature limit... - Page 3 STR1005 User Manual...
-
Page 4: Special Notes
• If you need assistance with this manual, Please contact your local DME or home health provider • The Stratus 5 is a prescription device. Use only the liter setting prescribed for you. • It is always recommended for critically ill patients to have a backup oxygen source in case of malfunction. - Page 5 • The Stratus 5 should not be turned on with the flow meter turned off or less than “0”. • The Stratus 5 will make an exhaust sound while in operation. • The Stratus 5 will vent hot air from the bottom of the unit; please do not block the vent. Blocking the vent increases risk of fire.
- Page 6 • If you feel your oxygen therapy is not sufficient please contact your physician. DO NOT attempt to change your prescribed liter flow. • The power plug must be unplugged while the Stratus 5 concentrator is not in use. • Contact the physician immediately, if the patient or caregiver finds insufficient oxygen supply.
- Page 7 • Do not touch the oxygen concentrator while wet. Do not use or store this oxygen concentrator near liquids or other electrically conductive materials. • Do not touch the Stratus 5 if it should fall into water or other conductive liquid. If this should occur, unplug the power cord immediately.
-
Page 8: Table Of Contents
• About Stratus 5 ........ -
Page 9: Chapter 1: Introduction
The device is not intended to be life supporting or life sustaining. About Stratus 5 The Stratus 5 produces concentrated oxygen from room air for delivery to a patient requiring low flow oxygen therapy. The oxygen from the air is concentrated using a molecular sieve and a pressure swing adsorption process. -
Page 10: Accessories Equipment And Spare Parts
• Operating Temperature: 50-99° F • Operating Relative Humidity: 20%RH-65%RH • Operating Pressure atmosphere: 80kPa ~ 101kPa • The operating environment should be dry and well ventilated. The Stratus 5 should never be run in environments that are dusty. Avoid electromagnetic interference when possible... -
Page 11: Storage And Transportation Environment
If the grid is unstable, please install a voltage regulator before use. • The optimal temperature of the environment for Stratus 5 is 50-99°F. Below 50°F, compressor start-up may be difficult. Above 99°F, the compressor may overheat and shorten the service life of the compressor. -
Page 12: Parameter Configuration
v2.1 Parameter Configuration Model STR1005 Rated power (W) 120V ± 12V 60HZ ± 1HZ Voltage Flow rate (L/min) 0.5~5 Concentration (Rated flow) 93%±5% Sound pressure level dB (A) ≤45 Sound power level dB (A) ≤55 Net weight (kg) 15.5 Dimension (mm) 390×230×600 Abnormal temperature alarm;... -
Page 13: Chapter 3: Operating Instructions
STR1005 User Manual Chapter 3: Operating Instructions Warning: Do not use extension cords or electrical adapters. 1. Select a location that allows the concentrator to draw in room air without being restricted. Make sure that the device is at least 12 inches away from walls, furniture, curtains that could impede adequate airflow to the device. - Page 14 III). Install the humidifier with water in the hook and loop fastener on the top of the Stratus 5 according to the diagram. IX). Secure the humidifier using the humidifier band. X). Connect the PVC hose to the oxygen outlet and humidifier inlet according to the diagram.
-
Page 15: Chapter 4: Cleaning And Maintenance
1. The air intake filter should be cleaned weekly. If environmental conditions are less than optimal, clean more frequently 2. Cleaning steps are as follows: Remove the air intake cover on the side of the Stratus 5 and take out the sponge mesh filter. (Left side of the body) (sponge mesh filter) Rinse the sponge mesh thoroughly using clean water, then allow to air dry completely. -
Page 16: Chapter 5: Alerts And Troubleshooting
1. Wash your cannula daily. Wash with mild soap and water and allow to air dry 2. Your cannula should be replaced once a month 3. To clean the body of the Stratus 5, wipe with a damp towel, mild soap may be used. Do not submerge the Stratus 5. -
Page 17: Lcd Indication
STR1005 User Manual LCD Indication Loudspeaker Visualization Alarm System high Temperature Red LED illuminates Block the air Less than High temp rise abnormal continuously and outlet of the 1 minute the Audible Alarms oxygen is beeping quickly. concentrator, The device is not and alarm after operating. -
Page 18: Troubleshooting Guide
v2.1 Current visualization “00:00” working time Accumulate visualization 00000 working hours _ _ _ _ Power outage Audible Alarm is Unplug the alarm sounding continuously. power plug And the sound level is while in operation 60~80dB Note: 1. When troubleshooting multiple alarms, they will alternate. Alarms and indicators depend on the highest priority. -
Page 19: Chapter 6: Implementing Standards And Waste Disposal
The Stratus 5 series oxygen concentrators can only be connected to the cables mentioned in the attached documents. The use of accessories and cables outside the specified connections to the Stratus 5 series oxygen machine may result in increased emissions or reduced immunity of the Stratus 5 series oxygen generators. - Page 20 Solutions to common problems with electromagnetic compatibility: • Operate in strict accordance with the instructions of the Stratus 5 series oxygen concentrator instruction manual to ensure that the device is not subject to electromagnetic interference. • Keep other devices away from this device to reduce the effects of electromagnetic interference.
- Page 21 RF emissions CISPR 11 Group 1 Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions CISPR 11 Class B The device is suitable for use in all establishments, STR1005 User Manual Harmonic emissions including domestic establishments and those directly...
- Page 22 v2.1 v2.1 STR1005 User Manual ELECTROMAGNETIC IMMUNITY IEC 60601 COMPLIANCE LEVEL ENVIRONMENT- TEST TEST LEVEL GUIDANCE device be powered from an uninterruptible power supply or a battery. Power frequency magnetic Power frequency fields should be at levels (50/60 30 A/m 30 A/m characteristic of a typical magnetic field IEC...
-
Page 23: Appendix B: Circuit Diagram
STR1005 User Manual v2.1 STR1005 User Manual SEPARATION DISTANCE ACCORDING FREQUENCY RATED MAXIMUM TRANSMITTER (m) POWER OUTPUT OF 150kHz~80MHz 80MHz-800MHz 800MHz-2.5GHz TRANSMITTER (W) d=1.2 d=1.2 d=2.3 0.01 0.12 0.12 0.23 0.38 0.38 0.73 For transmitters rated at a maximum output power not listed above, the recommended separation distance (d) in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. -
Page 24: Chapter 7: Warranty Information
MEDICAL, INC. to the dealer. If the product fails to perform in accordance with the product specifications, 3B MEDICAL, INC. will repair or replace – at its option – the defective material or part. This warranty does not cover damage caused by accident, misuse, abuse, alteration, and other defects not related to material or workmanship.
Need help?
Do you have a question about the Stratus 5 and is the answer not in the manual?
Questions and answers
Where is the temperature sensor connector?
The exact location of the temperature sensor connector on the 3B Medical Stratus 5 is not provided in the given context.
This answer is automatically generated
I have a unit paid for by medicare. I know it must have a filter. how do I clean or change it. The unit is an OTS-5.
To clean the filter on a 3B Medical Stratus 5 unit:
1. Unplug the device before cleaning.
2. Remove the air intake cover on the left side of the unit.
3. Take out the sponge mesh filter.
4. Rinse the filter thoroughly with clean water.
5. Allow the filter to air dry completely.
6. Once dry, replace the filter and reattach the air intake cover.
Tip: Having a second filter allows for quicker replacement while the first one dries.
Do not use the filter if it is wet or damaged; replace it immediately. Clean the filter weekly, or more often if needed.
This answer is automatically generated
What is the wattage of the Stratus OTS 5 unit?
The wattage of the 3B Medical Stratus 5 unit is 320 watts (average).
This answer is automatically generated
How do I get a phone number for service
The service phone number for 3B Medical Stratus 5 is 1-833-360-2155.
This answer is automatically generated
How do you get it to continuously give oxygen and not do the bursts of air making a hissing like sound every few seconds?
The 3B Medical Stratus 5 provides continuous flow oxygen by default and does not have a burst or pulse setting. It delivers a steady flow of oxygen based on the flow rate set on the flow meter. To adjust the flow, use the oxygen flow meter to set the prescribed liters per minute (LPM).
This answer is automatically generated
How often do you need to replace the Hepa filter on the Stratus 5?
The HEPA filter on the 3B Medical Stratus 5 should be replaced every 10,000 hours and in between patients.
This answer is automatically generated
Low alarms beep after 5 minutes, even if O2 flow is increased have tried with and without humidity. Alarm continues to beep. Any suggestions.
The low alarms on the 3B Medical Stratus 5 could be caused by:
1. Low oxygen purity (less than 82%) — indicated by a red LED and continuous audible alarm.
2. Low flow rate — even if oxygen flow is increased, the output may still be too low due to a kinked cannula, blocked outlet, or loose humidifier cap.
3. Sensor failure — NTC temperature sensor error can trigger alarms.
4. Power supply issues — voltage below 85% of rated can cause malfunction.
Check for obstructions, tighten connections, and verify oxygen purity and power supply.
This answer is automatically generated
Low alarm comes on after 5 minutes and stays on even if O3 flow is increased.
The low alarm on a 3B Medical Stratus 5 could activate after 5 minutes, even when the O3 flow is increased, due to low oxygen output flow. This may be caused by:
- Blockage or restriction in the tubing or flow path
- Oxygen purity falling below 82%
- Sensor errors or malfunction
- High temperature or pressure abnormalities
Adjusting the flow-meter or checking for blockages may help. If the issue persists, contact a healthcare professional.
This answer is automatically generated
After 5 minutes low alarm is beeping. Have tried with and without humidity alarm continues to beep even if O2 is increased.
A low alarm beeping after 5 minutes on the 3B Medical Stratus 5 may indicate high temperature rise, high or low pressure, temperature sensor error, low flow, or low oxygen purity. The alarm is typically accompanied by a red or yellow LED and a sound level of 60–80 dB.
This answer is automatically generated
How do you open the filter door?
To open the filter door on the 3B Medical Stratus 5, remove the air intake cover located on the left side of the device. This gives access to the sponge mesh filter.
