AGS Merlin User & Installation Manual
Gas safety products
Hide thumbs
Also See for Merlin:
- User & installation manual (5 pages) ,
- Installation & operation manual (12 pages) ,
- Installation & operation instructions (16 pages)
Related Manuals for AGS Merlin
Summary of Contents for AGS Merlin

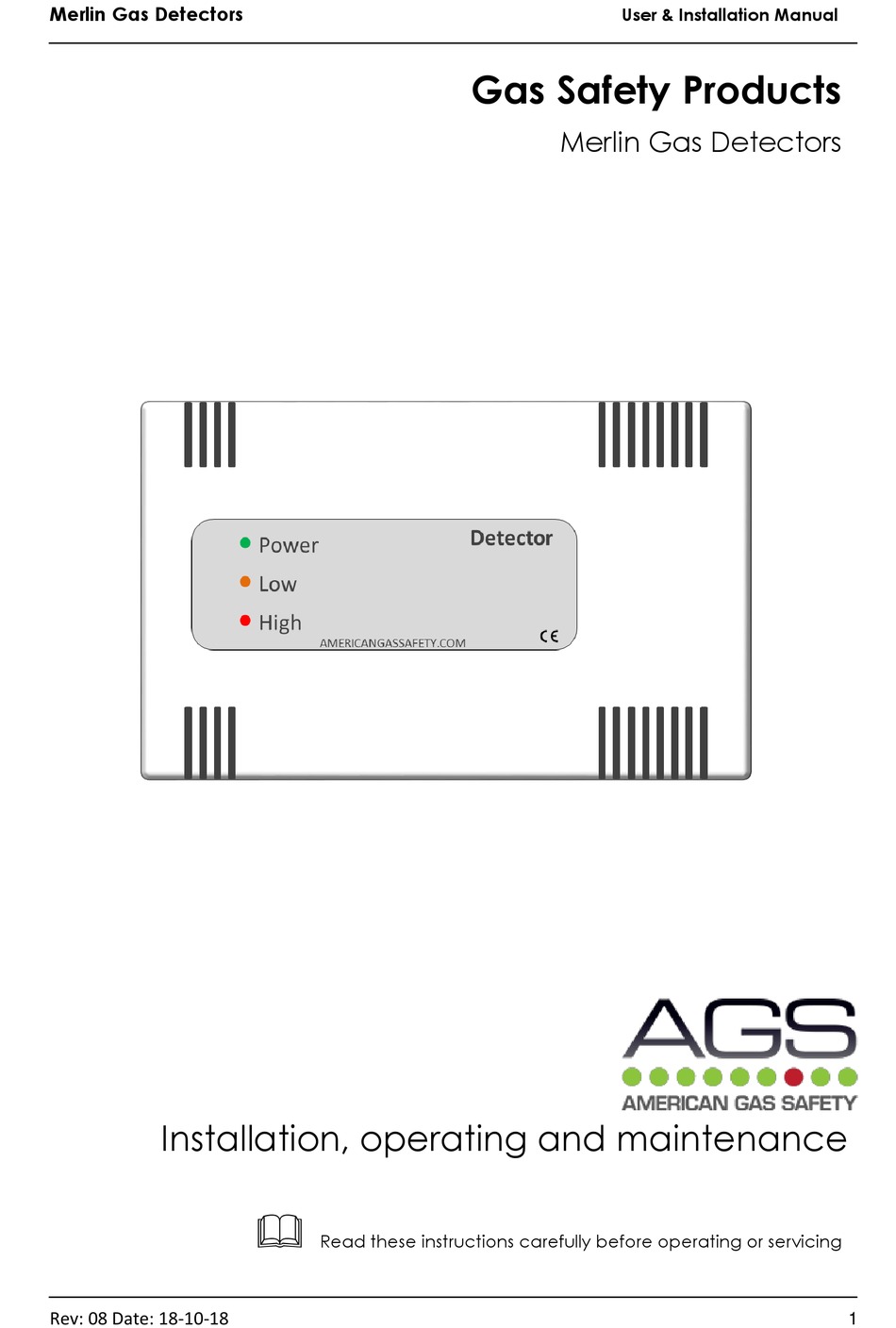

- Page 1 Merlin Gas Detectors User & Installation Manual Gas Safety Products Merlin Gas Detectors Installation, operating and maintenance Read these instructions carefully before operating or servicing Rev: 08 Date: 18-10-18...
- Page 2 Merlin Gas Detectors User & Installation Manual Attention The unit should be installed by a competent person only. The expected life time of the detector/sensor element is: LPG, Methane and Hydrogen = 10 years. CO = 5 years. The unit should be stored in cool, dry conditions.
- Page 3 Merlin panel using the [N/C] & [COM]. See Wiring Diagram at the end of this document. xxxTo Avoid Electrical Interference. All low volt connections should be made using a screened...
- Page 4 Merlin Gas Detectors User & Installation Manual Technical Specification Power supply 7-30VDC, 80mA max Methane/LPG/Hydrogen - Semiconductor Type Gas Sensor Carbon Monoxide – Electro-Chemical Type Methane 300-10000 ppm LPG 300-10000 ppm Typical Measuring Range Carbon Monoxide 10-10000 ppm Hydrogen 100-10000 ppm...
- Page 5 Merlin Gas Detectors User & Installation Manual Wiring Diagram [+] Power supply, Positive connection from Merlin panel. [-] Power supply, Negative connection from Merlin panel. [CL] Alarm relay, Alarm signal to GDP panel. [N/C] Alarm relay, Volt free connection. Normally Closed.
- Page 6 Please contact your supplier or local authority for details of recycling schemes in your area. CONTACT US: AGS Head Office Tel: (727) 608-4375 Fax: (727) 538-4237 info@americangassafety.com AGS is the owner of this document and reserves all rights of modification without prior notice. Rev: 08 Date: 18-10-18...
