Parksafe Gas Detector
PARKSAFE GAS DETECTOR
Nitrogen Dioxide or Carbon Monoxide
Installation, Operation & Maintenance
Please read this manual carefully and retain for future use.
The Parksafe gas detection range is designed for installation into car parking facilities and enclosed
garages – paired with the Parksafe control panel which will monitor up to 16 gas detectors per panel.
The information contained within this manual should be referenced for typical installation and operation
only. For specific requirements that may deviate from the information in this guide – contact your supplier.
Rev: 9 10-20
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGS PARKSAFE GAS DETECTOR
Summary of Contents for AGS PARKSAFE GAS DETECTOR

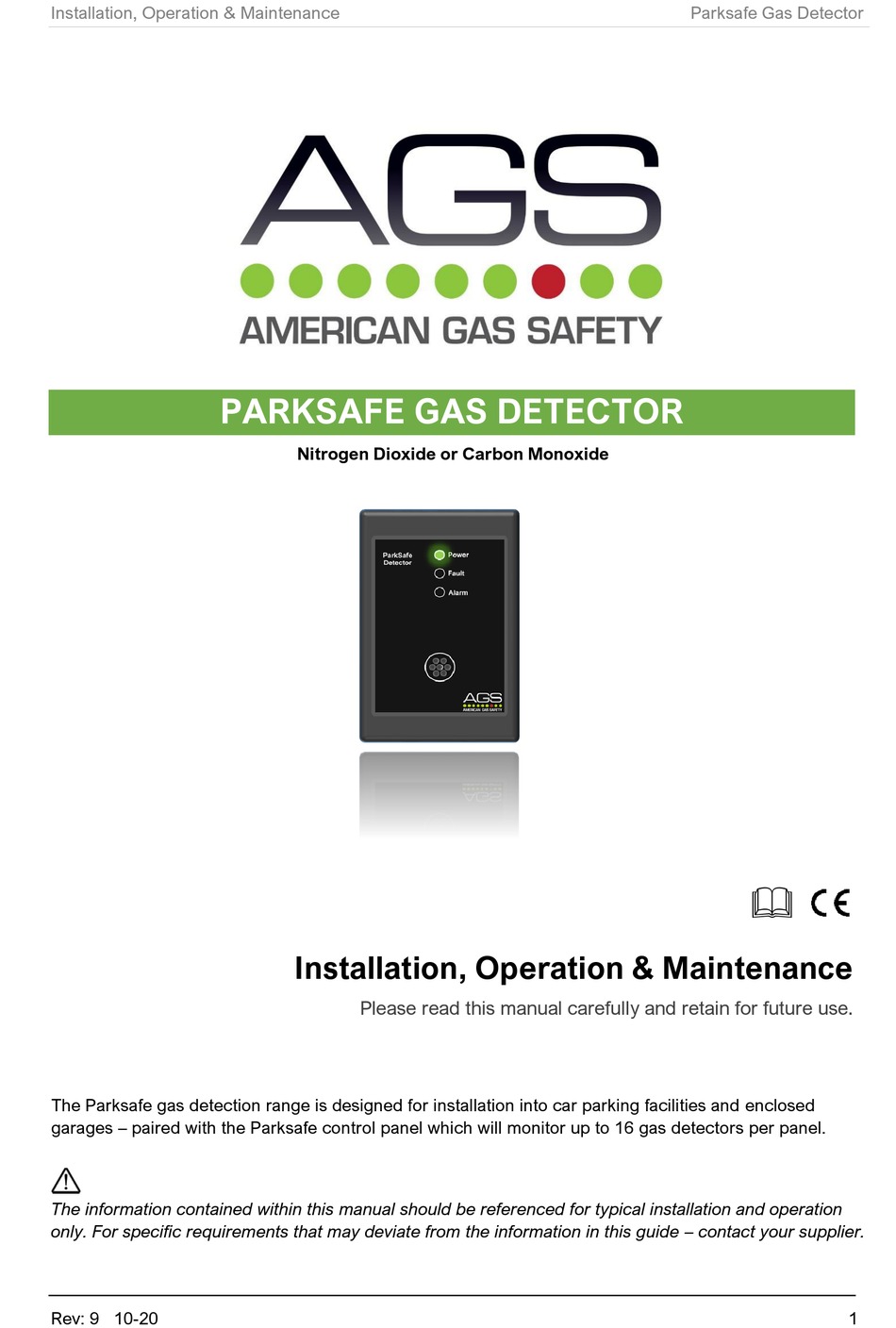

- Page 1 Installation, Operation & Maintenance Parksafe Gas Detector PARKSAFE GAS DETECTOR Nitrogen Dioxide or Carbon Monoxide Installation, Operation & Maintenance Please read this manual carefully and retain for future use. The Parksafe gas detection range is designed for installation into car parking facilities and enclosed garages –...
-
Page 2: Table Of Contents
Installation, Operation & Maintenance Parksafe Gas Detector CONTENT IMPORTANT SAFETY INSTRUCTIONS ............3 INSTALLATION ....................4 Planning ............................. 4 Typical Location and Positioning ................... 4 Typical Installation Arrangement .................... 4 Mounting ............................ 5 Board Overview ........................5 Wiring your Detector ........................ 6 Detector Chain ID Switches .................... -
Page 3: Important Safety Instructions
Installation, Operation & Maintenance Parksafe Gas Detector IMPORTANT SAFETY INSTRUCTIONS Before any installation, use or maintenance read this manual carefully. The information contained within this manual should be referenced for typical installation and operation only. For site specific requirements that may deviate from the information in this guide – contact your supplier. -
Page 4: Installation
Installation, Operation & Maintenance Parksafe Gas Detector INSTALLATION Planning Our detectors should be installed in areas at risk of gas accumulation. Take in to account the design of the air flow patterns within the parking zone area. Detectors should be installed in the correct orientation, as recommended by the manufacturer, and ease of access should be accounted for to allow for any bump tests and other forms of maintenance and identification. -
Page 5: Mounting
Installation, Operation & Maintenance Parksafe Gas Detector Mounting Unpack all the parts! Designed for surface mounting, it must be installed by a licensed, insured contractor. 1. Carefully remove the front cover of the unit by removing the four screws with a screwdriver. -
Page 6: Wiring Your Detector
Installation, Operation & Maintenance Parksafe Gas Detector Wiring your Detector Power and Modbus data are wired between detectors with the first connected to a control panel DETECTOR CHAIN terminal. For MODBUS communications, a shielded cable is used. The shielding can be of 2 types: braided [mesh of thin conducting wires] or foil (consisting of a thin sheet of metal covering the twisted wires). -
Page 7: Creating A Detector Chain
Installation, Operation & Maintenance Parksafe Gas Detector Creating a Detector Chain Up to 16 Parksafe detectors can be connected, chained in a parallel ‘daisy chain’ method up to approx. 500 yards from the panel depending on chain configuration, wire type for power and condition. Any other way may cause issues or damage to the overall system. -
Page 8: Quick Tips
Installation, Operation & Maintenance Parksafe Gas Detector Quick Tips CONNECTION: The best way to connect devices in a MODBUS RTU is a ‘DAISY CHAIN’ method. MAXIMUM DISTANCE: You may encounter problems when powering gas sensors beyond 500 yards from one control panel, in this instance, contact your supplier. -
Page 9: Specification
Installation, Operation & Maintenance Parksafe Gas Detector Specification Product: Parksafe Gas Detector Model: CO / NO Compatibility: Parksafe Control Panel Visual Indicators: Power LED / Fault LED / Alarm LED Modbus: Detector chain length: ±500 Yards Approx. Initial Stabilisation Time: 60 Seconds approx. -
Page 10: Operation
Installation, Operation & Maintenance Parksafe Gas Detector OPERATION First Power Up 1. On connecting power, your gas detector Power LED will illuminate. 2. The gas detector then enters a stabilisation phase for approximately 60 seconds – during this time the Fault LED will flash indicating that the device is not yet ready for operation. -
Page 11: End Of Life (Eol)
Installation, Operation & Maintenance Parksafe Gas Detector End of Life (EOL) A message on the Parksafe control panel will indicate that a detector has reached its expected operational lifecycle. This means the gas sensing module will need to be replaced. -
Page 12: Maintenance & Testing
Parksafe Gas Detector MAINTENANCE & TESTING Cleaning Keep your Parksafe gas detector in good working order - follow these basic principles; Remove any dust/debris from the outer enclosure regularly using a slightly damp cloth. Never use detergents or solvents to clean your device. -
Page 13: Gas Testing Overview
For more information on this, contact us. Gas Testing Kits AGS provide a range of test gas kits traceable to appropriate standards and usually consist of: Certified gas cylinder / spray. • Flow Control Regulator / Control Valve •... -
Page 14: Parksafe Gas Testing Procedure
Installation, Operation & Maintenance Parksafe Gas Detector Parksafe Gas Testing Procedure Recommended gas concentrations for testing your mini-merlin system. Carbon Monoxide (CO) 250-500ppm** in air. Nitrogen Dioxide (NO 10ppm** in air Reference should always be given to any applicable national & local law and industry codes. -
Page 15: Engineers Notes (Blank)
Installation, Operation & Maintenance Parksafe Gas Detector Engineers Notes (Blank) Rev: 9 10-20... -
Page 16: Installation Details
Installation, Operation & Maintenance Parksafe Gas Detector Installation Details Please pass this manual to the system owner / user. Date of Installation: Installation Location: Organisation: Stamp/ Signature of the installer: American Gas Safety LLC Head office: 6304 Benjamin Road, Suite 502, Tampa, FL 33634 Tel: (727) 608-4375 info@americangassafety.com...
