Installation, Operation & Maintenance

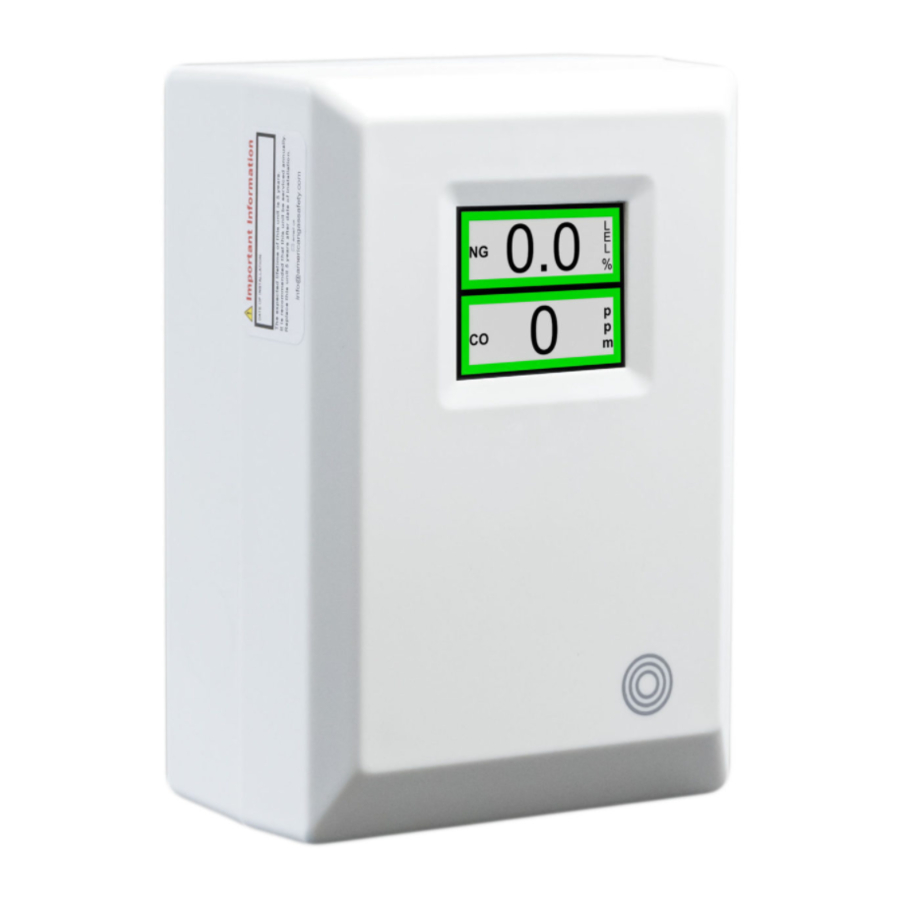

Your new Mini Merlin is a dual gas sensor carefully designed and tested to monitor levels of Methane (CH
Carbon Monoxide (CO) in the air. If there is a dangerous build-up of gas at the sensor, this device can shut off the gas
supply via a gas safety valve and /or gas fired appliance(s). This device has additional features for resetting systems,
as well as audible and visual alarms - It can also be integrated with a Building Management System (BMS).
The information contained within this manual should be referenced for typical installation and operation only. For
specific requirements that may deviate from the information in this guide – contact your supplier.
Rev: 20 12-20

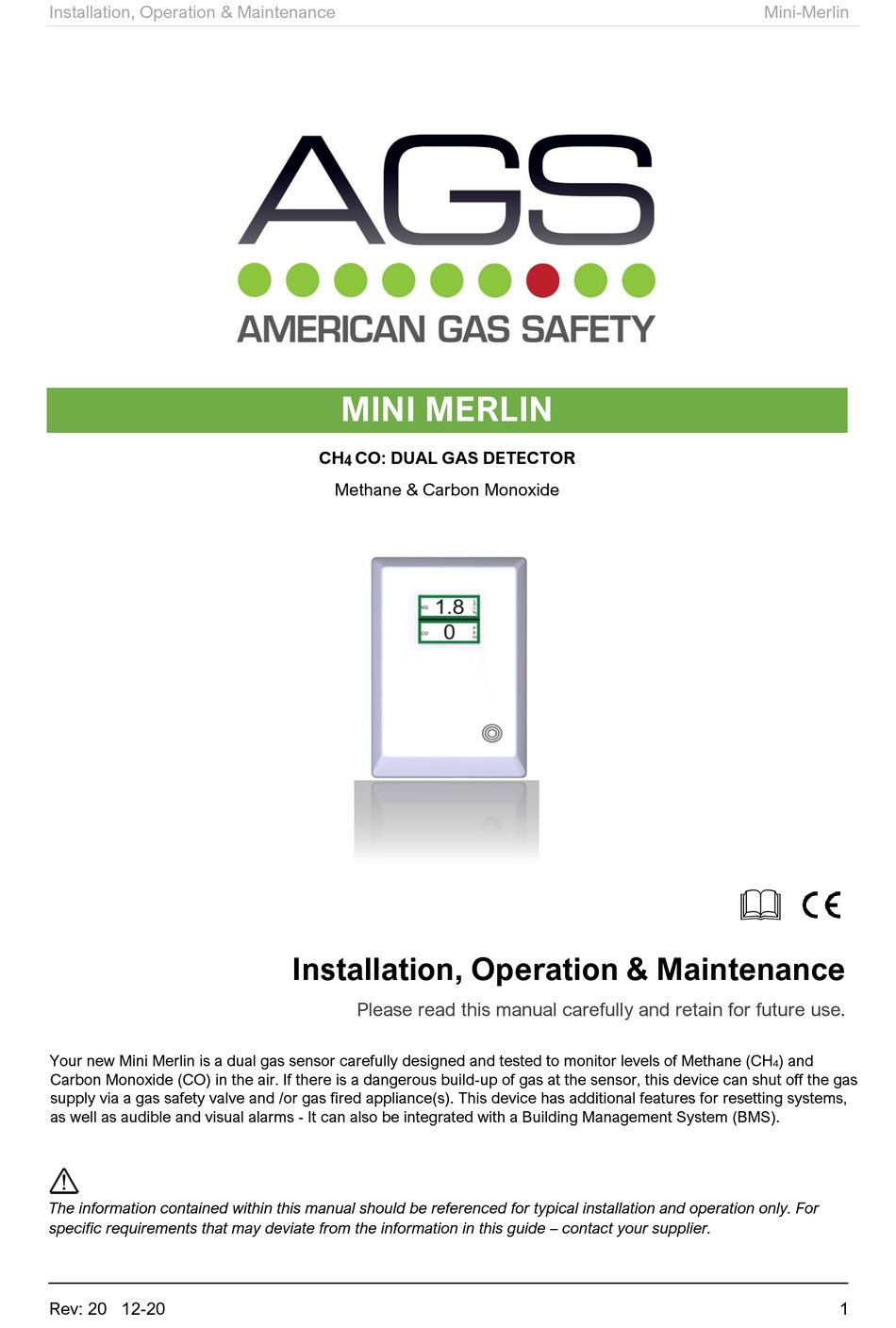

MINI MERLIN
CH
CO: DUAL GAS DETECTOR
4
Methane & Carbon Monoxide
Installation, Operation & Maintenance
Please read this manual carefully and retain for future use.
Mini-Merlin
) and
4
1
