HARDWARE CONTROL SETUP

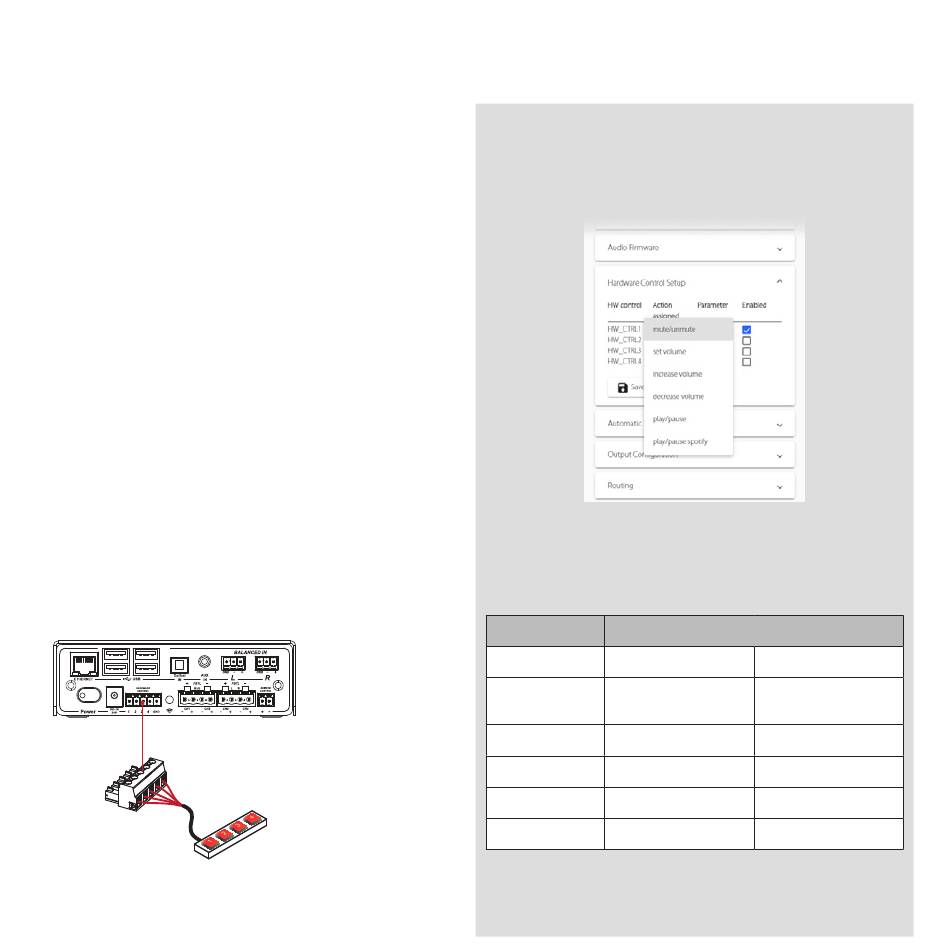

The Kommander-KA02 Azimut amplifier unit provides a
General Purpose Input connector designed to connect up
to four external normally open (NO) switches* to be set as a
further remote user customizable controls.
In order to bind the remote control to an Azimut operating
functionality (actions) follow these step:
1. Connect the external NO switch to the ground (GND) terminal and to
one of the four available terminals of the flying plug;
2. Plug the flying plug to the Hardware Control port on the Kommander-
KA02 back panel;
3. Open the Azimut user interface, click on the Main Menu icon and
select Advanced;
4. Scroll down and find the Hardware Control section;
5. Find the control with the number corresponding to the hardware control
terminal where you plugged the remote switch and set the proper
function;
6. Enable the remote control;
7. Click on Save setup to make the settings effective.
*external normally open (NO) switches
are not provided with the Azimut
system.
Action Parameter
mute/unmute n/a
set volume number of decibels (dB)
Increase volume n/a
Decrease volume n/a
play/pause n/a
play/pause Spotify n/a
13
Azimut
Reference Guide
max: 24
min: -200
