Leviton Lumina RF 10A Installation And Quick Start Sheet

WARNINGS AND CAUTIONS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and
test that power is off before wiring!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
For the following models:
ZSS10-NAZ:
• 10A robust/commercial mechanical latching relay to handle high inrush (LED) and large loads.
• Utilizes Leviton lumina™ RF technology to communicate with other lumina™ RF wireless
compatible products.
NOTES
• Requires a neutral (white) connection wire.
• Requires lumina™ gateway for programming and control communication to other devices.
Leviton lumina™ RF Wall Switch Overview
Leviton's lumina™ RF components are designed to communicate with each other via 2.4GHz Radio
Frequency (RF) to provide remote control of your lighting. Each module in Leviton's lumina™ RF component
line is designed to act as a router. These routers will re-transmit the RF signal from one device to another
until the intended device is reached. This ensures that the signal is received by its intended device by routing
the signal around obstacles and radio dead spots.
WIRING INSTRUCTIONS
The Leviton lumina™ RF Wall Switch is wired directly to the load and utilizes a mechanical latching relay for power
switching control from the Decora® rocker. When multiple wall switches are controlling the same load, the following
wiring instructions apply to each wall switch and the multi-location load control is completed through programming
via the Leviton lumina™ gateway. A gateway is required for all lumina™ RF Wall Switches control programming,
please refer to the lumina™ gateway user manual for details.
NOTES:
1. Refer to Figure 1 to determine the wire colors for each connection.
2. Leviton lumina™ RF Wall Switch requires a neutral (white) connection.
3. Wiring Connections:
a. Connect the Load (blue) wire to the lighting load.
b. Connect the Neutral (white) wire to the neutral supply.
c. Connect the Line (black) wire to either phase of the 120-277V supply.
The Line (black) wire must be accessible for the installation of any additional switches.
Installation Procedure
1 . Be sure that all power to the load has been disconnected by turning off the circuit breaker.
2. If applicable, remove the faceplate from the existing wall switch, remove the existing wall switch from the wall box, and
disconnect the wires from the existing wall switch. Identify the "Line", "Neutral", "Load" and "Traveler" (if applicable) wires.
NOTE: Traveler wire is not required for multi-location load control, firmly attach wire connector and tuck into wall box.
3. Remove 3/4" of insulation from each of the wires on the Leviton lumina™ RF Wall Switch. Install the Leviton lumina™ RF Wall
switch by connecting wires per wiring configuration (see Figure 3).
4. After all connections have been made, be certain that all wire connectors are firmly attached and there is no exposed copper.
5. Gently place the wires and Leviton lumina™ RF Wall Switch into the wall box with the LED at the top of device. Using the
supplied screws, attach the Leviton lumina™ RF Wall Switch to the wall box.
6. Before installing the faceplate, restore power to the circuit, and verify LED, switch On/Off operation.
7. After testing the Leviton lumina™ RF Wall Switch and Multi-location Switches for proper local operation (see Table 1),
install a Decora® faceplate over each switch.
Changing Switch Color
The color of the Leviton lumina™ RF Wall Switch may be changed to complement the interior décor. The Leviton
lumina™ RF Wall Switch is supplied with a white, ivory and light almond switch plate. Additional colors are available;
contact your Leviton distributor for more information. When changing the switch plate, make sure that the switch
is disconnected from all power, and proceed as follows:
1. Push in side at tab to release (see Figure 2).
2. Line up and press in side to attach (see Figure 2).
Leviton 10A RELAY SWITCH OPERATION
Local Rocker Switch Operation
The Leviton 10A Relay Switch has a rocker switch that can be used to control the load (see Table 1).
LED Indicator
The Leviton lumina™ RF Wall switch comes equipped with a LED indicator that is normally lit to green
when the load is off. The LED is off when the load is on.
Setup Mode for Controls Communication
Configure the Leviton lumina™ RF Wall Switch using a lumina™ gateway with a PC running the lumina™ RF
smart configuration software (see configuration videos and software for detailed radio frequency pairing
and control programming online at www.leviton.com/luminarf). The device must be in Network Enrollment
mode while the lumina™ gateway is searching for new devices to Enroll.
Leviton lumina™ RF 10A Relay Switch Local Operation
Rocker Event
Single-Tap
LEVITON lumina™ RF 10A RELAY SWITCH
Rating: 120-277VAC, 50/60Hz,
Incandescent: 800W @ 120V - Ballast: 1200VA @ 120V, 2700VA @ 277V - Motor: 1/4HP @ 120V
INSTALLATION AND QUICK START SHEET
Table 1 -
Top Rocker Bottom Rocker
Load turns on. Load turns off.
Cat. No. ZSS10-NAZ
WARNINGS AND CAUTIONS
• This product must be installed in a suitable junction box or equivalent enclosure.
• Use this device with copper or copper-clad wire only.
• For indoor use only.
• SAVE THESE INSTRUCTIONS.
LED
INDICATOR
TOP
(ON)
BOTTOM
(OFF)
Push in side at
tab to release

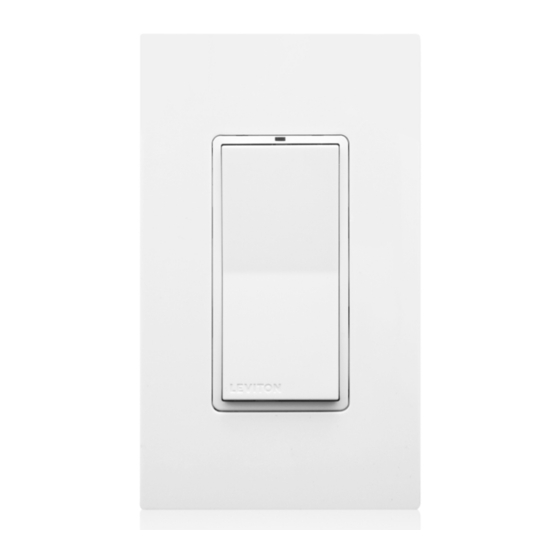

Figure 1 - Leviton lumina™ RF Wall Switch
Figure 2 – Changing Switch Color
Line up tabs
and press in
side to attach
Figure 3 - Wiring
Switch
BK
BL
Black
WH
Load
White
DI-XXX-ZSS10-00A
ENGLISH
BLACK
LINE
WHITE
NEUTRAL
BLUE
LOAD
Hot (Black)
Line
120-277VAC, 50/60Hz
Neutral (White)
