Original – User manual Art.-no. 4000402 / 4000442

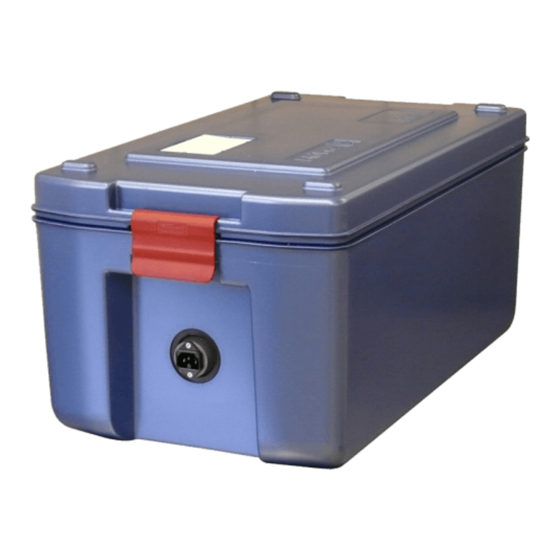

Food Transport boxes with cut-out Art.-No. 4000442
Food transport boxes for the transportation of food in warm or cold
condition
incl. heating rod type H – BM 0026, 500W, 220 - 240V, 50Hz
Actively heatable by a heating rod Art. no. 8001751
page 1 of 20
Articles are subject to changes
level 01/2019
Advertisement
Table of Contents
Related Manuals for etol blu'box 26 eco plus hot
Summary of Contents for etol blu'box 26 eco plus hot
- Page 1 Original – User manual Art.-no. 4000402 / 4000442 Food Transport boxes with cut-out Art.-No. 4000442 Food transport boxes for the transportation of food in warm or cold condition incl. heating rod type H – BM 0026, 500W, 220 - 240V, 50Hz Actively heatable by a heating rod Art.
-
Page 2: Table Of Contents
Inhalt 1 General 1.1 Symbol explanation 1.2 Warranty conditions 1.3 Technical changes 2 Safety instructions 2.1 General safety instructions 2.2 Proper use oft he food transport box 2.3 Improper use of the transport box 2.4 Operation of the heating rod Art.-no. 8001751 2.5 Transportation and proper placement 2.6 Staff 3 Handling... -
Page 3: General
Damages in transit have to be claimed at the forwarder at once and have to be confirmed on the shipping document. This user manual also can be downloaded at the download area of plastics technology on our homepage www.etol.de 1.1 Symbol explanation Reference / attention Danger from electric strike... -
Page 4: Warranty Conditions
Type label of the food transport box, Art.-no. 4000339/4000410 Producer Type Model CE – The food transport box agrees with the regulations of the European rules (see declaration of conformity). Type label - Heating rod Serial no. Production date 1.2 Warranty conditions The statutory warranty periods apply. -
Page 5: Safety Instructions
2 Safety instructions 2.1 General safety instructions The thermo container is ONLY used for keeping food warm and for the transport of already made food in hot condition. The thermo container with a heating rod is used for actively keeping food warm before and after transport. -
Page 6: Transportation And Proper Placement
2.5 Transportation and proper placement ONLY move the food transport box with help of the carrying handles or means of transport provided for this purpose. Secure the food transport box before placing and using the heating system by considering the following steps: ... -
Page 7: Before Connecting
3.2 Before connecting The connection values must match those on the label. Ensure a good connection to the power supply system. Do not use an extension cord in wet rooms. ONLY use sockets in wet areas at 1m height. DO NOT use outdoors. The heated blu'box 26 plus hot has an operating voltage of 1 N AC 220–240 V-50 Hz. -
Page 8: Connecting / Switching On The Food Transport Box
3.4 Connecting / switching on the food transport box Pay attention to the fitting of the heating rod (see page 7 point 3.3). Move the food transport container to a suitable position (see safety instructions). Power cord Connection line Art.-No. 8007489 Type H05RN - of F3G1,0²... -
Page 9: Operation / Loading
3.5 Operation / Loading Use and explanation +100 °C GN 1/1, 200mm Thoroughly clean the container before use (short-term thermal disinfection is possible up to + 130 °). Only transport the food with the help of GN-containers, Heating rod is NOT allowed in the NOT in the box itself. - Page 10 Now connect the power cord to a 220 – 240 Volt-Net –outlet, which are secured with 10/16 Ampère. Now the blu'box 26 plus hot is ready for use, the temperature regulates itself at approx. 125 ° C (PTC heating element). The blu'box 26 plus hot can be equipped with a water bath (recommended) as bain-marie, but also be used without a water bath (dry).
-
Page 11: Carry The Box
Dry operation Hang the GN_Container in the box, afterwards put the lid on top and close blu‘box The air on the inside will heat up NOTE: In dry operation, the efficiency deteriorates considerably! ATTENTION: Do not clean the heater socket with water! Wipe the heating rod with a damp cloth. -
Page 12: Removal Of The Gn-Container / Food Distribution
3.8 Removal of the GN-Container / food distribution Please ensure a secure position of the food transport box. DO NOT stack more than four boxes on top of each other. DO NOT put the GN - container on the food transport box (danger of burns by touching the heating element). -
Page 13: Cleaning / Maintenance
3.10 Cleaning / Maintenance Before cleaning the food transport box, pull out the power cord, let the heating rod cool down, turn the heating rod by 180 ° and remove it. Thoroughly clean your food transport box - especially in the interior. Dirt, salt and calcification deposits can cause corrosion damage for which the manufacturer is NOT liable. -
Page 14: Storage
4 Storage The food transport boxes must be stacked correctly and stored in dry, clean rooms (see page 13). When the food transport box is moved from a cold storage room to a kitchen, the moisture contained in the room condenses on the surface of the food transport box. The moisture film creates the risk of a short circuit or electric shock when the food transport box is connected. -
Page 15: Assembly And Disassembly Of The Heating Rod Art.-No. 8001751
Please state the device type and the device number in case of complaints. Repairs to the heating rod may NOT be made by yourself. The food transport box with a heating rod may ONLY be repaired by etol personnel. By opening the heater any warranty expires and any liability is excluded. -
Page 16: Technical Data
7 Technical data Main dimensions of the heating rod Art.-No. 8001751 97 mm 498 mm 61 mm Line voltage: 1N AC 220-240V / 50Hz (10/16 Ampere) Current consumption: 500 W Weight: 0,68 kg Main dimensions and weight – Food transport container Art. No. 4000442 308 mm 630 mm 370 mm... -
Page 17: Spare Parts
8 Spare parts 1 x 664100272 1 x 664201429 1 x 664201755 8002232 8007410 8001751 8001739 8007489 Loading examples GN 1/1, 200mm GN 1/2, 200mm GN 1/3, 200mm page 17 of 20 Articles are subject to changes level 01/2019... -
Page 18: Optiona Additional Parts
8.1 Optiona additional parts HEATING Heating rod Art.-No. 8001751 COOLING cool-accu Art.-No. 4000388 in combination with a high cover Art.-No. 664201677 LIQUIDS stainless steal – beverage container Art.-Ni. 8001845 page 18 of 20 Articles are subject to changes level 01/2019... -
Page 19: Declaration Of Confirmity
9 Declaration of confirmity page 19 of 20 Articles are subject to changes level 01/2019... - Page 20 page 20 of 20 Articles are subject to changes level 01/2019...
