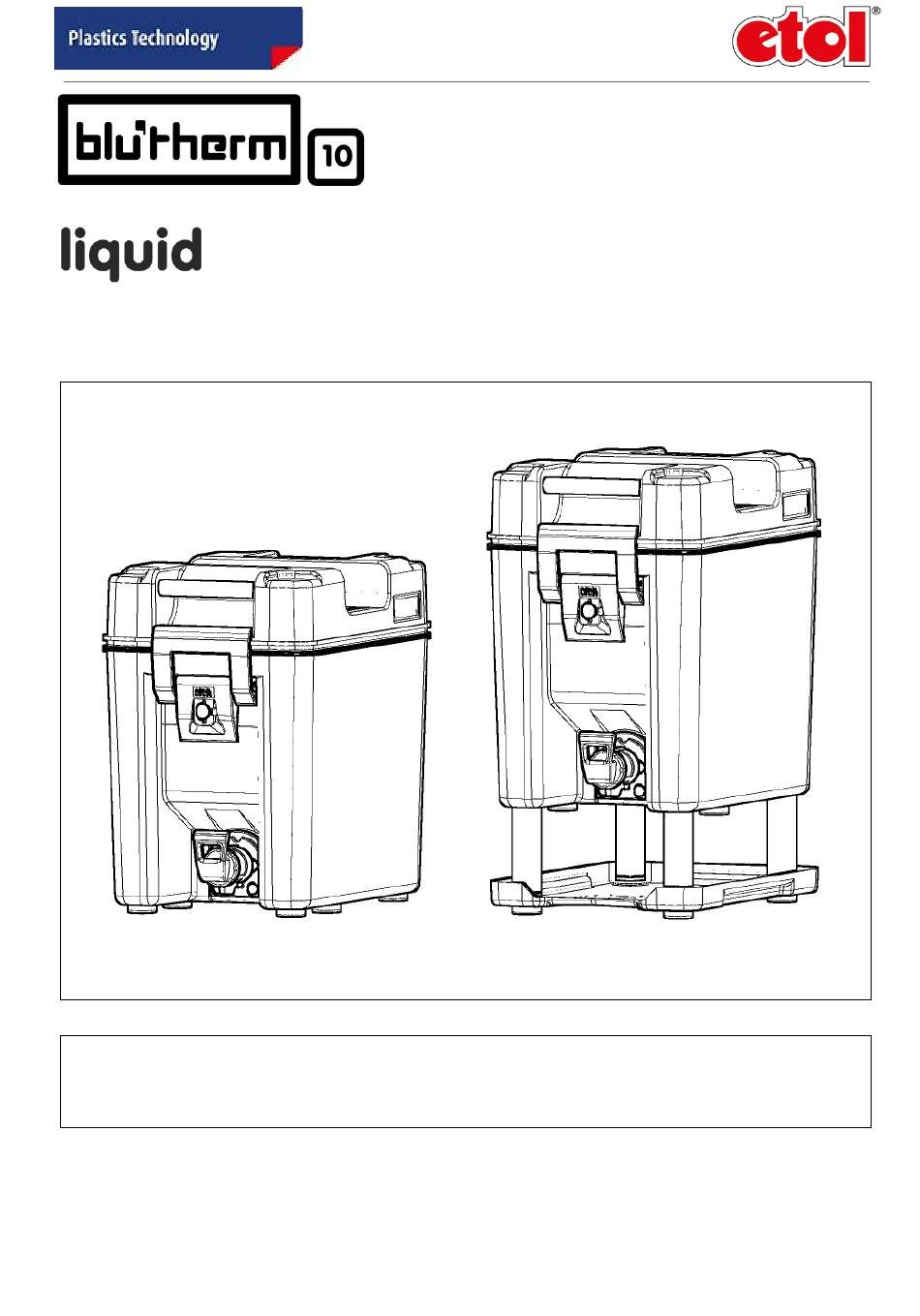

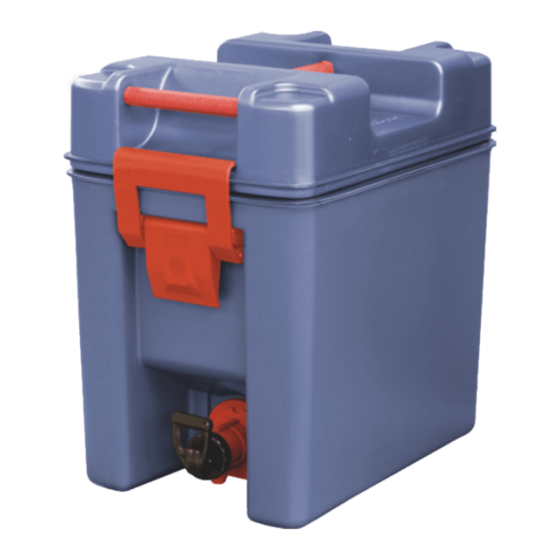

- Page 1 Without drip pan Art.-no. 4000581 With drip pan Art.-no. 4000574 Original – User manual Art.-no. 4000574 Art.-no. 4000581 Beverage transport containers for the transportation of warm and cold beverages Page 1 of 8 Articles are subject to changes Level 05/2019...
- Page 2 • Use and explanation Proper handling Remove all removable parts: • Cover • Sealing ring for cover - 20°C to + 100°C • Tap part, • Outlet head • Sealing ring for outlet head • Cleaning <+ 130°C • Clean all the removable parts in the dishwasher, all small parts must be put in a basket (dishwasher temperature <+130°C).
- Page 3 • Storage The containers must be correctly stacked on top of each other and must be kept in clean, dry rooms. • Transportation • Disassembly of the clip closure Art.-no. 8002625 Remove the sealing plugs of the screws with a pointed object (plugs will be destroyed).
- Page 4 • Disassembly and assembly of the outlet Disassembly: 90° Turn the outlet head unit counterclockwise by 90 °. Disassembly: Unscrew the outlet head and tap part counterclockwise and pay attention to the sealing ring. Assembly: Place sealing ring in the tap part and screw the outlet head together counterclockwise Assembly:...
- Page 5 Modification: neu ventilation • Spare parts for Art.-no. 4000581 1 x 8000330 1 x 8003495 1 x 664100486 1 x 664202279 1 x 8003496 1 x 664202281 8002625 8004945 8001742 8004944 8002797 8004942 8002462 8002486 8001027 • Optional additional parts – drip pan 8002660 1 x 664100833 8002462...
- Page 6 • Disassembly and assembly of the drip pan Remove the 4 plugs of the screw holes Art.-no. 8001027 with a pointed object (plugs will be destroyed). Please turn the 4 screws No. 8002486 out with a screwdriver and put in the 4 feet Art.-no. 8002462 Order of assembly of the drip tray: 8002495 –...
- Page 7 Weight = 3,4 kg Art.-no. 4000574 Weight = 4,5 kg Producer • etol Eberhard Tripp GmbH • Allerheiligenstraße 12 • 77728 Oppenau • Germany T. + 49 (0) 7804 410 www.bluline.de - info.bluline@etol.de Page 7 of 8 Articles are subject to changes...
- Page 8 Page 8 of 8 Articles are subject to changes Level 05/2019...
