- Page 1 MODEL:NF-8208 Your excellent helper in cable test! INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL LCD Network Length Tester ORIGINAL ORIGINAL AUTHENTIC AUTHENTIC REV1.0...
- Page 2 Please read and learn safety instructions before use or maintain the equipment Main testerr uses 6V DC for power supply;Receiver uses 9V battery for power supply . Never put the equipment in the place with much dust, humidity and high temperature (over 40 Please use battery according to the specification;...
-
Page 3: Table Of Contents
Contents Overview.............01 Main Functions and features.......02 Technical index ..........02 Product interface and keypad Introduction..03 Product operation methods.........05 Start up or shut down AF hunting function..11 Diagram of series products........12 Your excellent helper in cable test! -
Page 4: Overview

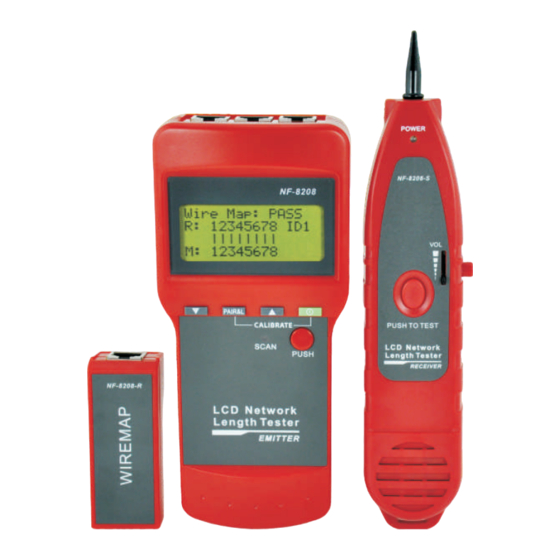

Overview LCD cable tester NF-8208 is an updated item after NF-8108. It is composed of Main tester , Receiver and Remote identifier. Compared to NF-8108, it can not only wiremap network cable, measure the length of network cable, but it can also trace cables with its receiver, which makes it a more popular tool in network and telecommunication field. -
Page 5: Main Functions And Features
Main Functions and features One person enough to complete cable continuity check. The funtion of probing the audio and tracing the cable. Check wiring error in 5E, 6E, such as open circuit, short circuit, jumper wire, reverse connection. Measure the length of network cable, and locate the open and short point. - Page 6 (5). Type of cable detected 5E, 6E (6). Ambient temperature in work -10℃~+60℃ (7). Tester Port Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), hunting RJ45 port(SCAN); Remote identifier RJ45 port (R) The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line.
-
Page 7: Product Interface And Keypad Introduction
Product interface and keypad Introduction POWER NF-8208-S SCAN MAIN LOOPBACK PUSH TO TEST LCD Cable Length Tester RECEIVER NF-8208 1 . w i r e m a p 2 . p a i r &l e n g t h 3 . -
Page 8: Product Operation Methods
Product operation methods Start and display: Carry out self-checking at the same time (The dotted line dynamically displays the course of self-checking from left to right): N e t W o r k C a b l e T e s t e r 5 seconds or push any arbitrary key to display main menu. - Page 9 Test Result 1: Short circuit (SHORT) It displays as follows if there is any short circuit in cable or terminal: (e.g.12 short circuit in the sample) S h o r t : At the moment,push key to restart testing or push key to return main PAIR&L menu.Always correct short circuit error first and then start further...
- Page 10 Test Result 4: Wiring diagram (WIREMAP) display when there is an open circuit at the far-end of cable. W i r e m a p : f a i l R: 12 x45 x78 id1 Iiiiiiii M: 12345678 " R:" line "3" and "6" pins location display "x", it indicates an open circuit in far-end plug "3"...
- Page 11 Test Result 6: Open circuit in the middle of cable It will display wiring diagram (WIREMAP) as follows if there is an open circuit in the middle of the cable: W i r e m a p : f a i l R : 1 2 3 4 5 6 7 8 i d 1 I i x i i i i i M : 1 2 3 4 5 6 7 8...
- Page 12 (The open circuit line number could be rechecked by WIREMAP function.) Note: NF-8208 can not check the wiremap of coax cable and telephone cable directly, it needs RJ11 cable adaptor and BNC cable adaptor. Your excellent helper in cable test!
- Page 13 Calibration and setup (SETUP) function: After entering into calibration and setup (SETUP) function, the tester shall display as follows: ----s e t u p ---- U n i t : m e t e r C a l i b r a t i o n Q u i t Dynamic calibration (CALIBRATION) function: (Another way to quickly enter into dynamic calibration: hold...
-
Page 14: Start Up Or Shut Down Af Hunting Function
At the moment, hold key (-/+) to display the length to be adjusted to actual given length and then push key to reserve calibration factor and PAIR&L exit calibration function. It will display as follows if the cable length being measured is too short (<10M) to remind the user to change a longer cable for calibration: C a b l e t o s h o r t ! c o h t i n n t . -
Page 15: Diagram Of Series Products
NF-306 NF-868 NF-8208 NF-268 NF-806R NF-816 NF-468L NF-3468 NF8108-M NF-388 NF-903 NF-906A Your excellent helper in cable test! - Page 16 Your excellent helper in cable test! SHENZHEN NOYAFA ELECTRONIC CO.,LTD...
