- Page 1 MODEL:NF-388 Your excellent helper in cable test! INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL LAN Cable Tester ORIGINAL ORIGINAL AUTHENTIC AUTHENTIC REV1.0...
- Page 2 Please read and learn safety instructions before use or maintain the equipment The tester uses 9V battery for power supply . Never put the equipment in the place with much dust, humidity and high temperature (over 40 ). Please use battery according to the specification; otherwise, it may result in damage to equipment.
-
Page 3: Table Of Contents
Contents Overview............01 Main Functions and features......02 Technical index ..........02 Product interface and keypad Introduction..04 Product operation methods......05 Start up or shut down AF hunting function..11 Diagram of series products......12 Your excellent helper ! Your excellent helper in cable test! -
Page 4: Overview

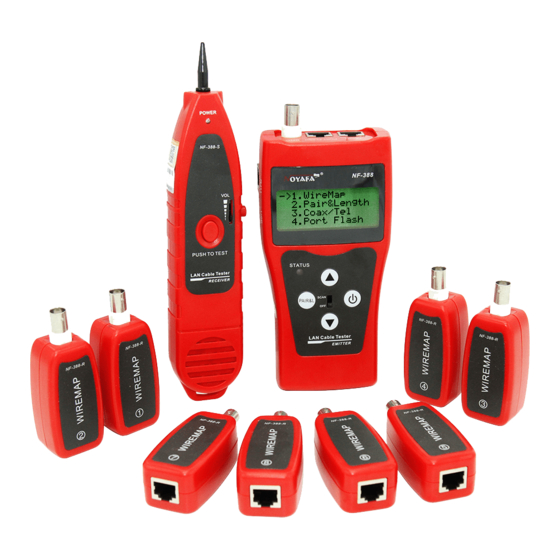

Overview NF-388 is a practical cable test & inspection instrument with lots of new functions researched and developed by our company, which is composed of tester (NF-388), receiver (NF-388-S) and remote identifier. It owns three great functions of wire hunting,wire sorting and circuit status testing quickly and accurately. -
Page 5: Main Functions And Features
Main Functions and features One person enough to complete cable continuity check. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables. Check wiring error in 5E, 6E, coaxial cable, such as open circuit, short circuit, jumper wire, reverse connection . Locate the wiring or connection error. - Page 6 (5). Type of cable detected 5E, 6E, telephone wire, coaxial cable, USB cable and other metal wires. (6). Ambient temperature in work -10 ~+60 (7). Tester Port Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), RJ45 Scan( RJ45 cable tracing); Remote identifier RJ45 port (R) The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line.
-
Page 7: Product Interface And Keypad Introduction
WIRE MAP MAIN LOOPBACK SCAN NF-388 1 . w i r e m a p 2 . p a i r &l e n g t h 3 . c o a x / t e l 4 . s e t u p... -
Page 8: Product Operation Methods
Product operation methods Bott Screen: Carry out self-checking at the same time (The dotted line dynamically displays the course of self-checking from left to right): N e t W o r k C a b l e T e s t e r Wait 5 seconds or push any arbitrary key to display main menu. - Page 9 Test Result 1: Short circuit (SHORT) It displays as follows if there is any short circuit in cable or terminal: (e.g.12 short circuit in the sample) S h o r t : At the moment, push key to restart testing or push key to return PAIR&L main menu.Always eliminate “short”error firstly and then start further...
- Page 10 Test Result 4: Wiring diagram (WIREMAP) display when there is an open circuit at the far-end of cable. W i r e m a p : f a i l R: 12 x45 x78 id1 Iiiiiiii M: 12345678 " R:" line "3" and "6" pins location display "x", it indicates an open circuit infar-end plug "3"...
- Page 11 Pair and length measurement (PAIR & LENGTH) function: The tester is capable to have pair and length (PAIR & LENGTH) measurement with or without remote recognizer. After entering into “PAIR & LENGTH” function, the tester shall start pair and length (PAIR & LENGTH) test and it will display as follows to indicate the measurement is being undertaken: ----T e s t i n g ---- 1 2 3 4 5 6 7 8 .
- Page 12 Test Result 3: Abnormal pair and length (PAIR &LENGTH) display It will display the paired lines and its length first ly,then unpaired lines display, as shown below. P a i r 1 2 1 0 0 . 0 m P a i r 3 6 1 0 0 . 3 m P a i r 4 5 1 0 0 .
- Page 13 Calibration and setup (SETUP) function: After entering into calibration and setup (SETUP) function, the tester shall display as follows: ----s e t u p ---- U n i t : m e t e r C a l i b r a t i o n Q u i t Push key to move cursor...
-
Page 14: Start Up Or Shut Down Af Hunting Function
If there is short circuit in cable, It will display as follows. S h o r t C o n t i n u e ? y e s At the moment, push key (No) to exit calibration function. Push (Yes) to repeat the measurement. -
Page 15: Diagram Of Series Products
NF-306 NF-868 NF-8208 NF-801B NF-806R NF-816 NF-468L NF-3468 NF8108-M NF-388 NF-903 NF-906A Your excellent helper in cable test! - Page 16 Your excellent helper in cable test! SHENZHEN NOYAFA ELECTRONIC CO.,LTD...
