Summary of Contents for Maxon S5 PMR446

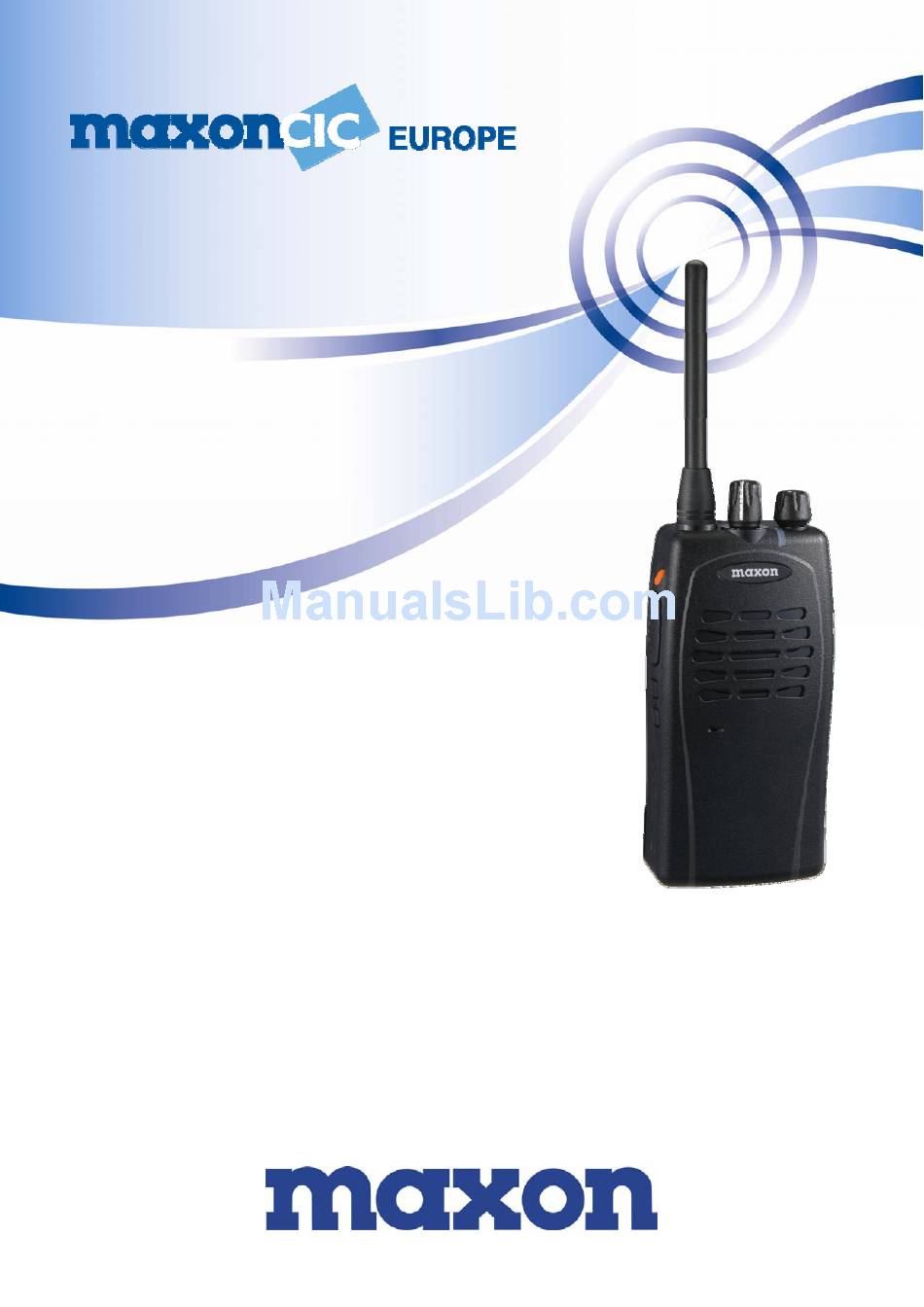

- Page 1 S5 PMR446 User Manual...
-
Page 2: Table Of Contents
User Manual Table of Contents Table of Contents .........................1 Operating Instructions......................2 About Your S5 Radio ....................2 S5 Specification ......................2 Safety Information ........................3 Unpacking Information ......................4 S5 Features ..........................5 Description of Radio Components ...................5 Installing and Removing the Battery Pack ................7 Attaching and Removing the Belt Clip ..................8 Attaching and Removing the Jack Cover..................8 Battery Charging and Care.....................9... -
Page 3: Operating Instructions
User Manual Operating Instructions About Your S5 Radio Maxon's S5 radio features up to 8 channels. Operation and functions of these radios are outlined in this manual. We urge you to thoroughly read this manual before operating the radio The application of some of the functions described in this manual is determined by the sytem you use. -
Page 4: Safety Information
When used in a vehicle, do not mount the radio unit on or near the Airbag or Airbag activation device. The use of an accessory not recommended or supplied by Maxon may cause damage to equipment or injury to personnel, and will invalidate warranty. -
Page 5: Unpacking Information
Remove and carefully inspect the contents of your package(s) for the following items: 1. Radio 2. Battery Pack 3. Battery Charger 4. Spring Belt Clip 5. Jack Cover 6. Battery Charger Power Supply 7. User Manual * If any items are missing, please contact your Dealer or Maxon Page 4... -
Page 6: S5 Features
User Manual S5 Features 500mW output power 12.5KHz channel spacing Full scanning Password protect Emergency call CTCSS/DCS/tone signalling Li-ion Battery 2-Tone Decode Busy Channel lockout Time-out timer Priority Channel Edit Description of Radio Components (Please see drawing on page 6) 1. - Page 7 User Manual Page 6...
-
Page 8: Installing And Removing The Battery Pack
User Manual Installing and Removing the Battery Pack To Install: Position the guides of the battery in line with the radio battery guide rails and slide the battery into position until a click is heard. To Remove: Holding the radio in one hand, push and hold the battery latch button located in the upper central part of the battery pack, held as if looking at the back of the unit. -
Page 9: Attaching And Removing The Belt Clip
User Manual Attaching and Removing the Belt Clip To Install: Install belt clip onto the belt clip holder located on the upper part of the battery, held whilst looking at the back of the unit. Locate the slot on the battery and push belt clip downward until a click is heard. -
Page 10: Battery Charging And Care
User Manual Battery Charging and Care To ensure peak performance from your radio, the battery pack must be fully charged. Proper care and charging will allow maximum performance and life of your battery pack. CH-SL1000-02 Desktop Charger provides 2 hours charging to one radio and one battery. Before using your S5 for the first time a full two hour charge will be required for the best performance. -
Page 11: Status Indicators And Audible Alert Tones
Transmitting time has exceeded time-out timer programmed length* Low battery condition Selecting a channel with no programmed frequency * Indicates a function that is initially programmed into the radio by your Maxon Dealer. NOTE: All audible tones can be programmed for silent operation. Status... -
Page 12: Operation Mode
EMG/PTT/MON/OPTION button in the correct sequence. Four button presses are required to enter the code. If the code is not correct, the LED will blink red and there will be a double beep repeated. To disable the password function radio must be reprogrammed by an authorised Maxon dealer. -
Page 13: Fixed Key
User Manual If a conversation is detected on any of the channels in the scan list, the radio will stop on that channel and you will be able to hear the conversation. If programmed for normal scan TX, you will be able to transmit on that active channel during the programmable scan delay time. -
Page 14: Service Information
Product. This warranty is void if the serial number is altered, defaced or removed. Maxon's sole obligation hereunder shall be to repair or replace the Product covered in the agreed warranty. -
Page 15: Ch-Sl1000-02 Desktop Charger
CH-SL1000-02 Desktop Charger Product description The CH-SL1000-02 is the standard charger for Maxon's S5 two-way radio batteries. The charger has been designed to fully charge only the Li-ion, 1500mAh battery, the front charging slot charges a battery while connected to the radio, the back charging slot charges a battery that has been removed from the radio. -
Page 16: Declaration Of Conformity
To reduce the risk of shock or injury, familiarize yourself with the correct and safe operating procedures defined in this manual. Only charge Maxon's batteries in this charger – other battery types may burst causing personal injury or damage to the charger, battery or radio. - Page 17 Nous déclarons que le produit référencé ci-dessus satisfait aux exigences R&TTE 1999/5/EC qui lui sont applicables. Nous déclarons que le produit référencé ci-dessus satisfait aux exigences R&TTE 1999/5/EC qui lui sont applicables. Maxon House, Cleveland Road, Hemel Hempstead, Hertfordshire, HP2 7EY, United Kingdom Tel: +44 (0)1442 267 777 Fax: +44 (0)1442 215 515 e-mail: sales@maxoncic.co.uk...
