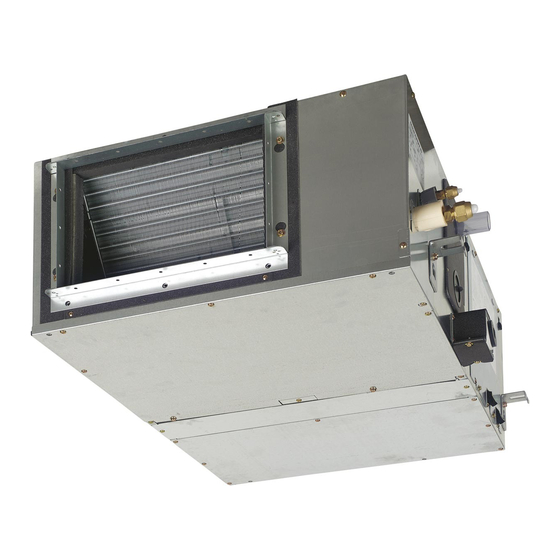

- Page 1 technical data Concealed Ceiling Unit FXSQ-MVE9...
-
Page 2: Table Of Contents
• Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 TABLE OF CONTENTS FXSQ-MVE9 Specifications ............2 Technical Specifications . -
Page 3: Specifications
S y s o o r c e a Q - M I n d V R V C o n F X S 1-1 Technical Specifications FXSQ20MVE9 FXSQ25MVE9 FXSQ32MVE9 FXSQ40MVE9 FXSQ50MVE9 FXSQ63MVE9 Capacity Cooling Heating Power Input (50Hz) Cooling 0.110... - Page 4 • Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 Specifications 1-1 Technical Specifications FXSQ20MVE9 FXSQ25MVE9 FXSQ32MVE9 FXSQ40MVE9 FXSQ50MVE9 FXSQ63MVE9 Notes Nominal cooling capacities are based on : indoor temperature : 27°CDB, 19°CWB, outdoor temperature : 35°CDB, equivalent refrigerant piping : 7.5m (horizontal) Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB,...
-
Page 5: Electrical Specifications (50Hz)
Nominal heating capacities are based on : indoor temperature : 20°CDB, outdoor temperature : 7°CDB, 6°CWB, equivalent refrigerant piping : 7.5m (horizontal) Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat. 1-2 Electrical Specifications (50Hz) FXSQ20MVE9 FXSQ25MVE9 FXSQ32MVE9 FXSQ40MVE9 FXSQ50MVE9 FXSQ63MVE9... -
Page 6: Electrical Specifications (60Hz)
• Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 Specifications 1-3 Electrical Specifications (60Hz) FXSQ20MVE9 FXSQ25MVE9 FXSQ32MVE9 FXSQ40MVE9 FXSQ50MVE9 FXSQ63MVE9 Power Supply Name Phase Frequency Voltage Current Minimum circuit amps (MCA) Maximum fuse amps (MFA) Full load amps (FLA) Voltage range... -
Page 7: Safety Device Settings
• Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 Safety device settings FXSQ-MVE Safety devices FXSQ20MVE FXSQ25MVE FXSQ32MVE FXSQ40MVE FXSQ50MVE FXSQ63MVE FXSQ80MVE FXSQ100MVE FXSQ25MVE __________ FXSQ MVE PC boad fuse 250V 10A 250V 10A 250V 10A 250V 10A 250V 10A 250V 10A 250V 10A 250V 10A... -
Page 8: Capacity Tables
• Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 Capacity tables 4 - 1 Cooling capacity tables FXSQ-M TC: Total Capacity;kW - SHC: Sensible capacity; kW Indoor air temperature Outdoor Nominal 14.0°CWB 16.0°CWB 18.0°CWB 19.0°CWB 20.0°CWB 22.0°CWB 24.0°CWB Unit size air temp. - Page 9 • Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 Capacity tables 4 - 1 Cooling capacity tables FXSQ-M TC: Total Capacity;kW - SHC: Sensible capacity; kW Indoor air temperature Outdoor Nominal 14.0°CWB 16.0°CWB 18.0°CWB 19.0°CWB 20.0°CWB 22.0°CWB 24.0°CWB Unit size air temp.
-
Page 10: Heating Capacity Tables
• Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 Capacity tables 4 - 2 Heating capacity tables FXSQ-M Indoor air temp.: °CDB Outdoor air temp Nominal Unit size 16.0 18.0 20.0 21.0 22.0 24.0 Capacity °CDB °CWB -19.8 -20.0 -18.8 -19.0 -16.7 -17.0... - Page 11 • Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9 Capacity tables 4 - 2 Heating capacity tables FXSQ-M Indoor air temp.: °CDB Outdoor air temp Nominal 16.0 18.0 20.0 21.0 22.0 24.0 Unit size Capacity (°CDB) (°CWB) -19.8 -20.0 -18.8 -19.0 -16.7 -17.0...
-
