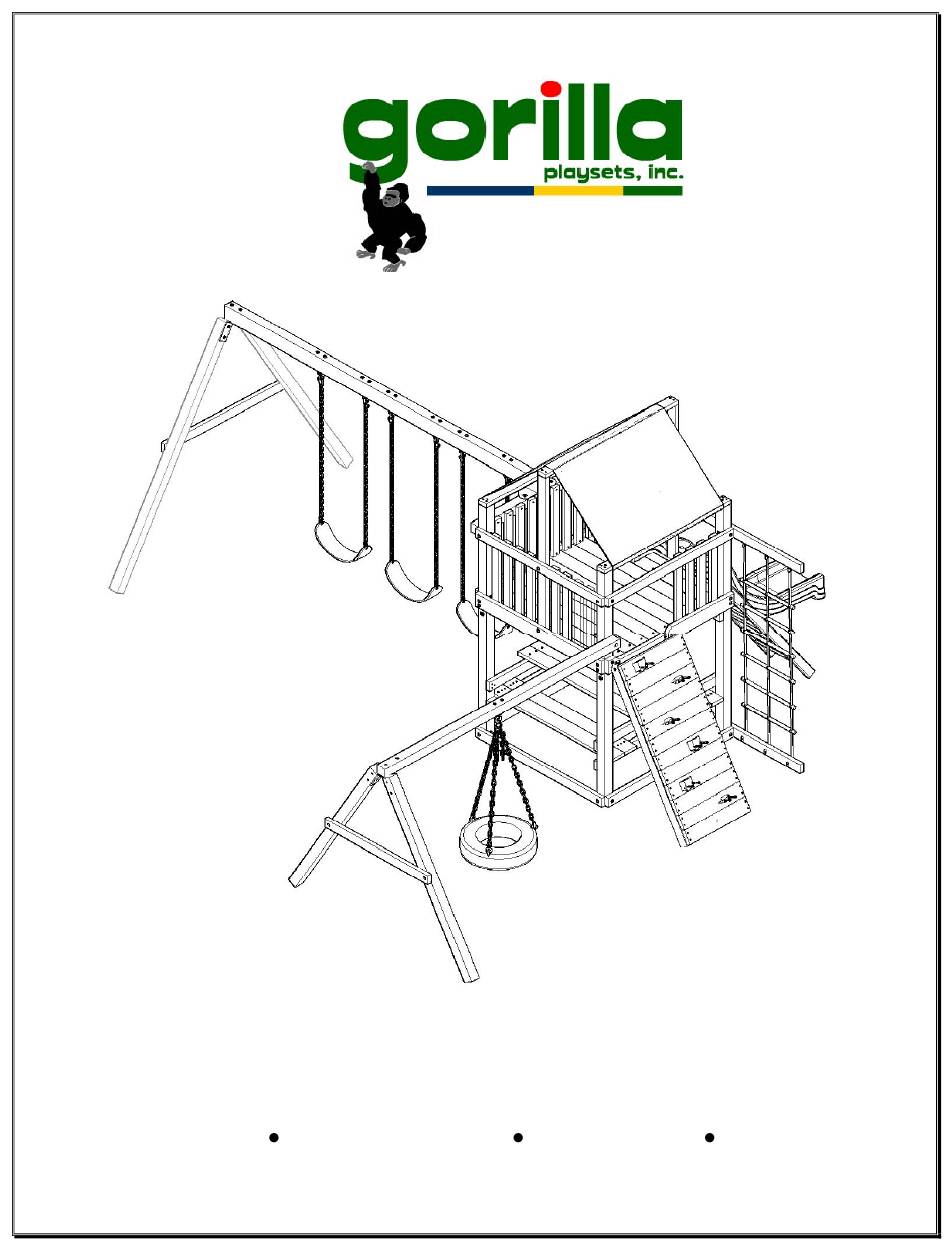

- Page 1 Congo Climber II 2007 Copyright © 2007 Gorilla Playsets, Inc. All Rights Reserved Made in the U.S.A. Gorilla Playsets, Inc. 190 Etowah Industrial Ct. Canton, GA 30114 (800) 882-0272...
- Page 2 IMPORTANT INFORMATION: IF YOU HAVE MISSING OR DAMAGED PARTS OR NEED ASSISTANCE ASSEMBLING, PLEASE CALL gorilla playsets MANUFACTURING DIRECT. (800) 882-0272 FACTORY HOURS – MON.–FRI., 9AM-6PM EST DO NOT RETURN THIS PRODUCT TO THE RETAILER OR CONTACT THE RETAILER DIRECT. THE RETAILER DOES NOT STOCK COMPONENTS.
- Page 3 Gorilla Climber II TABLE OF CONTENTS Warranty and Safety Guidelines………………………………………….….……… 5-7 Kit Contents and Tool List…………..………………………………………………. …8 Site Plan Dimensions…………………………………………………………………….9 Missing or Damaged Items Replacement Procedure...…………….……….………...10 Hardware, lumber, and accessories…………………………………………………13-21 Framing the playset...…………………………………………………..…….… steps 1-7 Mounting sandbox and lower panel boards…..…………………………..… steps 8-11 Constructing deck and upper panel boards.….……..………………..……...
- Page 4 Yet you’ll appreciate how quick and easy construction really is! Our playset kits are designed for children ages 3 to 12. gorilla playsets® believes every child should have a playset and with our kits they can! You can rest assured your new playset is safe, durable and designed to hold up to the elements.
- Page 5 This decision is subject to verification of the defect upon delivery of the defective part to gorilla playsets® at 190 Etowah Industrial Court, Canton, Georgia 30114. Any part(s) returned to gorilla playsets®...
- Page 6 Safety and Maintenance Tips for Your New Play Set: • It is recommended that on site adult supervision for children of all ages be present while playground equipment is in use. • Please restrict children from walking close to, in front of, behind or between moving items.
- Page 7 Play Set Surfacing Recommendations: Below are some of the recommendations that the U.S. Consumer Product Safety Handbook for Public Playground Safety Commission (CPSC) offers from its 1. Protective Surfacing - Since almost 60% of all injuries are caused by falls to the ground, protective surfacing under and around all playground equipment is the most critical safety factor on playgrounds.
- Page 8 LEVELING YOUR FORT DURING ASSEMBLY • Complete steps1-11 which will be the basic frame of the fort {i.e. four center posts with base (sand box boards) and deck supports} • Position in the most level area chosen for the play set, keeping in mind the location and size of the swing beam, ladder, slides, etc.
-
Page 9: Kit Contents
GORILLA CONGO CLIMBER II KIT CONTENTS COMPONENTS Description Check List (Swings, Slides, Accessories) Swingbelts w/ Chains __________ Marine Grade Vinyl Tarp __________ Rope Ladder (assembled) __________ 10ft. Wave Slide __________ Climber Assembly Manual __________ Rockwall Grips (assorted colors) __________ Tire Swing w/ Swivel... - Page 10 Please familiarize yourself with the manual, parts/components and general construction process of your new playset before getting started. SITE PLAN: 17.5’ 20.5’ Playset height: 10 ½’ Approximate assembly time: 8 – 12 hours { 3 foot unobstructed safety perimeter around playset required, 6 foot recommended }...
- Page 11 General Info to Review before Installation This page is a list of definitions and explanations used throughout our instructions to aid you in the assembly of your playset. Offset Holes- Throughout the installation procedure we will refer to parts with offset holes. This refers to the orientation of the holes on board.
- Page 12 IMPORTANT INFORMATION: IF YOU HAVE MISSING OR DAMAGED PARTS OR NEED ASSISTANCE ASSEMBLING, PLEASE CALL gorilla playsets MANUFACTURING DIRECT. (800) 882-0272 FACTORY HOURS – MON.–FRI., 9AM-6PM EST DO NOT RETURN THIS PRODUCT TO THE RETAILER OR CONTACT THE RETAILER DIRECT. THE RETAILER DOES NOT STOCK COMPONENTS.
- Page 13 3/8” x 9” CARRIAGE BOLT QUANTITY: 1 3/8” x 6 1/2” CARRIAGE BOLT QUANTITY: 17 3/8” x 4” CARRIAGE BOLT QUANTITY: 2 3/8” x 3 1/2” CARRIAGE BOLT QUANTITY: 2...
- Page 14 5/16” x 3 1/2” HEX HEAD LAG BOLT QUANTITY: 6 3/8” x 3 1/2” HEX HEAD LAG BOLT QUANTITY: 22 5/16” x 1 1/2” HEX HEAD BOLT QUANTITY: 16 5/16” x 2 1/2” HEX HEAD BOLT QUANTITY: 4 5/16” x 4 1/2” HEX HEAD BOLT QUANTITY: 32 5/16”...
- Page 15 #14 x 1 1/4” PAN HEAD SCREW QUANTITY: 28 #8 x 1 1/4” WOOD SCREW---SLIDE QUANTITY: 2 #8 x 2” WOOD SCREW-ROCK WALL, DECKS, PT, P SLAT QUANTITY: 135 #8 x 2 1/2” WOOD SCREW-ROOF, WALLS QUANTITY: 116 BOLT CAP QUANTITY: 22 3/8”...
- Page 16 16 16...
- Page 22 Common installation practice Installing T-nuts When installing T-nuts into the wood, use a smooth faced hammer to set the face of the T-nut flush into the wood. Corner Post T-nut Insert the barrel of the T-nut into the predrilled hole. Using a smooth faced hammer, drive the T-nut until the face of the T-nut is flush to the wood.
-
