OfiTE 170-00-2 Instruction Manual

OfiTE 170-00-2 Instruction Manual

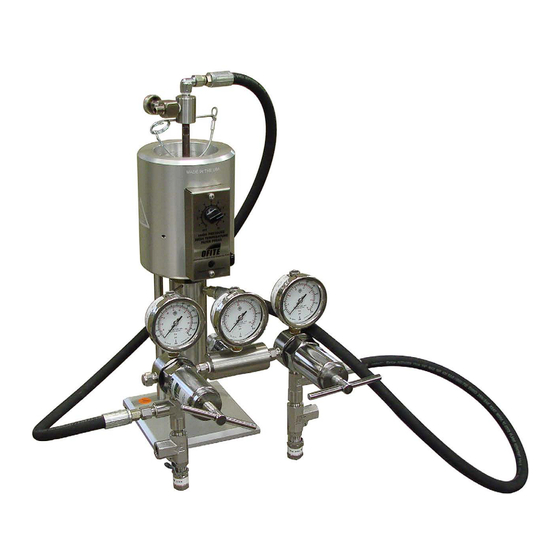

Hthp filter press for cement testing with 175-ml, double-capped test cell and n2 pressuring manifold

Advertisement

Quick Links

HTHP Filter Press for Cement Testing
with 175-mL, Double-Capped Test Cell and N
Pressuring Manifold
2
#170-00-2: (115 V)
#170-01-2: (230 V)
Instruction Manual
Updated 7/31/2017
Ver. 3.0
OFI Testing Equipment, Inc.
11302 Steeplecrest Dr. · Houston, Texas · 77065 · U.S.A.
Tele: 832.320.7300 · Fax: 713.880.9886 · www.ofite.com
Copyright OFITE 2015
©

Advertisement

loading
Need help?

Need help?

Do you have a question about the 170-00-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OfiTE 170-00-2

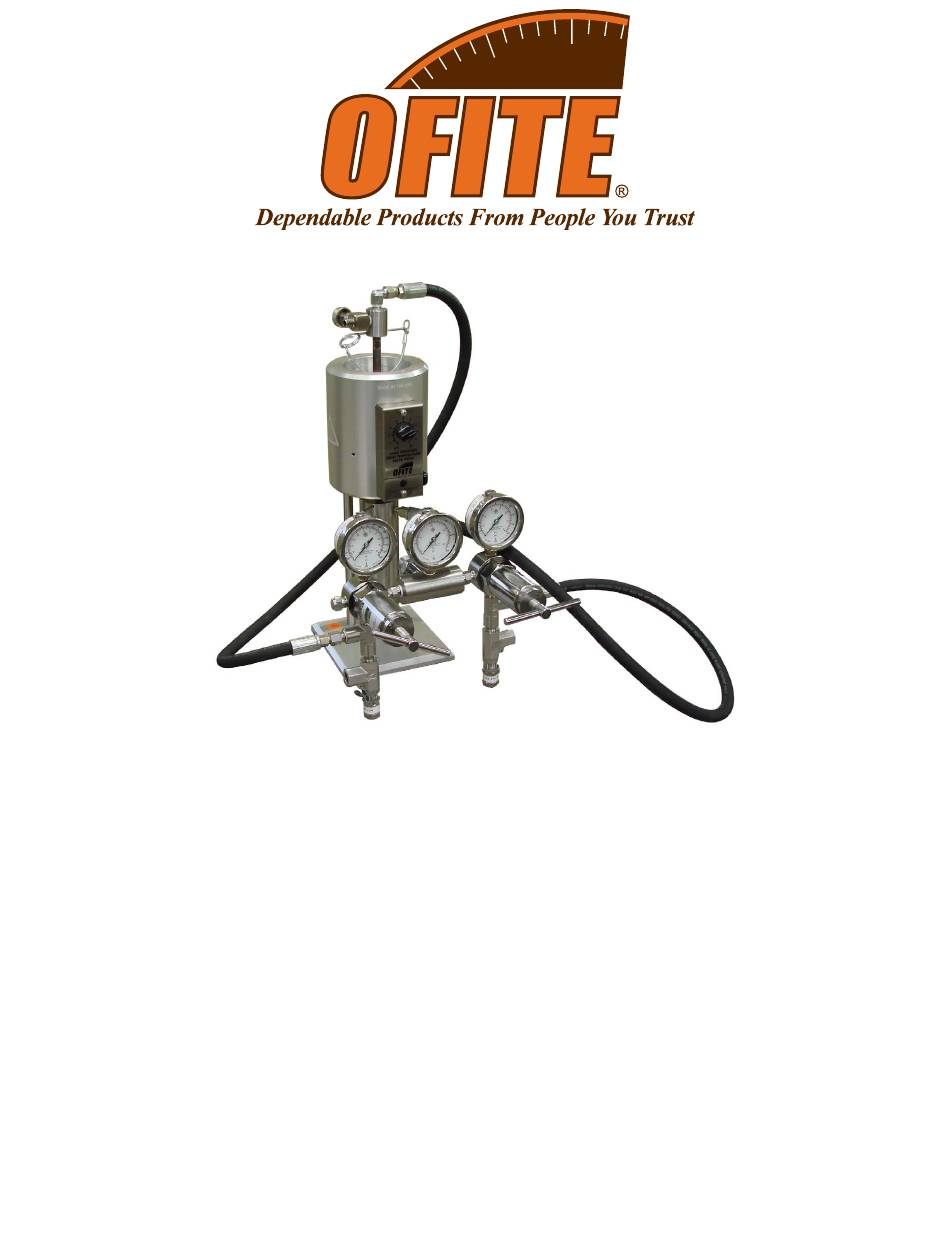

  • Page 1 175-mL, Double-Capped Test Cell and N Pressuring Manifold #170-00-2: (115 V) #170-01-2: (230 V) Instruction Manual Updated 7/31/2017 Ver. 3.0 OFI Testing Equipment, Inc. 11302 Steeplecrest Dr. · Houston, Texas · 77065 · U.S.A. Tele: 832.320.7300 · Fax: 713.880.9886 · www.ofite.com Copyright OFITE 2015 ©...
  • Page 2: Table Of Contents

    Table of Intro....................2 Specifications .................2 Contents Components ...................3 Safety ....................5 Diagrams ..................6 Operation..................7 Warranty and Return Policy ............11 OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 3: Intro

    Nitrogen (at least 1,500 PSI / 10,343 kPa) - Not Included Test Cell Capacity: 175 mL Power Requirement: #170-00-2: 115V; #170-01-2: 230V Heater: 400 Watt OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 4: Components

    1350 / 750 PSI (9,308 / 5,171 kPa) Nitrogen Manifold #142-39 Pipe Plug, ¼", Qty: 2 #170-20 Manifold Block #170-32 Needle Valve, Male, ⅛" × ⅛" NPT #171-23-1 Safety Pin with Lanyard #171-24-002 Regulator, Qty: 2 OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 5: Valve Stem, Qty

    50° – 500°F (10° – 260°C) #170-07 O-ring for Back Pressure Receiver, Qty: 3 #170-13-3 Test Cell O-ring, Viton, Qty: 24 #170-16 Valve Stem, Qty: 4 #170-17 Valve Stem O-ring, Qty: 48 #170-18 Detachable Screen with 325 Mesh and 60 Mesh Backup, Qty: 4 #170-26-1 Hardened Locking Screw, Qty: 24 #171-23-1 Safety Pin with Lanyard, Qty: 2 OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 6: Safety

    Due to the high temperatures and pressures involved in this test, extreme care must be exercised at all times. All safety precautions must be met, especially in the cell breakdown procedure after the filtration procedure has been completed. OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 7: Diagrams

    (#170-00-1 or #170-01-1) Screen (#170-18) Locking Screw (#170-26-1) Outlet Valve Stem (#170-16) Safety Pin (#171-23-1) With Lanyard Back Pressure Receiver (#170-06-1) Bleeder Valve (#170-32) OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 8: Operation

    Removable Screen Screws (#170-26-1) (#170-18) Cell Cap (#170-24) Valve Stem (#170-16) Allen Wrench Cell Cap O-ring 5/32 (#170-13-3) " (#170-27) 3. Prepare the test sample according to API specifications. Carefully pour the sample into the cell. Do not fill the cell closer than 0.5" (13 mm) from the o-ring groove to allow for heat expansion of the fluid. Be careful not to spill fluid on the o-ring groove inside the cell. OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 9 (at least 1,500 PSI) to the center inlet on the pressure manifold. Open the pressure release valve on the nitrogen bottle and note the bottle pressure as registered on the middle manifold gauge. OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 10 Turn the regulator t-screws counter-clockwise to close off the flow of pressurized gas. Open the valve on the back pressure receiver to collect all of the filtrate in the graduated cylinder. Release the remaining pressure from the nitrogen manifold by opening the bleeder valve on the manifold block. OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 11 16. Clean and dry the apparatus thoroughly after each use. Inspect and, if necessary, replace all of the o-rings. OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ofite.com...
  • Page 12: Warranty And Return Policy

    In the event that OFITE is requested to provide customized research and development for the buyer, OFITE shall use its best efforts but makes no guarantees to the buyer that any products will be provided. OFITE makes no other warranties or guarantees to the buyer, either express or implied, and the warranties...

This manual is also suitable for:

170-01-2
