Castle Creations CC BEC 2.0 Quick Start Manual

CC BEC COMPARISON CHART
CC BEC (for reference) CC BEC Pro (for reference)
010-0004-00 010-0004-01
APPLICATIONS:
Crawlers, racing, sport Helis, 1:5 scale cars, giant scale
planes, night flyers planes, UAS
DIMENSIONS:
L: 1.70" (43mm) L: 1.86" (47mm)
W: 0.57" (15mm) W: 1.30" (33mm)
H: 0.48" (12mm) H: 0.86" (22mm)
WEIGHT:
0.5 oz (13g) 1 1.4 oz (40g) 1
PEAK CURRENT:
10A 2 20A 2
CONTINUOUS OUTPUT CURRENT:
2S - 3S: 7A 2S - 4S: 15A
3S - 6S: 5A 5S - 6S: 13A
7S - 8S: 11A
9S - 10S: 9A
11S - 12S:8A
ADJUSTABLE OUTPUT VOLTAGE:
4.8V to 9V 3 4.8V to 12.5V 3
DEFAULT SETTING
5.1V 5.1V
MAX VOLTAGE:
6S LiPo (25.2V) Surface: 8S (33.6V)
Airplanes: 10S (42V)
Helis ( no brake): 12S (50.2V)
CC BEC 2.0 WP PEAK CURRENT RATING
OUTPUT VOLTAGE SETTING
LiPo Cells <5.5V 6V 7V
8S -14S 15A 14A 13A
4S - 6S 14A 13A 12A
3S 13A 12A 11A
2S 12A 11A 11A
1. Weight with full length wires, power wires may be shortened to save weight depending on application
2. Ratings are determined with a 5mph airflow at 77º F (25º C).
3. Adjustable via Castle Link, sold separately.
This is a high power product with the potential to be very
dangerous. Please read the safety information before
use. This product may contain chemicals known to the
State of California to cause cancer and or birth defects or
other reproductive harm.
U.S. Patent # 7400103, 7492122, 7579796, 7440516,
8287328, and 8678875 - Other patents pending.
Product designed and manufactured in Olathe, Kansas USA.

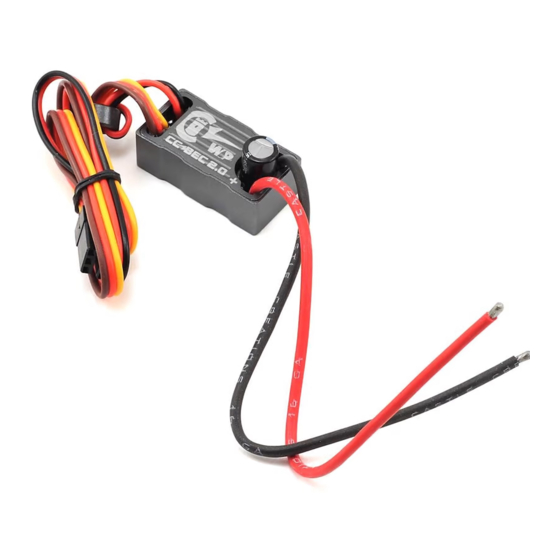

CC BEC 2.0 WP (in package)
010-0153-00
Crawlers, marine, sea planes, UAS, industrial
L: 1.37" (35mm)
W: 0.69" (18mm)
H: 0.75" (19mm)
1.0 oz (28g) 1
15A 2 (dependent upon input voltage and
output voltage. See table below.)
4.75 - 6.0V output: 10A
6.25 - 8.5V output: 9A
8.75 - 10V output: 8A
10.25 - 12.0V output: 7A
4.75V to 12V 3
5.25V
Surface: 12S (50.4V)
Air (no brake): 14S (58.8V)
Air (w/brake): 12S (50.4V)
8V 9V 10V & 11V 12V
12A 11A 10A 9A
12A 11A 10A 9A
11A 10A — —
— — — —
P/N: 010-0153-00
• WATERPROOF
• WIDE INPUT RANGE 2S - 14S (6V - 58.8V)
• 15 AMP (5.25V@12S) PEAK OUTPUT CURRENT
• 4.75 - 12V ADJUSTABLE OUTPUT VOLTAGE
