Castle Creations CC BEC 2.0 Quick Start Manual page 2

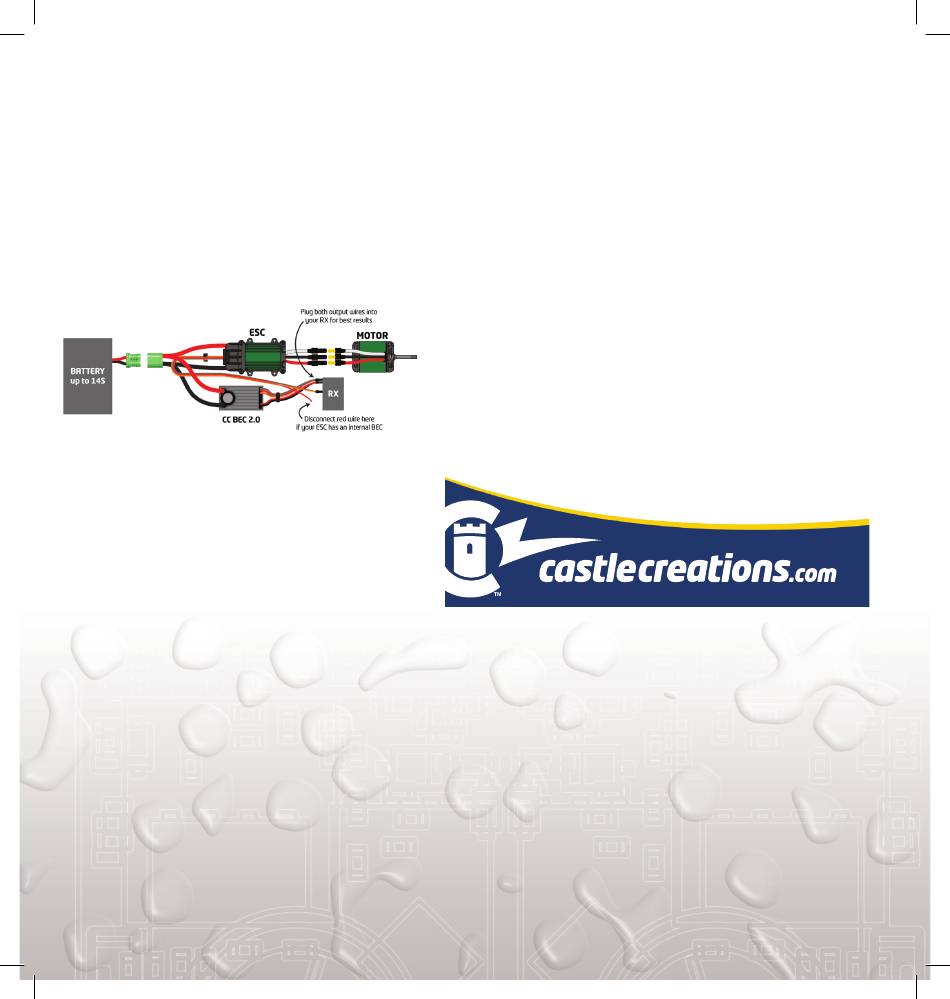

Single battery configuration
1. Solder the CC BEC 2.0 black ground wire to ESC's
black battery ground wire.
2. Solder the CC BEC 2.0 red power wire to ESC's red
battery power wire.
3. If your ESC has an internal BEC, you must disconnect
the red wire on the ESC's receiver lead.
4. If your ESC does not have an internal BEC, do NOT
disconnect the red wire.
5. Plug both output leads of the CC BEC 2.0 into separate
channels on your receiver.
Voltage Output
Default setting: 5.25 volts. User selectable in 0.25 volt
increments between 4.75 and 12 volts.
Castle Link USB Interface required to change output
voltage (sold separately).
Low Input Voltage
In the event that the input voltage falls below the desired
output voltage, the CC BEC 2.0 output is essentially equal
to the input level. CC BEC 2.0 cannot output more voltage
than the battery it draws from. The CC BEC 2.0 will not
operate or produce any output when input voltage drops
below 3.5 volts.
RF Noise
Always range check your model. This device should be
treated much like a speed control. Try to keep as much
distance as possible between the radio receiver and
components and the CC BEC unit.
