Castle Creations MAMBA XLX2 Quick Start Manual

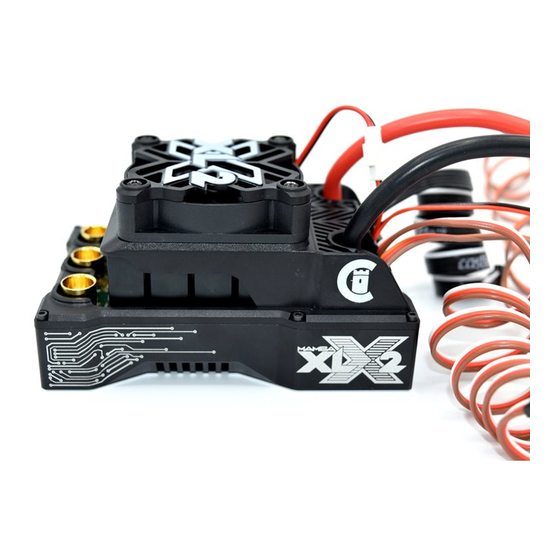

ABOUT THE MAMBA XLX2
Please note that while the Mamba XLX2 is capable of handling incredible amounts
of power, your motor must also be up for the task. Always run your motor within
the manufacturer's specs. Monitor motor, battery, and controller temps carefully
and never let the motor get above 100° C (212° F). Excessive heat in the motor can
damage the motor, the Mamba XLX2, and the batteries.
Always start with stock gearing. If you wish to change the gearing, motor, or
battery, check your motor temperature often on the first run. If the motor gets
too hot, increase the spur size, reduce the pinion size, or reduce the pack voltage.
The Mamba XLX2 is programmable via transmitter (see Driver's Ed Guide) or
settings may be programmed via computer with a Castle Link USB adapter (coupon
for free adapter included in package). Program with a mobile device using a Castle
B•Link Bluetooth® Adapter (sold separately) or using a Castle Field Link Portable
Programmer (sold separately). You must disconnect the AUX WIRE prior to
connecting your ESC to the Castle Link USB adapter to avoid damage to the
USB adapter. See the Drivers' Ed Guide for more instructions on transmitter
programming and the Castle Link system ("Tuning with Castle Link" and
"Transmitter Programming").
The Mamba XLX2 features data logging. You will be able to measure and record
important power system information during your race, turn-by-turn. After your
run, you can download and analyze this log using Castle Link. You will be able to
inspect many parameters including battery voltage, motor RPM, ESC temperature
and more. Additional information about using the data logging features can be
found in the Driver's Ed Guide ("Data Logging").
540 North Rogers Road, Olathe, KS 66062
(913) 390-6939 (ext. #1 Support, #2 Service)
Product Support: castlecreations.com/contact-support
Service: castlecreations.com/contact-service
Website: www.castlecreations.com
Revised 07/2020 Copyright 2020 © Castle Creations
Application
Guidelines
Input Voltage
Range
BEC
Specifications
Sensors
Product Use
Statement*
*Failure to adhere to the Product Use Statement constitutes a violation of the warranty agreement, and will
result in non-warranty service fees to repair or replace damaged products.
P/N:095-0405-00
MAMBA XLX2 SPECIFICATIONS
1/5 scale RC Hobby vehicles weighing up to 42lbs.
th
Min: 3S LiPo, Max: 8S LiPo, 33.6V
Adjustable from 5V to 8.5V (20A peak), default 5.5V.
Yes, with pre-installed Direct Connect Sensor Wire (dust cover
included in package).
• Applying voltages higher than 33.6V will cause irreparable
damage to your controller.
• WARNING : You must disconnect the AUX wire from your radio
before connecting to Castle Link. Failure to do so may result in
damage to your Castle Link and/or computer.
• The Mamba XLX2 is a high-performance controller; you must
use high-discharge cells in your high-performance application
to ensure vehicle performance (see Driver's Ed Guide, "A Word
About Batteries").
• The Mamba XLX2 requires the use of connectors designed for
150+ amps continuous. Ex. Castle 6.5mm polarized or 8mm
bullet (Driver's Ed Guide, "Connectors and Power Wiring").
• The Mamba XLX2 is not intended for human or animal
propulsion.
