Castle Creations Mamba Micro X2 Quick Start Manual

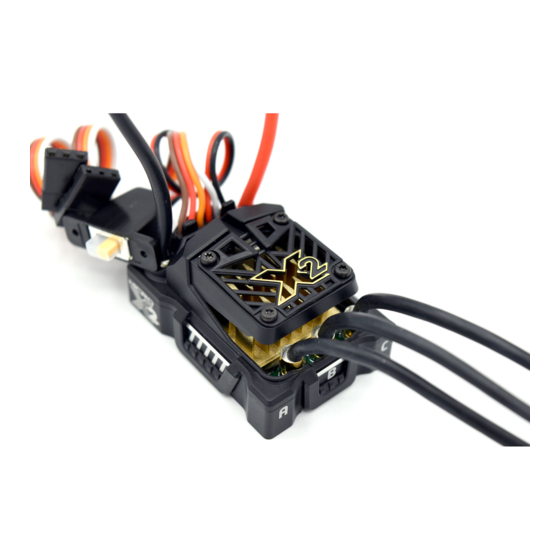

ABOUT THE MAMBA MICRO X2
Please note that while the Mamba Micro X2 is capable of handling incredible
amounts of power, your motor must also be up for the task. Always run your
motor within the manufacturer's specs. Monitor motor, battery, and controller
temps carefully and never let the motor get above 180ºF. Excessive heat in
the motor can damage the motor, the Mamba Micro X2, and your batteries.
Always start with stock gearing. If you wish to change the gearing, motor, or
battery, you must check your motor temperature frequently on the first run.
If the motor gets too hot, reduce the pinion size, increase the spur size, or
reduce the pack voltage. Additional information about gearing can be found
online at www.castlecreations.com/microxgearing.
The Mamba Micro X2 is programmable via your transmitter, Windows® based
PC and a Castle Link USB adapter (available free with enclosed coupon), or
B•Link Bluetooth® Adapter (purchased separately). See the Driver's Ed Guide
for more instructions on transmitter programming and the Castle Link system
("Transmitter Programming", and "Tuning with Castle Link").
For more detailed information regarding Getting Started,
Throttle Calibration, using Castle Link, or Transmitter
Programming, please refer to the Driver's Ed Guide by
visiting: www.castlecreations.com/MICROX2DEG
Revised 01/2022 Copyright 2022 © Castle Creations
GETTING STARTED
1. Solder a high quality battery connector to the ESC (see Driver's Ed Guide
"Connectors and Power Wiring" ).
2. Mount the ESC and motor into the vehicle.
3. Connect motor to the ESC (see Driver's Ed Guide, "Motor Wiring" ).
4. Plug the RX wire and AUX wire in (see RECEIVER CONNECTION section on the
opposite side).
5. Calibrate your ESC to your radio. (See Driver's Ed Guide, "How to Calibrate
the ESC" ).
YOU ARE NOW READY TO GO!
Motor A
Motor B
P/N:095-0421-00
Negative Battery
Wire
Sensor Harness/Dust Cover
LEDs
Positive Battery
Motor C
RX Wire
AUX Wire
Wire
Waterproof
Switch
