PROFIPOWER
3.2.2. Profibus Connections
For profibus connection, a standard connector SUB-D 9 pins is used
according to the definition of the standard EN 50170. The wiring for the
connector of nine pins is shown in the attached figure.
If additionally, more information is required, refer to "Installation Guide
of PROFIBUS DP/FMS" of the profibus users group, where you can
find more detailed information about the connection.

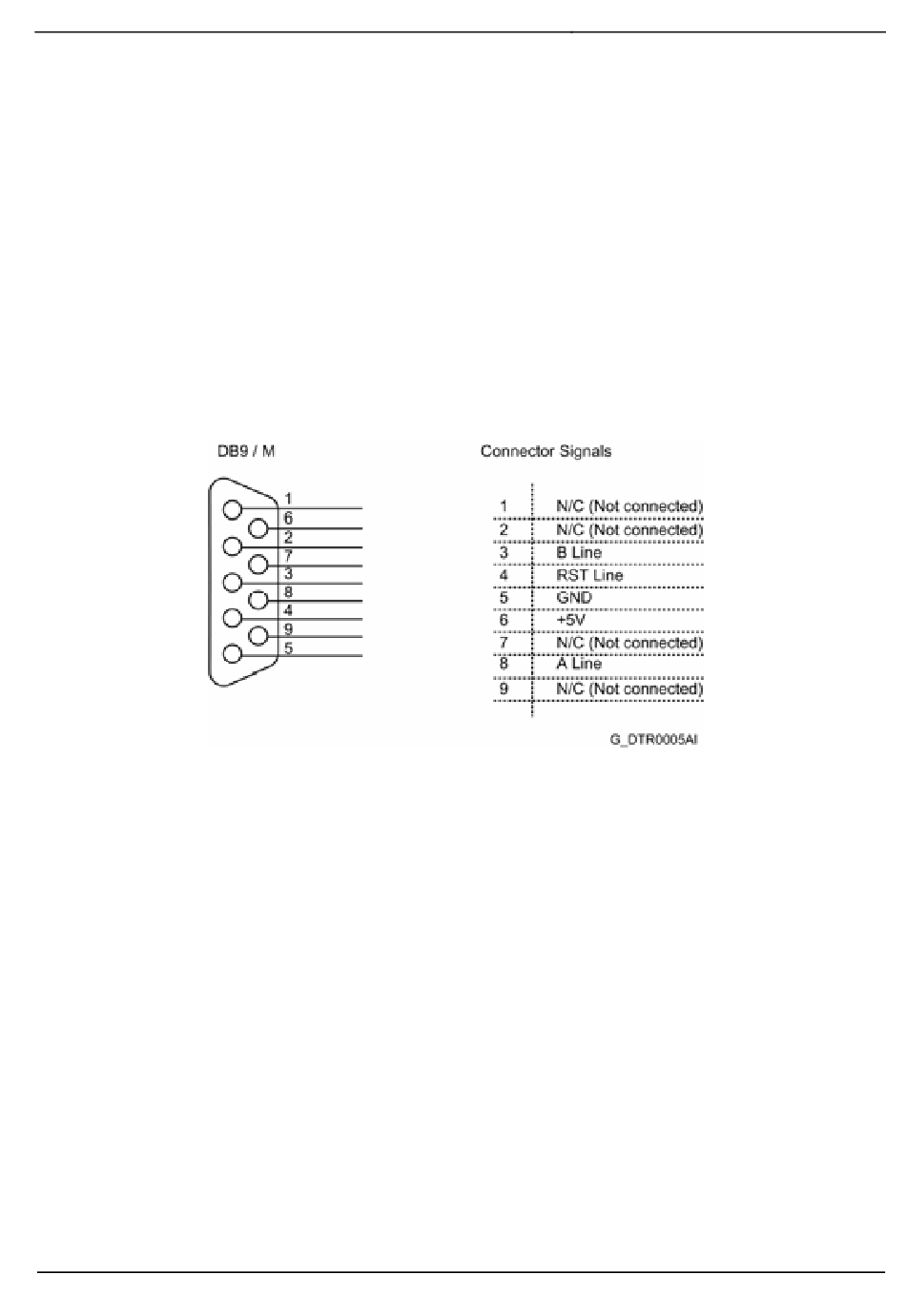

Figure 3.3 Connections of the connector SUB-D 9 pins
16
INSTALLATION AND CONNECTION
POWER ELECTRONICS
