PROFIPOWER
2.1.5. Profibus-DP Interface
Profibus – DP Interface.
Transmission speed Auto-detected at 12Mb.
Diagnosis data length of 13 Bytes (maximum).
Data length of Set up of 176 Bytes (maximum).
Configuration data length of 8 Byte (maximum).
Polling length of 120 Bytes (maximum).
File GSD PWE_05DD.GSD.
2.2. Dimensions

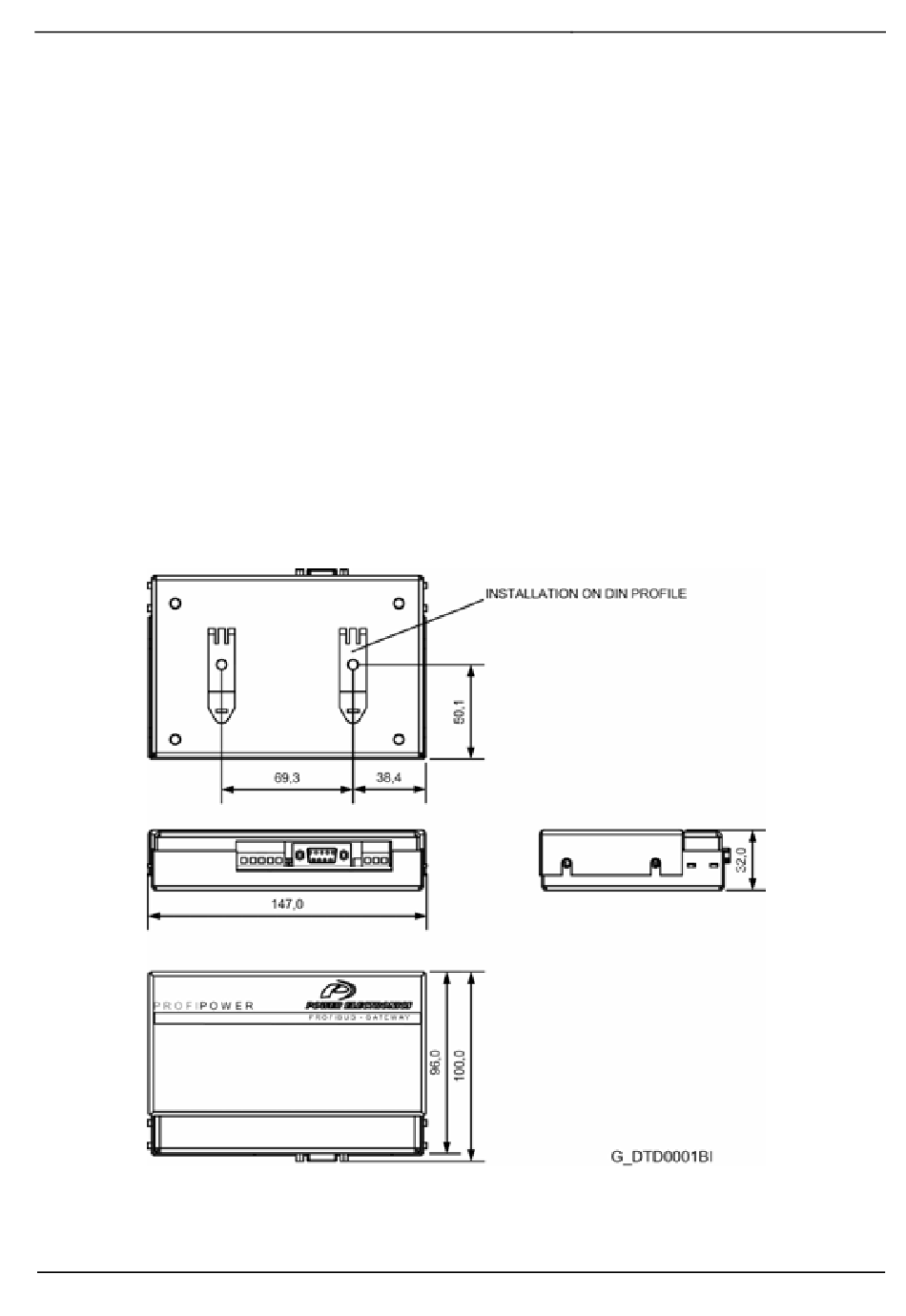

External dimensions of Profipower gateway can be observed in the
attached figure. The device is ready to be installed on Din profile.
Figure 2.1 Profipower dimensions. Modbus – Profibus gateway
12
TECHNICAL CHARACTERISTICS
