Campbell Hausfeld FP260094 Quick Start Manual

How to use an air powered drain Cleaner
Let us show you how to use an air
powered drain cleaner to quickly
and easily remove a clog!
Note: Before starting your project, read the owner's manual for
safety and operating instructions. Always wear safety glasses.
Watch our hoW-to video at
WWW.youtube.com/campbellhausfeld
YouTube is a registered trademark of Google, Inc.
LIKE A PRO
MAKES IT EASY TO DO IT

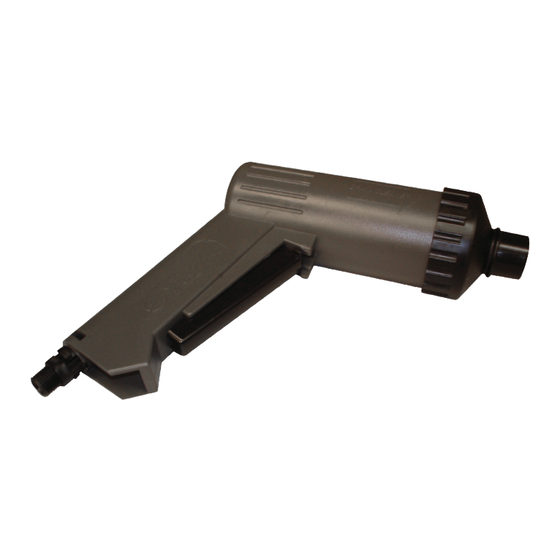

Model FP260094
4
Slide splashback shield onto drain cleaner nose or
extension tube.
8
Cover any overflow opening in the sink with a wet
rag or duct tape. If using a double sink, put a rag in
the other drain opening.
www.chpower.com
WARNING: Do not use the air powered drain cleaner with chemicals in the sink. Use the air-powered drain cleaner before trying any chemical mixture in your drain.
1
Gather tools and supplies needed for your project.
5
Push selected cone onto drain cleaner nose.
9
Turn on faucet and run water until the water level
is above the drain opening. With water at the drain
opening, press the drain cleaner firmly into the
drain opening, squeeze and quickly release the gun
trigger.
chpower.com
2 3
Remove sink drain basket and/or stopper. Turn Select proper cone for drain cleaner by fitting cone
drain shut off (if applicable) to "open" position. into drain opening. The cone should fit down into
the drain about 1/8 inch to 3/4 inch and seal the
drain opening.
6 7
Attach air hose to air compressor and drain cleaner. Turn air compressor on and set pressure between
Plug unit in. 10 to 50 psi. It is recommended to start at 10 psi. If
satisfactory results are not achieved, increase the
pressure. Do not exceed 50 psi.
10 11
If blockage is not removed, repeat step 9. Add After blockage is removed, flush drain using
more water if necessary and increase air pressure plenty of water to carry the blockage material well
slightly. Do not exceed 50 psi. Wait several
away from water lines. Check sink traps and, if
seconds between air pulses to avoid pressurizing necessary, tighten up leaking joints. Wash off drain
the drain system and damaging the pipes. cleaner with clean water.
IN734000AV 4/10
