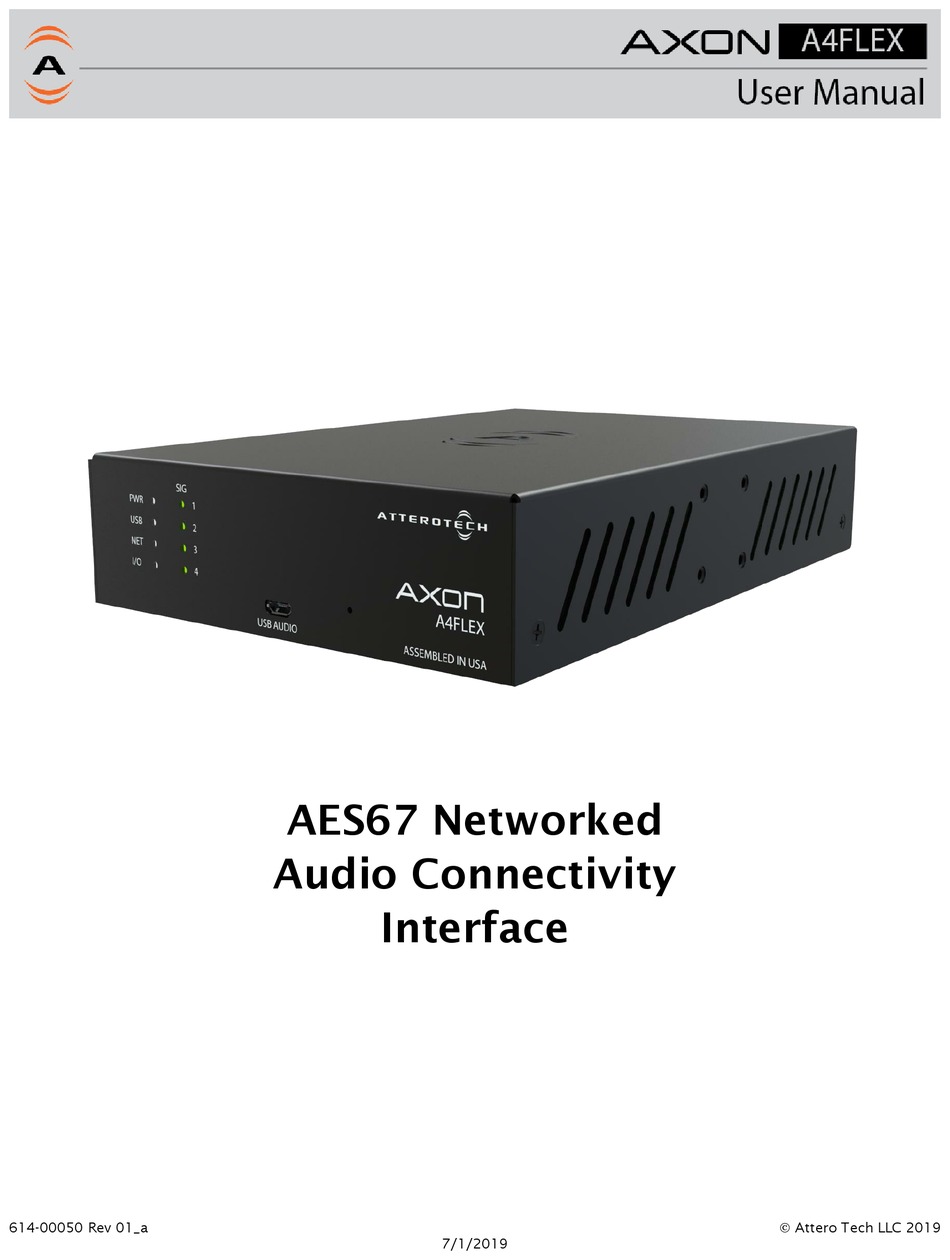

- Page 1 AES67 Networked Audio Connectivity Interface Attero Tech LLC 2019 614-00050 Rev 01_a 7/1/2019...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 Should any defect develop, Attero Tech, LLC will, at our option, repair or replace any defective parts without charge for either parts or labor. If Attero Tech, LLC cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item.
-
Page 4: Table Of Contents
Contents 1 – Overview ..................................................1 1.1 – What’s in the Box ....................................1 1.2 – Optional Accessories ....................................1 1.3 - Device Features - Front Panel ................................. 1 1.4 - Device Features - Rear Panel ................................... 1 2 Product Installation ................................................ 2 2.1 - Mounting ......................................... -
Page 5: Overview
USB audio connection 1 - A4FLEX Front and Rear Factory reset access The Attero Tech AXON A4FLEX is a compact and scalable mic/line connectivity solution for Dante™ and AES67 networked AVC 1.4 - Device Features - Rear Panel systems. With four mic/line inputs (two of which are flex I/O and... -
Page 6: Product Installation
4 - Tray Surface Mounting Configuration 2 - Under Table Surface Mounting *Note: Complete CAD drawings can be downloaded from the Attero Tech website. Please contact Attero Tech for any further product related information that is not accessible Installation Mounting Template on the website. -
Page 7: Power & Network Connectivity
2.2 – Power & Network Connectivity The A4FLEX can be powered using either PoE, PoE+, or a 24V power supply attach to the power jack input. When powering using PoE or PoE+: Attach the Ethernet 1 port to a PoE-enabled port on a PoE switch or midspan injector using a CAT-5e or better cabling. -
Page 8: Independent Vlan Configuration
6 - Independent VLAN Configuration *Note: All Attero Tech products are tested using UTP network cabling and it is recommended that UTP cabling be used when installing them. STP cabling can be used for installation though... -
Page 9: Led Status Indications
The A4FLEX is equipped with various LED indicators. The The A4FLEX product is supported for setup and monitoring within following chart indicates the available LED status information: Attero Tech’s unIFY Control Panel software. Additionally, QSYS Designer plugins are available to provide seamless integration with the QSYS DSP platform. -
Page 10: Audio I/O And Dsp Setup
3.3 – Audio I/O and DSP Setup All audio input, output and internal audio DSP setting may be configured through unIFY Control Panel. Each analog audio input features switchable +48V phantom power, mic/line pad and supports up to 42 dB of adjustable preamp gain in 1 dB steps. -
Page 11: Logic I/O Setup
The A4FLEX supports field firmware updates. The updates are OUT x applied via the network using the smart firmware update tool within the Attero Tech unIFY Control Panel. This software is available on the Attero Tech website. The latest A4FLEX firmware... -
Page 12: Architects & Engineers Specification
The network control interface shall be compliant with the RoHS, WEEE and REACH directives. The network control interface unit shall be Compliant with the EMC/ESD requirements for FCC and CE. The unit shall be the Attero Tech, Axon A4FLEX product. 1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞ (260)496-9668 ⁞ www.atterotech.com... -
Page 13: Device Specifications
Device Specifications Audio Inputs (Mic/Line) Network Connector Type 3.81mm Euro-block, 3 position (16-28 AWG) Physical Layer Ethernet Gain -8 dB to +34 dB gain, 1 dB increments Connector (s) Dual RJ-45 Input Impedance >2K ohms at any gain Cable Quality CAT-5e or better, UTP Maximum Input Levels -8 dB Gain, max input = +16.5 dBu (+24 dBu w/pad),...
