Summary of Contents for Attero Tech unDAES-O
-

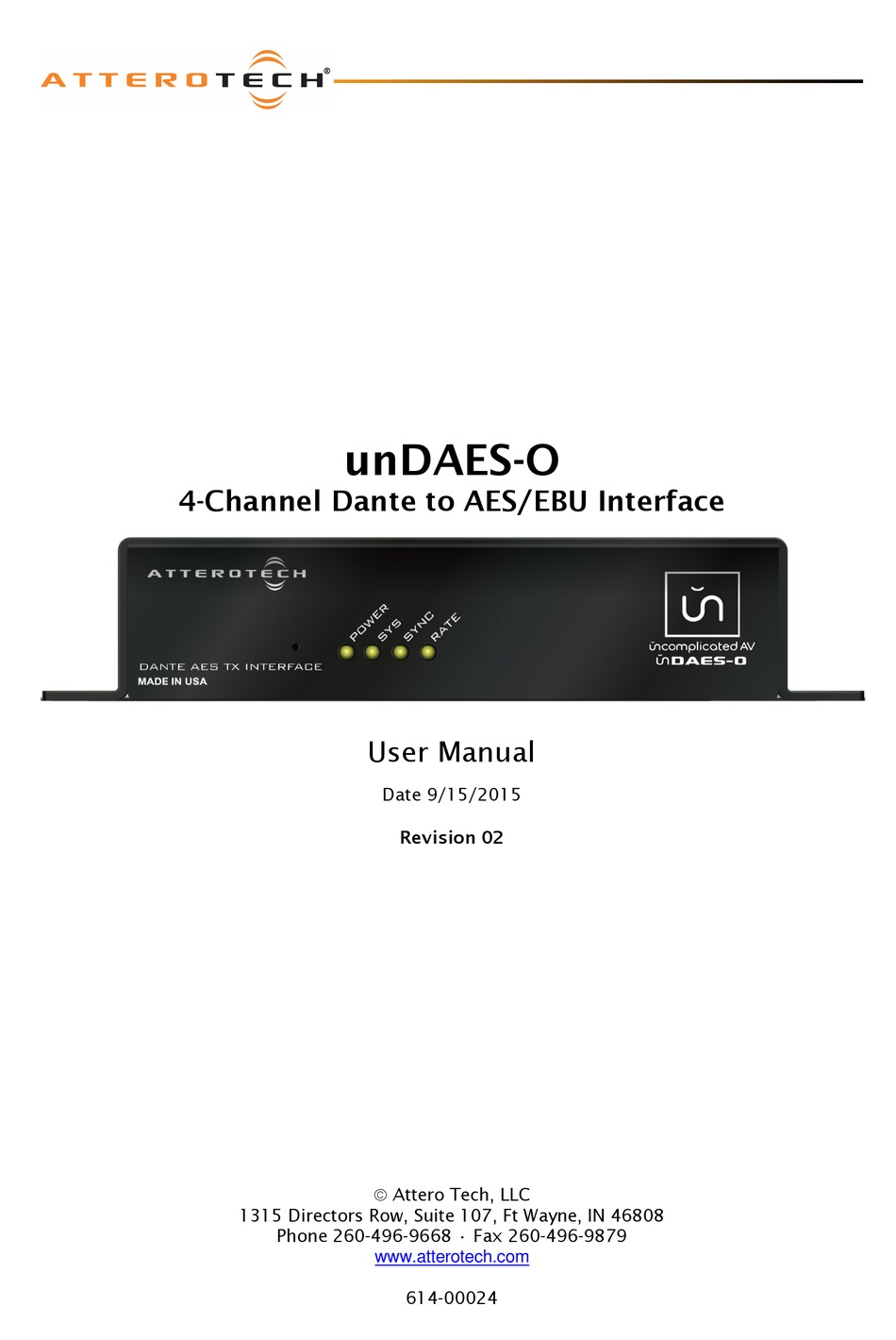

Page 1: User Manual
4-Channel Dante to AES/EBU Interface User Manual Date 9/15/2015 Revision 02 Attero Tech, LLC 1315 Directors Row, Suite 107, Ft Wayne, IN 46808 Phone 260-496-9668 • Fax 260-496-9879 www.atterotech.com 614-00024... -
Page 2: Important Safety Instructions
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. Only use attachments/accessories specified by Attero Tech 11. Use only with the stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. - Page 3 LLC will, at our option, repair or replace any defective parts without charge for either parts or labor. If Attero Tech, LLC cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item. Attero Tech, LLC will pay for the cost of returning your equipment to you.
-
Page 4: Table Of Contents
2.3 – Daisy Chaining and Power Linking ........................... 9 3 – Device Configuration ......................................10 3.1 – IP Address Setup ..............................10 4 – ARCHITECTS & ENGINEERS SPECIFICATION ............................11 4.1 – Device Specifications .............................. 11 © Attero Tech LLC 2015 Page 3 614-00024 Rev 02... -
Page 5: Overview
Dante Ethernet switch infrastructure. Alternatively, the unDAES-O can be powered from an external +24VDC via the barrel jack input or from the PWR LINK Phoenix-style input connector. The PWR LINK feature is intended to be used with other Attero Tech devices supporting the PWR LINK connections to supply power between daisy chained devices. -
Page 6: What's In The Box
(2) PWR LINK Phoenix Connectors 1.2– Optional Extras All of the following are available as options for the unDAES-O that may be ordered separately: A 24 V DC power supply is available if PoE or PWR LINK power is not required or available ©... -
Page 7: Device Installation
Power Link I/O – Top = PWR LINK IN (+24VDC), Bottom = PWR LINK OUT (+24VDC) *Note: The unDAES-O has a label on one of the mounting flanges that shows the device MAC address. This is important for initial device identification as the last six digits make up part of the devices default network name that is shown when the device is detected by Dante Controller. -
Page 8: Mounting
Alternatively, if rack-mounting is desired, industrial strength hook and loop fasteners (Velcro®) work well for securing the unDAES-O to a standard 1-RU rack shelf. The width of the unit allows for two unDAES-0 devices to be installed next to each other on a standard 1-RU rack shelf. -
Page 9: Status Leds
*Note: The Identify function is indicated by both the SYS and SYNC LEDs flashing green simultaneously. This function is initiated by the user issuing an Identify command using Dante Controller. © Attero Tech LLC 2015 Page 8 614-00024 Rev 02... -
Page 10: Daisy Chaining And Power Linking
2.3 – Daisy Chaining and Power Linking A unique feature of the unDAES-O is its support of daisy chaining. This allows an unDAES-O unit to connect to other Attero Tech devices that supports daisy-chain support and utilize a single home run of Ethernet cabling back to the switch thus saving on installation costs. -
Page 11: Device Configuration
Dante routes. In order to configure an unDAES-O to setup audio routing, the PC will need to be able to communicate with it over the network. While all Dante devices will be discovered regardless of the IP address of the PC and the individual devices, routing setup can only occur if the PC and each device have compatible IP addresses. -
Page 12: Architects & Engineers Specification
< 3 W THD: < 0.001% 6.45” W x 1.06” H x Dimensions 3.45” D ≈ 0.74 lbs Weight FCC Part 15 Class A Compliance CE (EN 55022 Class A) © Attero Tech LLC 2015 Page 11 614-00024 Rev 02...
