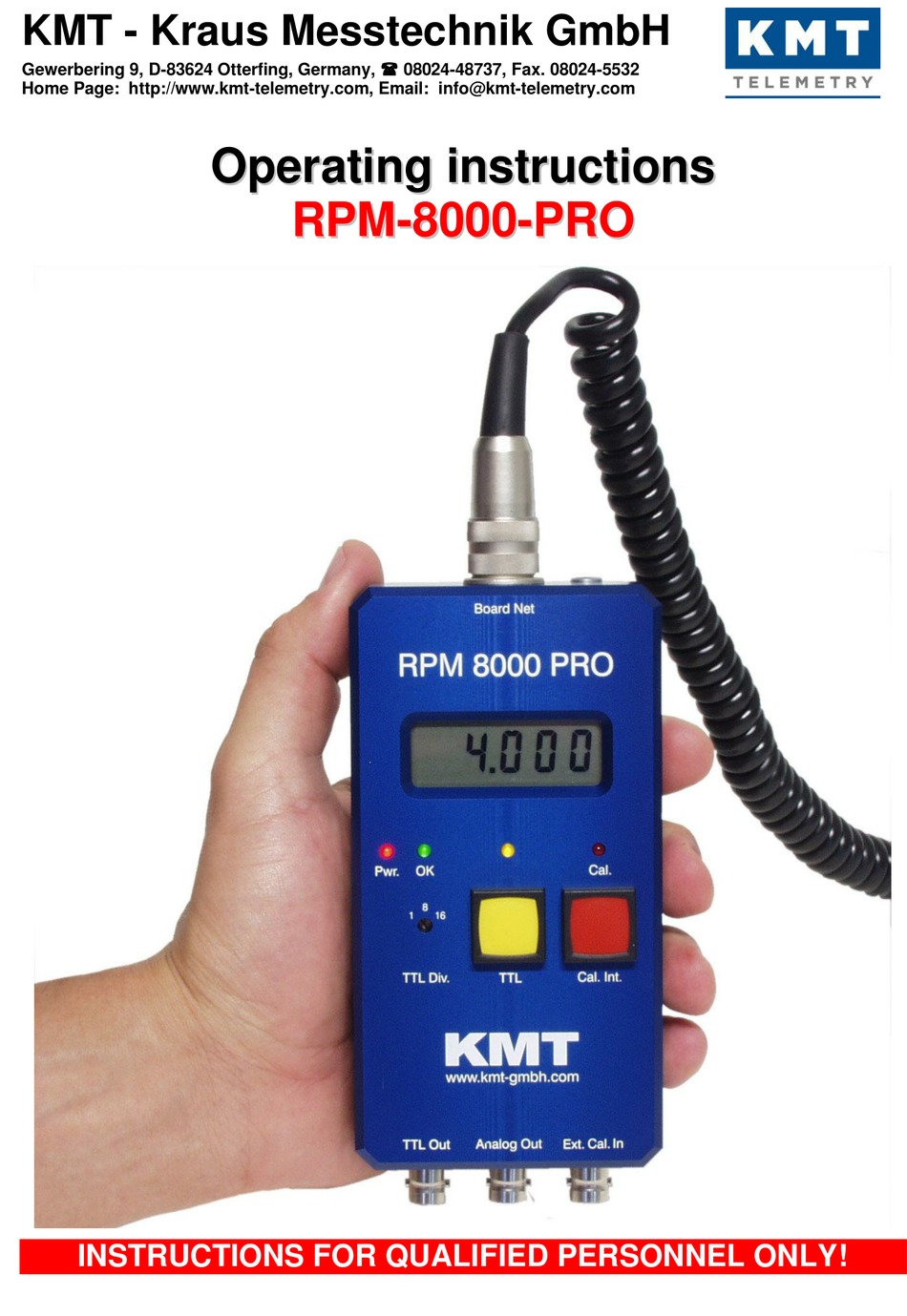

  • Page 1 KMT - Kraus Messtechnik GmbH Gewerbering 9, D-83624 Otterfing, Germany,  08024-48737, Fax. 08024-5532 Home Page: http://www.kmt-telemetry.com, Email: info@kmt-telemetry.com INSTRUCTIONS FOR QUALIFIED PERSONNEL ONLY!

  • Page 2: Operating Principle

    Operating principle Considering the simplest physical generator with a rotating The board net voltage ripple frequency can simply calculated wire winding inside a magnetic field produced by two magnetic by multiplying the alternator RPM with the number of poles poles (one pole pair = north and south) - the output voltage is a (e.g.

  • Page 3: General Description

    The TTL output of the laser instrument is connected via cable to the “Ext. Cal In.” input of the RPM-8000-PRO and delivers one pulse per rotation. (don’t press the “Cal Int” Button for Ext.). By comparing the pulse sequence with the measured pulse frequency, the instrument calculates automatically the relationship between ripple balance and speed.

  • Page 4: Functions And Display

    Functions and display: To battery or cigarette lighter sockets - 12-42V LCD screen Indicates the actual speed or the number of pulses per revolution is indicated by pressing the yellow TTL TTL button button Switches the screen to number of pulses per revolution, as long as the button is pressed.
  • Page 5 8000-PRO. Point the laser beam at the reflector tag at an angle of about 90°. The RPM-8000-PRO is calibrated when both the laser and the RPM-8000-PRO show the same speed, the red LED stops flashing and the green LED is permanently illuminated.
  • Page 6 RPM-Laser-CAL general function-2.1: Technical Data are subject to change without notice! Version 2012-10...
  • Page 7 RPM-Laser-CAL general function-2.2: Technical Data are subject to change without notice! Version 2012-10...
  • Page 8 Internal calibration using the Cal button: 2.000 When a constant speed of 2000 rev/min is registered by the vehicle tachometer, press the Cal. Int. button until the red LED stops flashing, and remains constantly illuminated. Internal calibration requires that the engine is running at a speed of 2000 rev/min, as shown on the tachometer in the vehicle (ideally calibration should be carried out when the vehicle is being driven, that is, moving).
  • Page 9 Starting up the RPM 8000 PRO revolution counter: The RPM-8000-PRO is designed to operate at 12 - 42V DC. You can use our battery adaptor to connect directly to battery terminals. Caution!!!!! Red = Plus ++ Black = Minus --...

  • Page 10: Technical Details

    Technical details: Supply voltage 12-42 V Power consumption 80 mA maximum Analog output: adjustable (Plug-in bride) 0.5 V, 1 V or 2 V per 1000 rev/min (Standard 1V) max. delay 70 ms accuracy > +/- 0.5% for petrol and +/- 1.5% for Diesel engines. output impedance 2 ohm 10 mA frequency range approximately 500 Hz –...
  • Page 11 KMT - Kraus Messtechnik GmbH Gewerbering 9, D-83624 Otterfing, Germany,  08024-48737, Fax. 08024-5532 Home Page http://www.kmt-gmbh.com, Email: info@kmt-gmbh.com Connection: Test cable (Mini-Lemo 2-pol. to BNC) You can use the same cable what delivered with LASER-CAL Test Point Technical Data are subject to change without notice!
  • Page 12 Signal measure at 1300 RPM - Direct connection on car Battery via adaptor Time 0.5ms/DIV 0.5V/DIV Connection direct on battery: Less noise, Signal is very good and RPM8000PRO works!! Value 500mV/DIV-0.5ms/DIV - about 2000Hz (Signal must be >200mV) Technical Data are subject to change without notice! Version 2012-10...
  • Page 13 Signal measure at 1300 RPM - connection on car cigarette lighter Time 0.2ms/DIV 0 .5 V/ DI More noise, but Signal is still OK and RPM8000PRO works!! 0.5V/DIV Time 0.5ms/DIV Technical Data are subject to change without notice! Version 2012-10...
