- Page 2 12v in car power supply for use with a 12v in car socket. There is a balanced line output on the rear of the Tone Pocket to connect your Tone Pocket to an amplifier or PA system.
- Page 3 USER GUIDE ASHDOWN TONE POCKET - HEADPHONE PRE AMP Front Panel: Front Panel: 26mm INPUT - Instrument input socket for use with VOLUME - Roatery control master volume output level Jack to Jack control. LINE IN - 3.5mm Jack socket for use conecting PHONES - 1/4”...

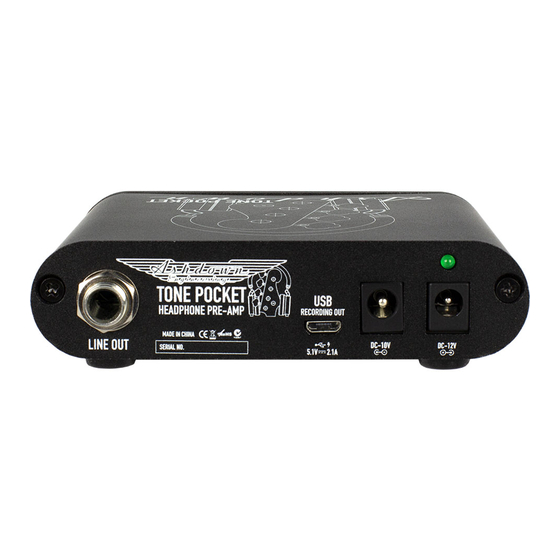

- Page 4 LINE OUT - Balanced line out DC 10v - Center pin negative 10v power supply input for charging. USB - Use the Tone Pocket as a sound card with its built in USB codec record DC-12v - Center pin positive 12v power and monitor your recordings on the go.
- Page 5 USER GUIDE ASHDOWN TONE POCKET - HEADPHONE PRE AMP Top View: 108mm 95mm...
