Ceiling bracket installation guide

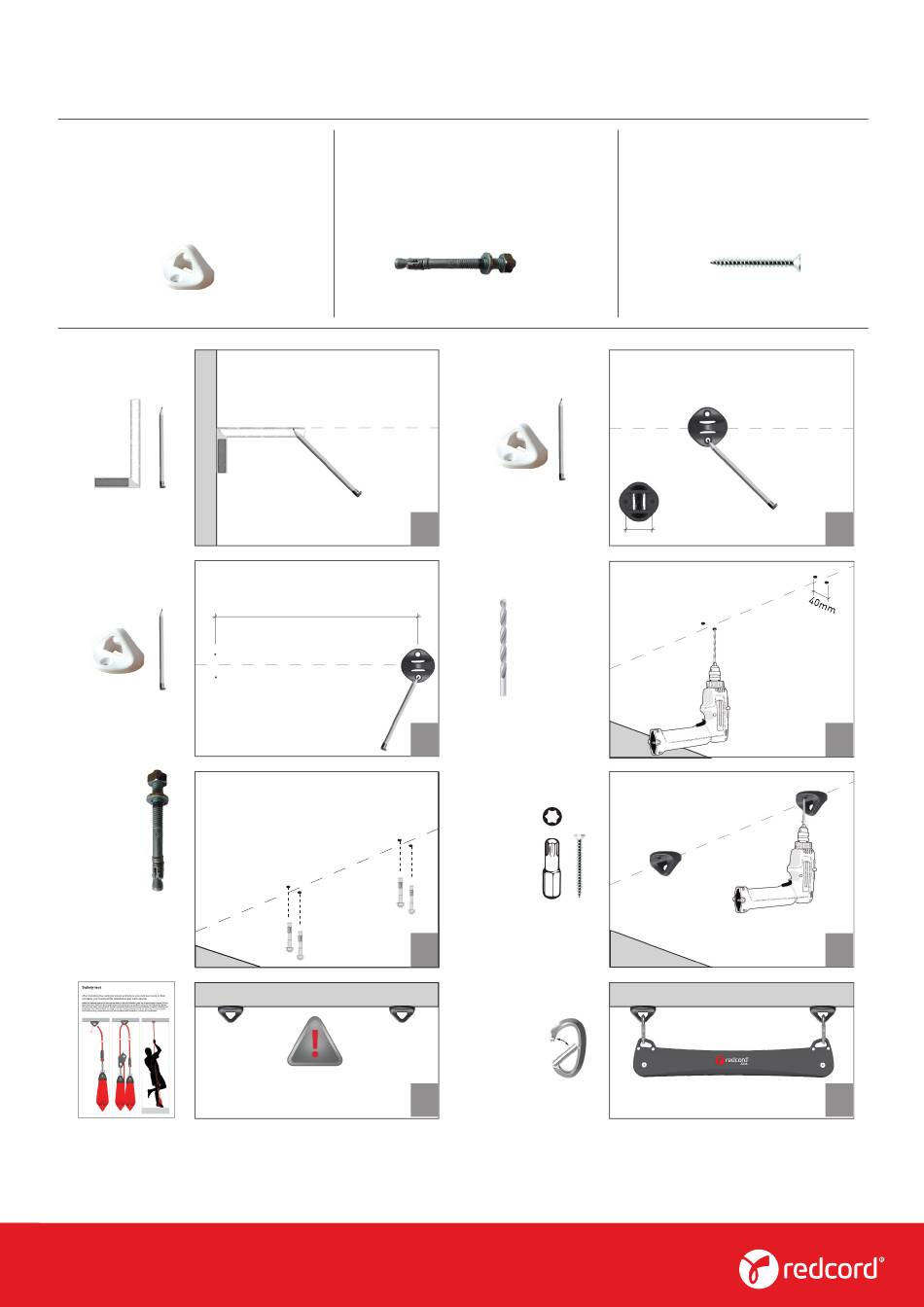

Ceiling Bracket Installation Guide
Ceiling height:
These brackets are suited for ceiling
heights between 220 cm (7'2") and
260 cm (9'6"). Test the installation by
doing the Ceiling Bracket Safety Test."
(See page 6) (see page 7).
2x Ceiling brackets
Draw a line perpendicular to the wall
Mark the screw holes for the second
bracket as before
If concrete ceiling: Carefully hammer in the
included M6x65 through bolt wedge anchor,
taking care not to strike the nut as this may
damage the thread. Ideally, use a plastic or
wooden mallet.
4X
If you have problems with installation, contact your local dealer; see www.redcord.com.
Concrete ceiling:
Make sure that the ceiling is concrete
and not made of a porous material with
a poor load bearing capacity such as
Siporex, Ytong or Leca.
4x Through bolt wedge anchor (M6x65)
.
475mm
Perform the
Ceiling Bracket Safety Test
.
1
Concrete ceiling:
(Masonry bit)
Ø 6 mm
Drill length:
70 mm
3
M6 4X
5
2X
7
Page 5
Wooden ceiling:
Make sure that the installation occurs
in the ceiling joists and NOT only in
panel boards or plates.
4x Torx 30 screws (6x60)
Hold the first bracket in position and
mark the screw holes (40mm distance)
40mm
Drill pilot holes at these marks
(A 6mm diameter hole and
approximately 70mm deep). Use
a concrete drill bit.
Pre-drilling ONLY for
concrete ceilings!
Mount the brackets.
Use 2 screws/bolts per bracket.
Tighten all screws/nuts firmly.
.
2
4
6
8
