Step 2: Connecting the Satellite Dish Antenna
and Telephone Line
Digital Satellite Receiver

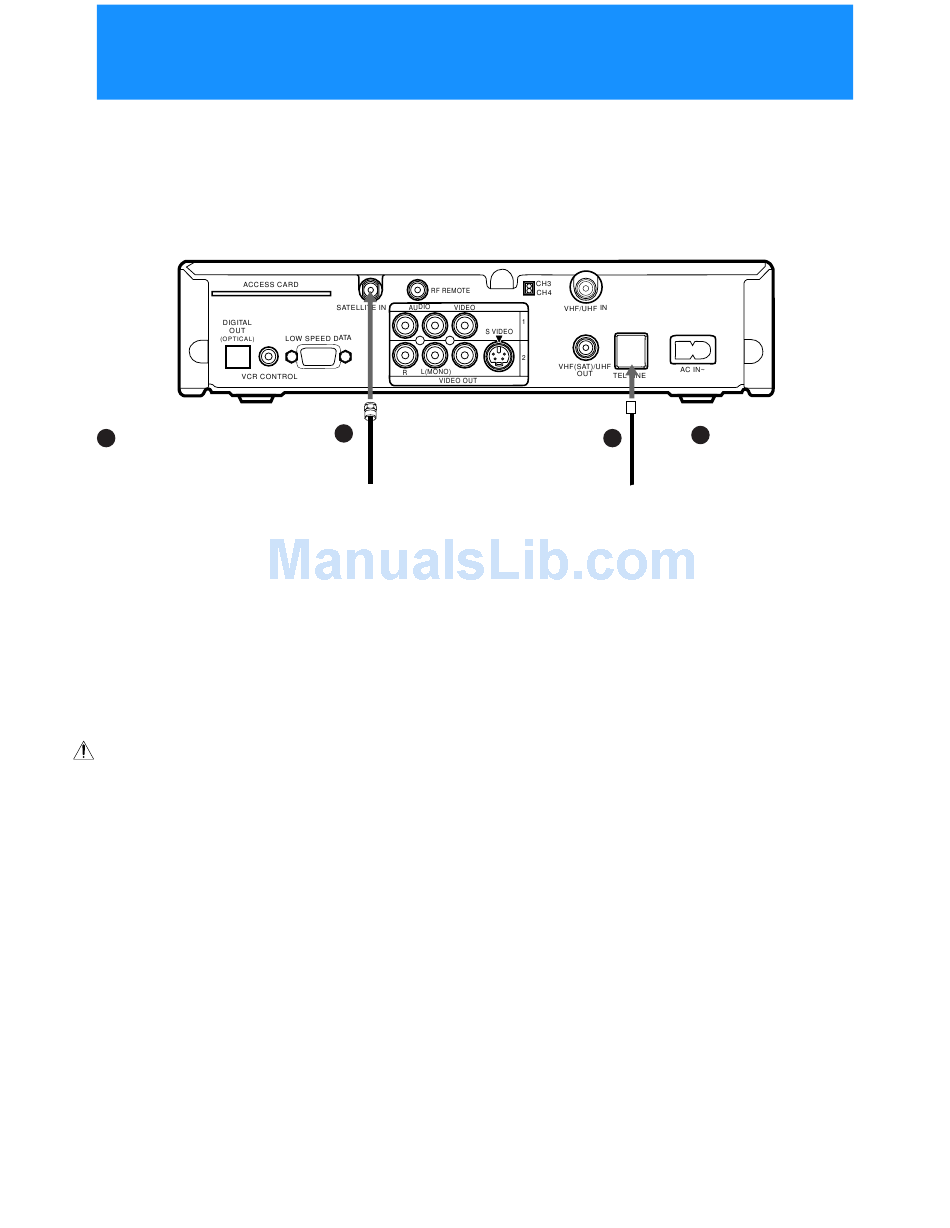

Connect the SATELLITE IN
1
jack to your Satellite Dish
Antenna using RG-6
coaxial cable.
Notes
• The SAT-A55 model is shown.
Connections for the SAT-B55
model are the same.
• Your Satellite Dish Antenna
Installation Instructions
provides detailed instructions
on how to install RG-6 coaxial
cable from your Satellite Dish
Antenna.
CAUTION
Only connect your authorized
Satellite Dish Antenna to the
SATELLITE IN jack as described
in the Installation Instructions.
Connecting any other equipment
to this jack could result in damage
to the equipment and/or receiver.
8
The SATELLITE IN jack sends power to, and receives satellite signals
from, the Satellite Dish Antenna. The telephone line connection
periodically sends information about your receiver and Access Card to
your service provider.
1
RG-6 Coaxial Cable from
Satellite Dish Antenna
Connect the TEL LINE
2
2
jack to a telephone
line wall jack using
the supplied
telephone cord.
Telephone Cord
