Contour Cutting

1
Calibrating the laser
Press "Enter" and use the arrow buttons to place the
carriage over a piece of paper. Insert plotter pen and
make an impact on the paper by pressing down and
twisting the pen cartridge.
2
Testing the laser offset
Turn the cutter's laser on by pressing the "Select" button
to highlight the word "On" and press "Enter". The
cartridge and the paper should move immediately and
the laser should be exactly centered on your pen mark.
This shows that the offset between the laser and the pen/
blade is properly calibrated. If your laser doesn't line
up exactly with the mark, your cuts will not land in the
proper lacation and you will need to adjust the offset.
3

Adjusting the offset

Start by placing the test paper flush against the right side
of the cutter and secure the pinch rollers. Hold down the
"Right" arrow and ress the "Reset" button or simply turn
the power off and then back on. If you are successful you
should see the word "OK" on the start up screen. If you
do not see the word "OK" repeat resetting the machine
until you do. Next, make a new impact mark with the
pen. Use the arrows to center the laser directly over
the pen mark and press the "Enter" button. Re-test the
laser offset by repeating step 2. Once you have finished
calibrating your laser it's time to print your image.
18
20
425.481.3555

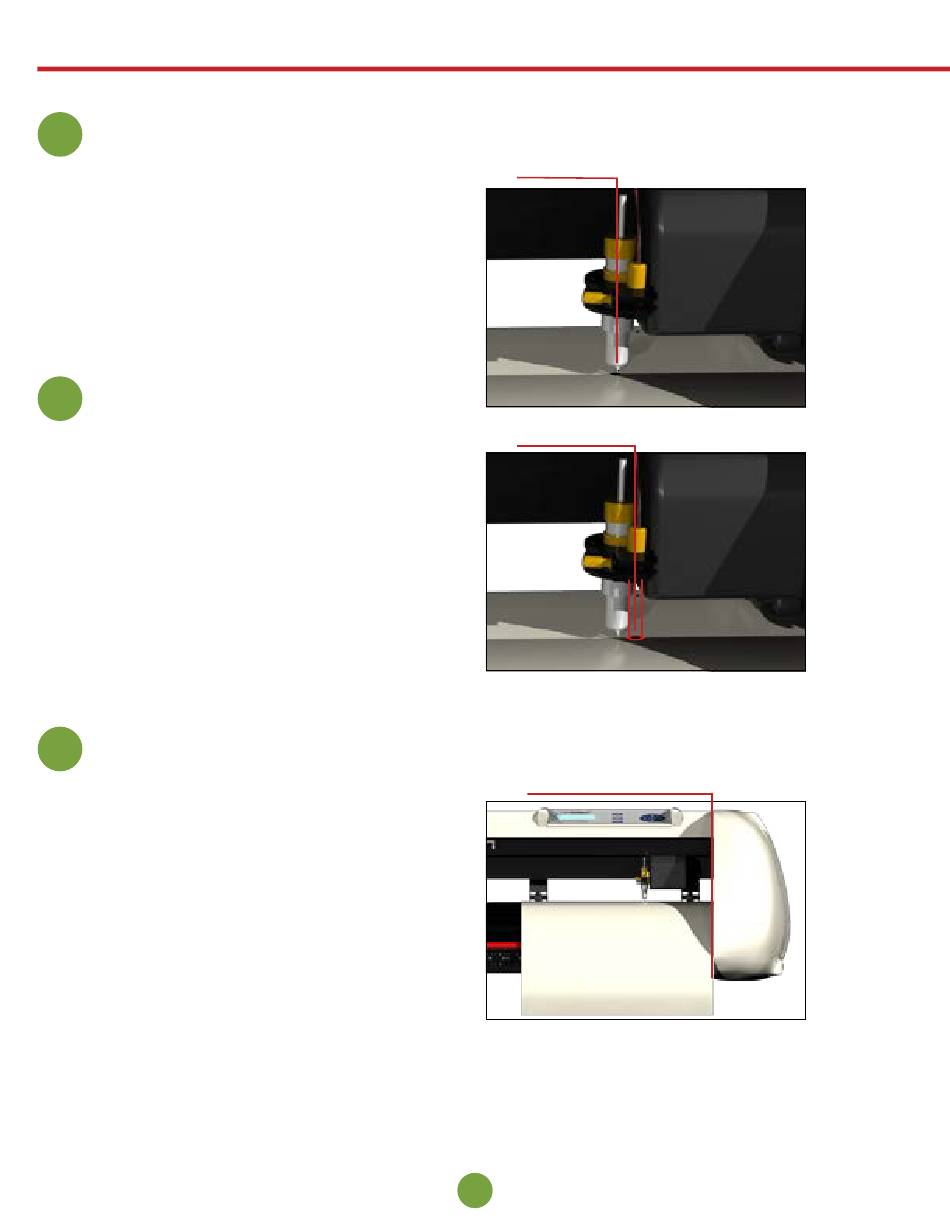

Pen Mark
