Barrett 2030 Operating And Installation Manual page 162

BARRETT 2030 HF SSB TRANSCEIVER

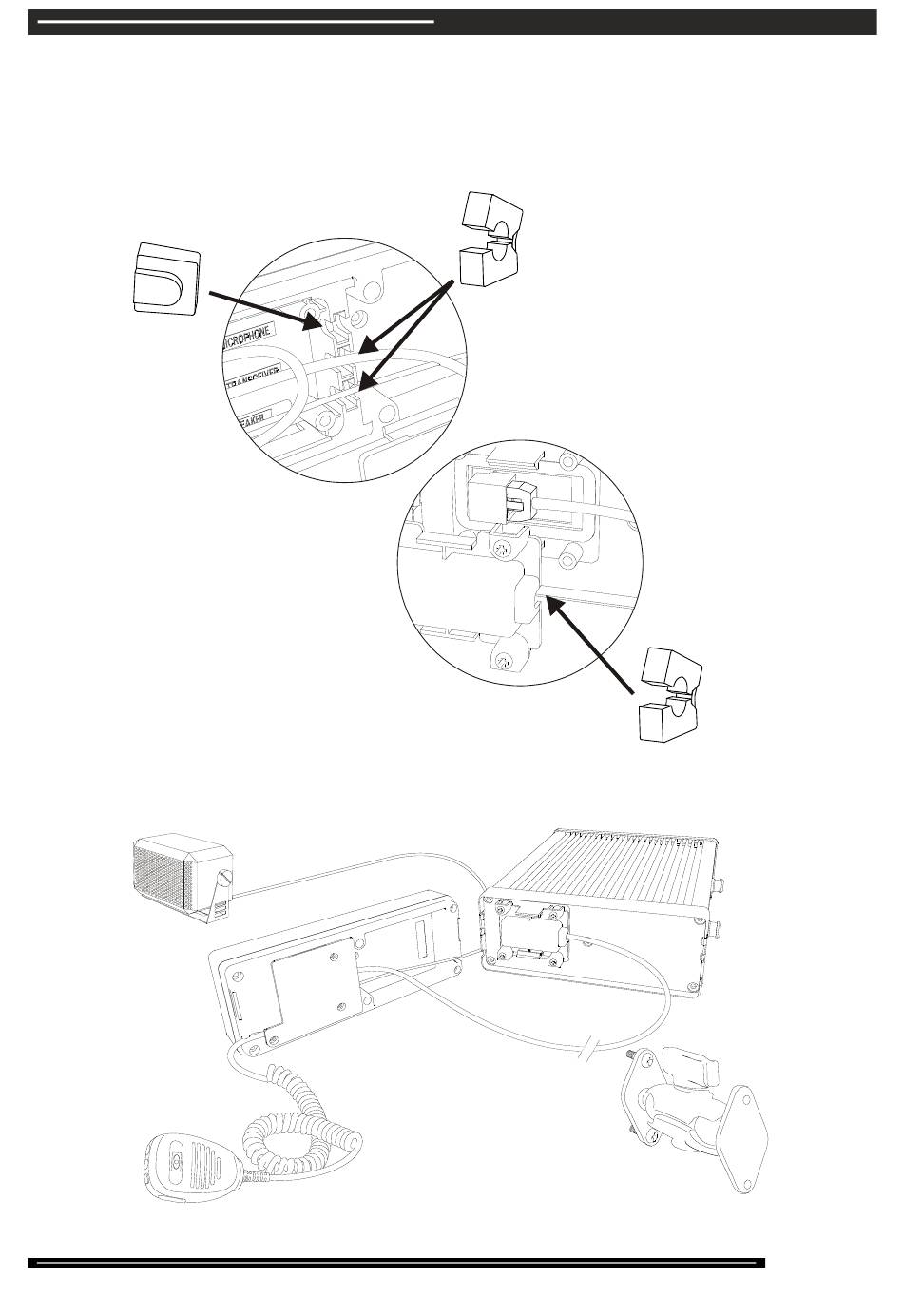

Place the cable grommets around the cables on the remote head and push the
cables into the grooves on the remote head. Place the blanking grommet into the
unused slot. Replace the plastic cover on the remote head. If required, this cover,
whilst having clips, can then be secured with M3 screws to provide a solid cable
clamp.
Attach the RAM mount using the 2 x M5 screws provided to the centre of the
remote head.
162 of 208
