PowerBrick 5.0 CV-i7
PowerBrick™5.0 CV-i7
Quick Guide
Edition 1.0
Acura Embedded Systems Inc.
Acura Embedded Systems Inc.
Small and rugged
Industrial Computer
with Intel® Gen3 Core™ i7
1. OVERVIEW
PowerBrick5.0 CV-i7 is an Intel® Generation3 Core™i7 system. As a rugged mobile
surveillance system computer, PowerBrick 5.0 CV-i7 comes loaded with an Intel® HD
Graphics 4000 accelerating video chip and up to 8 GB memory. Its unique dual
removable SATA storage slots with RAID feature allows to install two fast SSD hard
drives to realize disk mirroring.With our special designed surveillance software kits, Its
high efficient ablities of detection with CCTV or IP cameras are built for great
performance in a variety of applications and environments.
2. MAIN FEATURES
•
Power Brick 5.0 CV-i7 front Interface
GPS ANT
SIM
LAN1 LAN2 LAN3 LAN4 USB3.0 SIM
PW Switch LED
2.5" Removable HDD
•

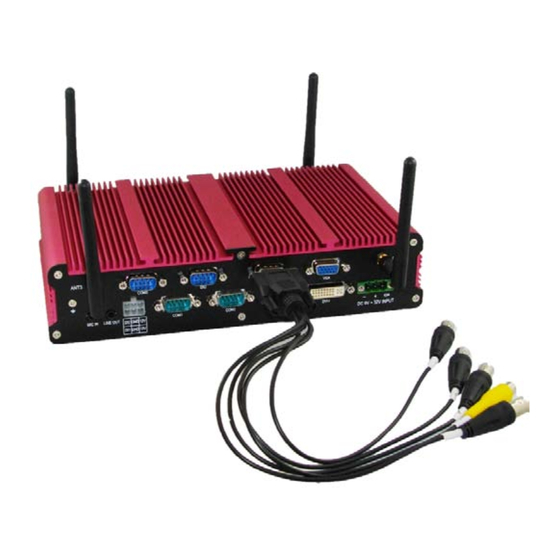

Power Brick 5.0 CV-i7 rear Interface
WiFi/BT(MAIN) ANT
DIO
COM3/ODO 4xCameras VGA
Mic Line Out
COM1
COM2
Quick Guide
3G ANT
WiFi/BT ANT(AUX)
DP
HDMI
DC in
1
Updated in Nov 28/13
