Toshiba MMU-AP0072H2UL Manual

Toshiba MMU-AP0072H2UL Manual

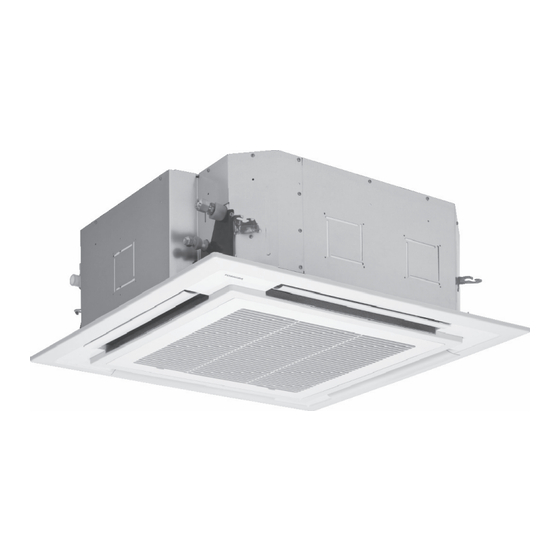

4-way cassette type
Hide thumbs Also See for MMU-AP0072H2UL:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
E15-3C1
6 Indoor unit
4-Way Cassette type
MMU-AP0072H2UL
MMU-AP0092H2UL
MMU-AP0122H2UL
MMU-AP0152H2UL
MMU-AP0182H2UL
MMU-AP0212H2UL
MMU-AP0242H2UL
MMU-AP0302H2UL
MMU-AP0362H2UL
MMU-AP0422H2UL
MMU-AP0072H2UL-1
Contents
1.
Specifications
2.
3.
4.
5.
6.
7.
8.
9.
1
MMU-AP___2H2UL

Advertisement

Table of Contents
loading

Related Manuals for Toshiba MMU-AP0072H2UL

Summary of Contents for Toshiba MMU-AP0072H2UL

  • Page 1: Table Of Contents

    E15-3C1 MMU-AP___2H2UL 6 Indoor unit 4-Way Cassette type MMU-AP0072H2UL MMU-AP0092H2UL MMU-AP0122H2UL MMU-AP0152H2UL MMU-AP0182H2UL MMU-AP0212H2UL MMU-AP0242H2UL MMU-AP0302H2UL MMU-AP0362H2UL MMU-AP0422H2UL MMU-AP0072H2UL-1 Contents Specifications Dimensions Center of gravity Piping diagram Wiring diagram Electrical current characteristics Sensible capacity table Air throw distance chart Sound data 10.
  • Page 2 MMU-AP___2H2UL E15-3C1 Specifications 4-Way Cassette type Model name MMU- AP0072H2UL AP0092H2UL AP0122H2UL AP0152H2UL AP0182H2UL AP0212H2UL AP0242H2UL Cooling Capacity kBtu/h 15.4 Heating Capacity kBtu/h 10.5 13.5 Power supply 230 V (208/230 V) 1phase 60 Hz Electrical characteristics Power consumption 0.021 0.021 0.023 0.026 0.026...
  • Page 3 E15-3C1 MMU-AP___2H2UL Model name MMU- AP0302H2UL AP0362H2UL AP0422H2UL AP0072H2UL-1 Cooling Capacity kBtu/h Heating Capacity kBtu/h 47.5 Power supply 230 V (208/230 V) 1phase 60 Hz Electrical characteristics Power consumption 0.043 0.088 0.112 0.023 Main unit Zinc hot dipping steel plate Heat-insulating material attached Appearance Model...

  • Page 4: Dimensions

    MMU-AP___2H2UL E15-3C1 Dimensions MMU-AP0072H2UL, AP0092H2UL, AP0122H2UL, AP0072H2UL-1 7.9"(200) Check port 17.7"(450)) When a fresh-air inlet box is installed, make check port at the side of the fresh-air inlet box. Check port 17.7"(450)) 39.4"(1000) 39.4"(1000) or more or more Space required for installation 33.9"...
  • Page 5 E15-3C1 MMU-AP___2H2UL MMU-AP0152H2UL, AP0182H2UL, AP0212H2UL, AP0242H2UL, AP0302H2UL 7.9"(200) Check port 17.7"(450)) When a fresh-air inlet box is installed, make check port at the side of the fresh-air inlet box. Check port 17.7"(450)) 39.4"(1000) 39.4"(1000) or more or more 11.8"(300) or less Space required for installation 33.9"...
  • Page 6 MMU-AP___2H2UL E15-3C1 MMU-AP0362H2UL, AP0422H2UL 7.9"(200) Check port 17.7"(450)) When a fresh-air inlet box is installed, make check port at the side of the fresh-air inlet box. Check port 17.7"(450)) 39.4"(1000) 39.4"(1000) or more or more 11.8"(300) or less Space required for installation Indoor unit Ceiling bottom 33.9"...

  • Page 7: Center Of Gravity

    E15-3C1 MMU-AP___2H2UL Center of gravity Total weight Model name X (In) Y (In) Z (In) Main unit Ceiling panel (lbs) (lbs) MMU-AP0072H2UL MMU-AP0092H2UL MMU-AP0122H2UL MMU-AP0152H2UL 17.9 6.05 MMU-AP0182H2UL MMU-AP0212H2UL 18.5 MMU-AP0242H2UL MMU-AP0302H2UL MMU-AP0362H2UL 17.7 7.25 MMU-AP0422H2UL MMU-AP0072H2UL-1 17.9 6.05...

  • Page 8: Piping Diagram

    MMU-AP___2H2UL E15-3C1 Piping diagram Liquid side Gas side Strainer Capillary Tube Air heat exchanger at indoor side Pulse Motor Valve Sensor (TCJ) Sensor (TC2) Sensor (TC1) Fan Motor Sensor (TA)

  • Page 9: Wiring Diagram

    E15-3C1 MMU-AP___2H2UL Wiring diagram MMU-AP0072H2UL, AP0092H2UL, AP0122H2UL, AP0152H2UL, AP0182H2UL, AP0212H2UL, AP0242H2UL, AP0302H2UL, AP0362H2UL, AP0422H2UL, AP0072H2UL-1...

  • Page 10: Electrical Current Characteristics

    MMU-AP___2H2UL E15-3C1 Electrical current characteristics Voltage Range Power MOCP Nominal Voltage consumption Type Model (V-Ph-Hz) MMU-AP0072H2UL 208/230-1-60 0.021 MMU-AP0092H2UL 208/230-1-60 0.021 MMU-AP0122H2UL 208/230-1-60 0.023 MMU-AP0152H2UL 208/230-1-60 0.026 MMU-AP0182H2UL 208/230-1-60 0.026 4-Way Cassette MMU-AP0212H2UL 208/230-1-60 0.036 type MMU-AP0242H2UL 208/230-1-60 0.036 MMU-AP0302H2UL 208/230-1-60 0.043...

  • Page 11: Sensible Capacity Table

    E15-3C1 MMU-AP___2H2UL Sensible capacity table 4-Way Cassette type (MMU-AP___2H2UL, MMU-AP___2H2UL-1) TC: Total capacity [Btu/h] SHC: Sensible capacity [Btu/h] indoor air temp. outdoor 59 °FWB 61 °FWB 64 °FWB 67 °FWB 68 °FWB 72 °FWB 75 °FWB unit size air temp. 71 °FDB 73 °FDB 77 °FDB...
  • Page 12 MMU-AP___2H2UL E15-3C1 indoor air temp. outdoor 59 °FWB 61 °FWB 64 °FWB 67 °FWB 68 °FWB 72 °FWB 75 °FWB unit size air temp. 71 °FDB 73 °FDB 77 °FDB 80 °FDB 82 °FDB 86 °FDB 90 °FDB °FDB 15320 11660 16030 11980...
  • Page 13 E15-3C1 MMU-AP___2H2UL 4-Way Cassette type (MMU-AP___2H2UL) TC: Total capacity [Btu/h] SHC: Sensible capacity [Btu/h] indoor air temp. outdoor 59 °FWB 61 °FWB 64 °FWB 67 °FWB 68 °FWB 72 °FWB 75 °FWB unit size air temp. 71 °FDB 73 °FDB 77 °FDB 80 °FDB 82 °FDB...

  • Page 14: Air Throw Distance Chart

    MMU-AP___2H2UL E15-3C1 Air throw distance chart MMU-AP0072H2UL/AP0092H2UL MMU-AP0122H2UL/AP0152H2UL/AP0182H2UL/AP0072H2UL-1 Adv. wind speed : 14.1 ft/s (4.3 m/s) 2.8 m 9.18 (2.8) 2.3 ft/s 0.7m/s (0.7 m/s) 0.5m/s 1.64 ft/s (0.5 m/s) 0.3m/s 0.98 ft/s (0.3 m/s) 3.28 (1) 6.56 (2) 9.84 (3) 13.1 (4)

  • Page 15: Sound Data

    E15-3C1 MMU-AP___2H2UL Sound data MMU-AP0072H2UL/AP0092H2UL HH - H - L Sound pressure level (dB (A)) 32.5-30.5-29 NC-70 NC-60 4.92 ft NC-50 (1.5 m) NC-40 Microphone NC-30 Audibility limits of NC-20 continuous white level 1000 2000 4000 8000 Octave band center frequency(Hz)
  • Page 16 MMU-AP___2H2UL E15-3C1 MMU-AP0362H2UL MMU-AP0422H2UL H - M - L H - M - L Sound pressure Sound pressure level (dB (A)) level (dB (A)) 46-40.5-36.5 48.5-40.5-37.5 NC-70 NC-70 NC-60 NC-60 NC-50 NC-50 NC-40 NC-40 NC-30 NC-30 Audibility limits of Audibility limits of continuous white level NC-20 NC-20...

  • Page 17: Accessories

    Spacer for height adjustment TCB-SP1602UUL — Fresh-air chamber TCB-GFC1602UUL — Optional Fresh-air inlet box + TCB-GB1602UUL + — — Fresh-air chamber TCB-GFC1602UUL parts Air-discharge direction kit TCB-BC1602UUL Auxiliary fresh air flange TCB-FF101URUL *All option part is not used with MMU-AP0072H2UL-1.

  • Page 18: Reference

    4.4" (113) 24.8" (630) Ceiling bottom surface 39.4" (1000) or more 39.4" (1000) or more 24.8" (630) 27.8" (705) 3.9" (98) Space required for installation 007 to 030 type 14.0" (356) 036 to 042 type 16.5" (419) *MMU-AP0072H2UL-1 is not used.
  • Page 19 5.7" (144) Fresh-air chamber Ceiling bottom (Sold separately) surface 37.4" (950) 4.3" (108) NOTE This inlet box shall be used with the fresh-air chamber. 007 to 030 type 14.1" (358) 036 to 042 type 16.6" (421) *MMU-AP0072H2UL-1 is not used.
  • Page 20 (Implement the test run following to the installation manual of the indoor unit.) Indoor Closed end +12 V terminal P.C.board Duct fan motor Power supply of CN60 Duct fan motor (White) Relay for Closed end duct fan terminal *MMU-AP0072H2UL-1 is not used.
  • Page 21 Make sure it is glued properly. Indoor unit Seal heat Seal heat insulator A insulator B Dimension 3.1" (80) Unit : in (mm) 2.2" (57) Fixing hole of indoor unit 0.1" (3) 3.5" (90) Installation status of indoor unit *MMU-AP0072H2UL-1 is not used.
  • Page 22 39.4" (1000) or more 39.4" (1000) or more 37.8" (960) 2.0" (50) Material : Styrene foam Color : Moon white Space required for installation 007 to 030 type 8.1" (206) 036 to 042 type 10.6" (269) *MMU-AP0072H2UL-1 is not used.
  • Page 23 Available for all models 007 to 030 type 036 to 042 type Wind shield A 2-way air flow Wind shield C Wind shield C Available for all models Available for all models Available for all models *MMU-AP0072H2UL-1 is not used.
  • Page 24 Install the cover Dimension Unit:in (mm) 4.51" (114.6) 4.13" (105) 4 - Ø0.24" (6) Knockout square for branching duct 0.39" (10) 3.94" (100) in indoor unit Design sample of branching duct flange Installation sample *MMU-AP0072H2UL-1 is not used.
  • Page 25 MEMO ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 26 MEMO ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 27 MEMO ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 28 4-Way Cassette type Engineering Data Book Model name: MMU-AP___2H2UL, AP___2H2UL-1 March, 2016 First Edition...
