Option slots
Input signal flexibility
To increase the configuration flexibility of the SRX-Series projectors,
slots are available to accommodate different optional boards that
connect to various types of signal format.
The SRX-S110 and SRX-S105 models are equipped with a DVI signal
input as standard, which provides the 1080/60P input capability
available only with these units.
In addition to the standard DVI input, three slots are available for
the installation of other optional input modules. Meanwhile, the
SRX-R110CE and SRX-R105CE models have four available slots for
even more flexible input configurations.
The SRX-R105CE and SRX-R110CE are supplied with one removable
LKRI-001 input board and the four option board slots can
accomodate any combination of input boards. Users can select the
screen mode from single, dual, and quad mode, and assign the
appropriate signal board to each quadrant.
• The
LKRI-001
Analogue input board has 5 BNC connectors that
accept 0.7 volt analogue signal levels as RGBS, RGB sync on G,
RGBHV or YUV formats.
• The
LKRI-002
HD-SDI (4:2:2) input board accepts both SMPTE
259M SD digital 525/625 line video and SMPTE 292M 1080 4:2:2
Y-Pb-Pr serial picture data. Switching is automatic by detection of
the input signal frequency.
• The
LKRI-003
Dual-link HD-SDI input board accepts any of the
following signals: SMPTE 372M dual-link HD-SDI (4:4:4), SMPTE
292M HD-SDI (4:2:2), dual-link DC-SDI (RGB 4:4:4), DC-SDI (YPbPr
4:2:2), or 12-bit (X'Y'Z' 4:4:4) signals. With four LKRI-003 boards,
the SRX-R110CE or SRX-R105CE can project 4096 x 2160 4K
images.
Operational versatility
8

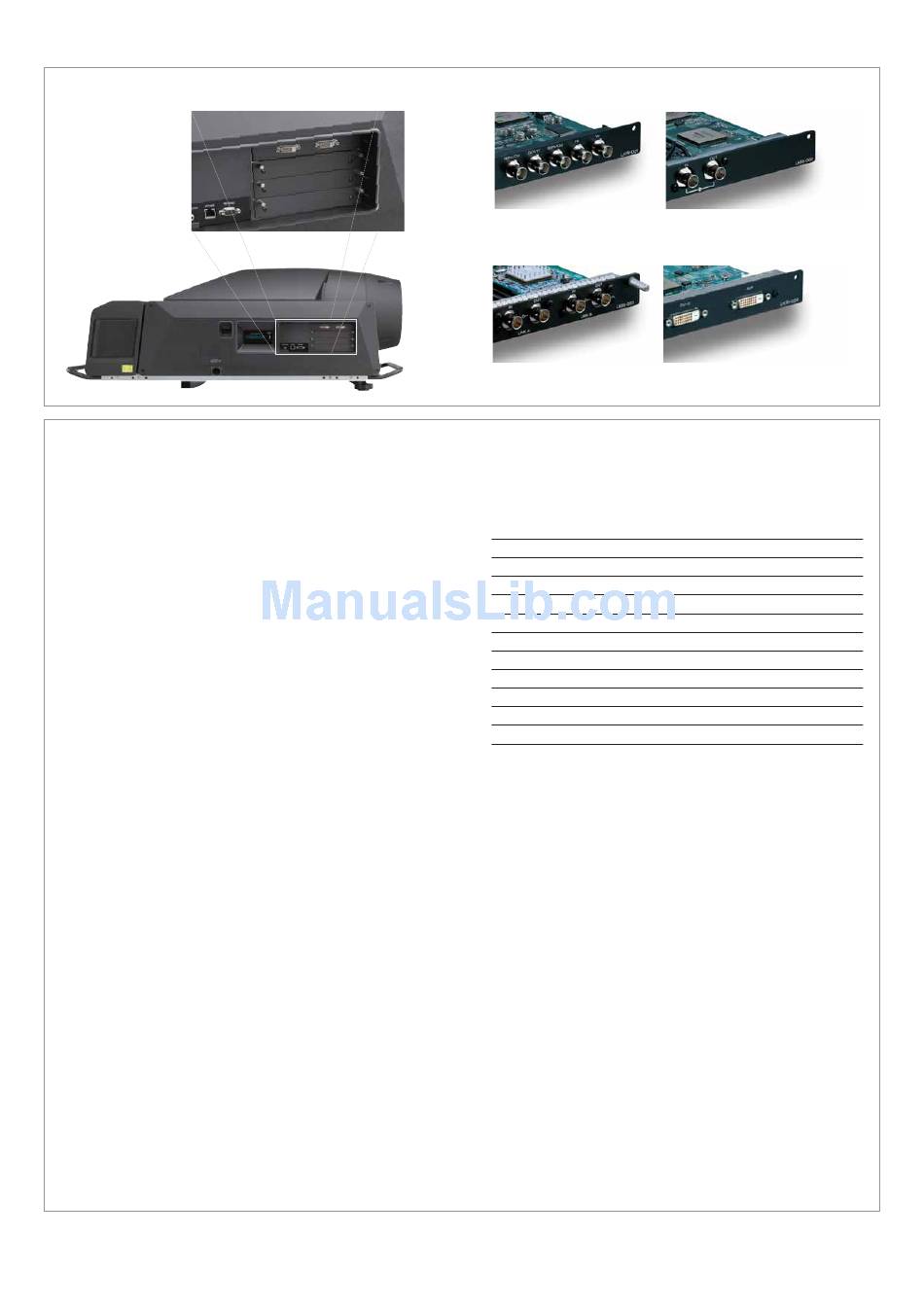

LKRI-001
Analogue Input Board (Supplied
with SRX-R105CE/R110CE)
LKRI-003
Dual-link HD-SDI Input Board
• The
LKRI-004
DVI interface board accepts DVI-D signals up to
2048 x 1080 and the following table illustrates the range of input
signals handled by each projector.
Resolution
SRX-S110/S105 SRX-R110CE/R105CE
1
1024 x 768 at 60 Hz (XGA)
2
1280 x 960 at 60 Hz (SXGA)
3
1280 x 1024 at 60 Hz (SXGA)
4
1400 x 1050 at 60 Hz (SXGA+)
5
1600 x 1200 at 60 Hz (UXGA)
6
2048 x 1080 at 60 Hz
7
1920 x 1080 at 24 Hz
8
2048 x 1080 at 24 Hz
9
1920 x 1200 at 59.95 Hz Reduced Blanking (WUXGA)
10
1920 x 1080 at 60 Hz
11
2048 x 1080 at 48 Hz
Simple Installation
SRX-Series projectors can be installed easily into almost any envi-
ronment. Compared with conventional projectors in the ultra-high res-
olution class, they are highly compact and lightweight. Plus, their
power requirements are also reasonable – due to the use of single-
phase power, which allows for remarkably low power consumption
and simpler installation.
To aid effective cooling, an optional exhaust duct adaptor is available,
which allows the projectors to be easily connected to a common
8-inch type duct system.
LKRI-002
HD-SDI (4:2:2) Input Board
LKRI-004
DVI Interface Board
