Technical Manual
DUPLA 5T BOARD
WARNING:
Do not use the equipment
without reading the
instruction manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUPLA 5T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PPA DUPLA 5T

Summary of Contents for PPA DUPLA 5T

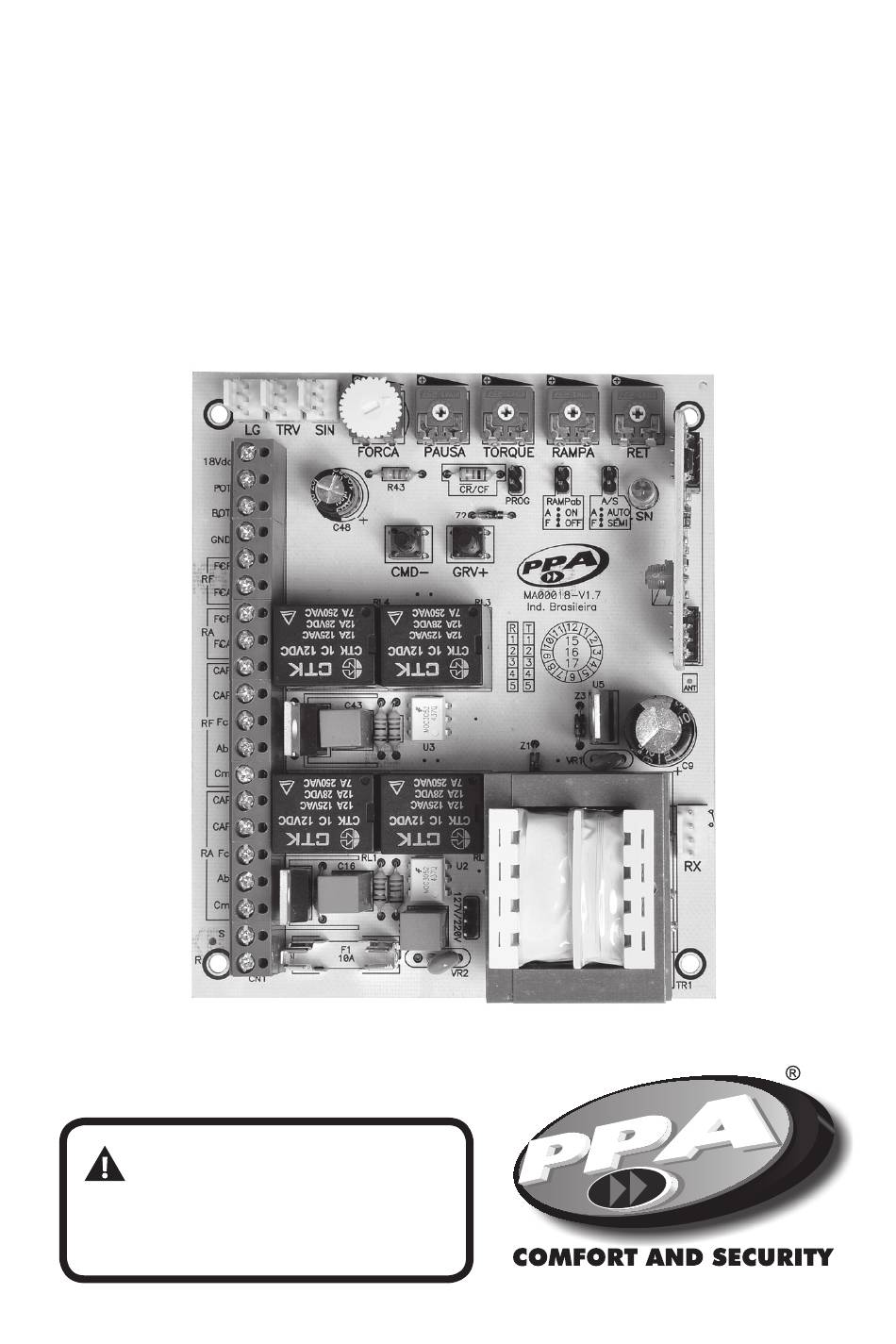

  • Page 1 Technical Manual DUPLA 5T BOARD WARNING: Do not use the equipment without reading the instruction manual.

  • Page 2: Main Features

    Main features - Analog Limit Switch - Receptor Module RF 433,92 MHz. - Code learning: -160 fixe code transmtters (default HT6P20B). -160 rolling code transmitters (PPA default). - Input for: - Photocell (external power suply); - Buttonhole. - External RF receptor - Output for: - Garage Light Module.

  • Page 3: Factory Default

    PROGRAMMING TABLE FACTORY DEFAULT OPENING COMMAND DELETING TRANSMITTERS GARAGE LIGHT TIME (LG) BRAKE TRAFFIC LIGHT TIME (SIN) REVERSÃL BY COMMAND MAGNETIC LOCK RAMP OPENING ADJUSTMENT OPENING MAXIMUM TIME COURSE A/F NOMINAL ENGINE TIME LIMIT SWITCH REVERSE BRAKE ELIMINATE BRAKE INERTIA ELIMINATE BRAKE INERTIA TIME faCtory Default Restore settings to factory default.

  • Page 4: Deleting Transmitters

    Press and release the REC button to enter the function; REC button + to erase the memory of the transmitters, or CMD Button or Remove jumper PROG (Cancel function). reCorDing transMitters PPA default transmitters (fixed and rolling code) are supported. Operations: Gate must be stopped; Close jumper PROG;...
  • Page 5 garage ligHt tiMe (lg) During opening or closing cycle the gate open or stopped, the relay module will be connected. When the central finalize the closing cycle, the relay module will be turned off after scheduled time. Values: 0 = Minimum time 1.0 second 1 = 15.0 Split time the 2nd 2 = 30.0 Split time the 2nd 17 = Maximum time the 2nd 255.0...
  • Page 6 Operation: Gate must be stopped; Close jumper PROG; Press and release the button CMD (5x); Press and release the REC button to enter the function; CMD button to decrement value, or REC button + to increase value or remove jumper PROG (Cancel function). Signage SN led: Flash 1x = Releasing CMD and / or GRV + button (command accepted).
  • Page 7 reVersal By CoMManD Command permission buttonhole or transmitter operate during the gate closing path for reversal. Operation: Gate must be stopped; Close jumper PROG; Press and release the button CMD (7x); Press and release the REC button to enter the function; REC button + to enable rollback command, or CMD button to disable the rollback command.
  • Page 8 Operation: Gate must be stopped; Close jumper PROG; Press and release the button CMD (9x) to enter the function; Press and release the REC button; CMD button to decrement value, or REC button + to increase value. Finally, remove PROG jumper. NOTICE: If the function is disabled (level 0), the setting of the trimpot RAMP is used to both sides of opening and closing.
  • Page 9 noMinal engine tiMe Time in which the motor is connected at rated voltage during starting. Values: 20 adjustment levels. 0 = 50.0 msec. 1 = 100.0 msec. 2 = 150.0 msec. 19 = 1.0 sec. Operation: Gate must be stopped; Close jumper PROG;...
  • Page 10 Press and release the REC button; CMD button to enable feature, or GRV + button to disable feature. Finally, remove PROG jumper eliMinate BraKe inertia tiMe Time in which the brake will eliminate the inertia of the gate due to its displacement velocity before entering the ramp region to reduce speed.

  • Page 11: Deleting Route

    Deleting route Operation: Gate must be stopped; PROG jumper must be open and Keeping pressing the REC button + for 3.0 seconds; SN led will turn on and off signaling that performed the operation. triMpot aDJustMent of eleCtroniC ClutCH For the use of this security sensor device to be effective, do the following: - After the proper installation of the operator at the gate, adjust the electronic clutch so that the force is the minimum necessary to move the gate leaf throughout its route, opening and closing.
  • Page 12 triMpot setting tHe Delay tiMe If closing is adjusted at minimum, the delay time will be canceled and the engine will be triggered simultaneously; otherwise, the RETA engine will first be activated and after time set by the trimpot RETF engine will be connected. If opening is set to the minimum, delay time will be canceled and the engine will be triggered simultaneously;...

  • Page 13: Connection Scheme

    ConneCtion sCHeMe BUTTONHOLE INCORPORATED RP RECEPTOR 433,92 MHZ ENGINE STARTING CAPACITOR BLACK / RED ENGINE RED / BLACK YELLOW ENGINE STARTING SEPARATED CAPACITOR RP RECEPTOR BLACK / RED ENGINE RED / BLACK YELLOW...
  • Page 14 +55 14 3407-1000 MOTOPPAR INDÚSTRIA E COMÉRCIO DE AUTOMATIZADORES LTDA. Av. Dr. Labieno da Costa Machado, 3526 - Distrito Industrial - CEP 17400-000 - Garça - SP - Brasil...
