Review these important points before installing your
SC Series System
1.
Always use a minimum 1/2" O.D. tubing, or equivalent, from the outlet of the
filtration unit to your steamer/combi-oven.
2.
Use the water from the SC Series unit only on steamer/combi-oven feed and
make-up water. DO NOT USE TO TREAT CONDENSATE COOLING WATER.
3.
For many years, Everpure has worked closely with all major foodservice equipment
manufacturers to assure the highest possible degree of compatibility and optimal
performance of its water filtration systems with their ovens and steamers. To
help ensure satisfactory operation, we recommend that you obtain and read the
equipment manufacturer's operating and maintenance instructions for your
specific model. Follow the manufacturer's instructions and procedures for
installation, maintenance and cleaning. Or consult with the manufacturer's
representative or technical service personnel for guidance regarding any
differences between their directions and those included with this system. Failure
to do so may affect equipment performance and/or manufacturer's warranty
coverage.
Installation
(See Figure 1 & Figure 2)
Before beginning installation, inspect the contents of the filtration system carton to
verify that the following items are present:
Bracket-mounted system including two filter housing heads and filter bowls
(two clear for Model SC-1011; one white and one clear for Model SC-1021)
CG5-10 10" (SC-1011) or CG5-20 20" (SC-1021) sediment/chlorine prefilter
cartridge
SS-10 ScaleStick scale control cartridge
Sump wrench
1.
Shut off power to the oven.
2.
Shut off the inlet water to the oven at the supply valve.
3.
Attach the SC series system to a suitable structure in an accessible location.
Mounting holes are provided on the system back-plate. THE SC-1011 SYSTEM
WEIGHS 12 POUNDS IN SERVICE. THE SC-1021 SYSTEM WEIGHS 15
POUNDS IN SERVICE.
4.
Attach the inlet water supply line to the inlet fitting on the SC Series system.
5.
Remove the clear bowl from the prefilter housing by unthreading it from its head.
A sump wrench is provided to assist in loosening a tight bowl. Remove the
wrapping from the CG5 carbon prefilter cartridge and insert the cartridge into the
bowl aligning the hole in the bottom of the cartridge over the raised stub in the
bottom of the bowl.
6.
Check to see that the O-ring is in place at the top of the bowl and that it is
lubricated with food grade silicone lubricant. Reinstall the bowl by aligning the
hole in the top of the cartridge with the stub extending down from the housing
head and threading the bowl onto the head. Hand tighten snugly. Do not over-
tighten the bowl.
7.
Remove the clear bowl from the scale control housing by unthreading it from its
head. Remove the wrapping from the ScaleStick cartridge and insert the cartridge
up onto the stub extending down from the housing head. The friction fit between
the ScaleStick and the stub should allow the cartridge to remain suspended while
reinstalling the clear bowl.
8.
Check to see that the O-ring is in place at the top of the bowl and that it is
lubricated with food grade silicone lubricant. Reinstall the bowl by threading it
onto its housing head. Hand tighten snugly. Do not over-tighten the bowl.
9.
Prior to connecting the SC Series System outlet to the steamer/combi-oven, run
water through the unit and water lines to purge them of air and any particles or
debris.
10.
Connect the inlet hose/piping of the steamer/combi-oven to the outlet fitting on
the SC Series System.
11.
Follow the manufacturer's instructions for starting and operating your
steamer/combi-oven.
Installation and Operation Guide

Cartridge Change Determination

Replace the carbon prefilter cartridge whenever its capacity is reached or when it
becomes excessively dirty (observed visually or by flow restriction).
The system outlet pressure gauge provides a quick, simple means of determining when
the filter cartridge should be checked. The gauge can be used to monitor dynamic
(flowing) pressure and static (line) pressure. The filter cartridge should be changed when
the gauge needle is in the red area while the oven is in operation.
The SS-10 ScaleStick cartridge should be changed when the product level in the
cartridge drops below 1/2" from the bottom of the bowl.

Cartridge Change Instructions

1.
Shut off power to the steamer/combi-oven.
2.
Shut off filter system inlet water supply and outlet hose to the steamer/combi-
oven.
3.
Momentarily depress the red pressure relief valve button on top of the scale
control cartridge head.
4.
Disconnect the outlet hose from the filter system.
5.
Unthread and remove the clear prefilter bowl and dump any water from the bowl.
A sump wrench is provided to assist in loosening a tight bowl. Remove and
discard the old carbon prefilter cartridge.
6.
Rinse and clean the bowl with clean water. No special cleaners are needed.
7.
Check and clean the bowl O-ring. If it is dry, lubricate it with a food grade silicone
lubricant. If it is cracked or deteriorated, replace it.
8.
Remove the wrapping from the CG5 carbon prefilter cartridge and insert the
cartridge into the bowl aligning the hole in the bottom of the cartridge over the
raised stub in the bottom of the bowl.
9.
Check to see that the O-ring is in place at the top of the bowl and that it is
lubricated with food grade silicone lubricant. Reinstall the bowl by aligning the
hole in the top of the cartridge with the stub extending down from the housing
head and threading the bowl onto the head. Hand tighten snugly. Do not over-
tighten the bowl.
10.
Remove the clear bowl from the scale control housing by unthreading it from its
head and dumping any water from the bowl. Remove the wrapping from the
ScaleStick cartridge and insert the cartridge up onto the stub extending down
from the housing head. The friction fit between the ScaleStick and the stub should
allow the cartridge to remain suspended while reinstalling the clear bowl.
SC Series Water Filter Systems

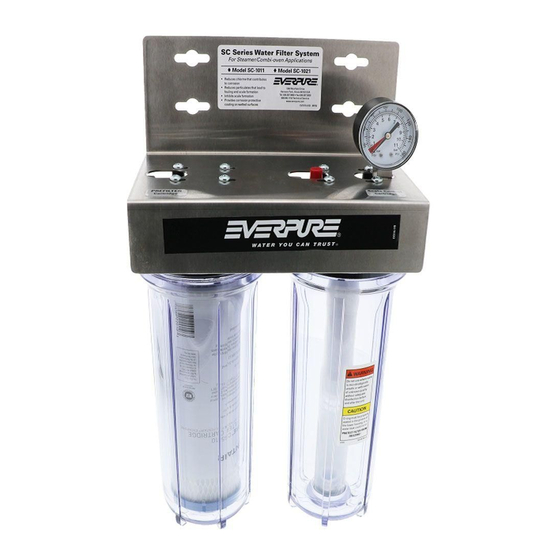

Figure 1 - SC-1011 System
Figure 2 - SC-1021 System
