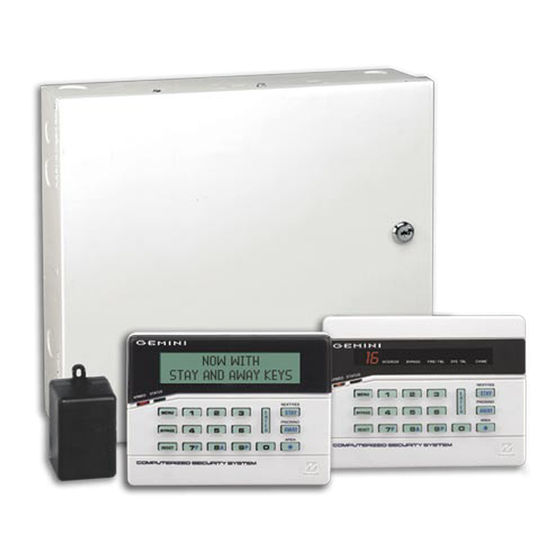

Summary of Contents for NAPCO Gemini P1632
- Page 1 HARDWIRE WIRELESS © Napco 1998 WI808B 8/98...
- Page 2 NAPCO Security Systems, Inc. 333 Bayview Avenue, Amityville, New York 11701 For Sales and Repairs, call toll free: (800) 645-9445 For direct line to Technical Service, call toll free: (800) 645-9440 Internet: http://www.napcosecurity.com...
-
Page 3: Table Of Contents
EXPERIENCE AND INSTALLATION EQUIPMENT. THE UNIT IS DESIGNED TO BE PROGRAMMED USING AN IBM-COMPATIBLE COMPUTER WITH NAPCO PCD3000 SOFTWARE. AFTER PROGRAMMING, BE SURE TO RUN THE PCD3000 ERROR-CHECK UTILITY TO GUARD AGAINST PROGRAMMING CONFLICTS FOR THE TYPE OF SERVICE SELECTED FOR THE INSTALLATION. -
Page 4: Features
Conventional LEDs and a sounder are also provided for annunciation. Data may be quickly and easily downloaded to the control panel using a PC-compatible computer with Napco's PCD3000 Quickloader software and PCI2000 computer interface. Or, the panel may be programmed using the keypad in its secondary mode of operation. - Page 5 English-language LCD display; LED and sounder annunciators. Supports up to seven 4-wire keypads. Provisions for fire, police and auxiliary panic alarms. Integral 4-zone EZM included in each keypad (GEM-RP1CAe2 only). Fault-Find diagnostics simplify troubleshooting. NAPCO Security Systems GEM-P1632 Installation Instructions...
-
Page 6: Specifications
Maximum Number of Keypads: 7 Maximum Wiring Length for each run (#22AWG): 1000' divided by total number of keypads and EZMs on run Keypad Dimensions: 4” x 5” x 1” (HWD); 11.1cm x 14.9cm x 2.7cm (HWD) NAPCO Security Systems GEM-P1632 Installation Instructions... -
Page 7: Installation
PCI-MINI: Notebook Computer Interface W834-1: Keypad Cable, plug-in (20”) OI163: Instruction Manual, GEM-P1632 OI192: Instruction Manual, GEM-RP2ASe2 OI193: Instruction Manual, GEM-RP1CAe2 WI897: GEM-P1632 Programming Instructions WIZARD IIe: Telephone Interface Module * *Not investigated by UL. NAPCO Security Systems GEM-P1632 Installation Instructions... - Page 8 System must be serviced at least once every 3 years Residential Fire and Combination Residential Fire & Burglary must program “Residential Fire” Keypad Expansion (EZM) Zones are not to be used as fire zones NAPCO Security Systems GEM-P1632 Installation Instructions...
-
Page 9: Mounting
24-Hour Zone or Day Zone. When used on a normally-open zone, normally-closed tamper switches (open when set) should be wired in parallel. On a normally-closed zone, install Napco TPS-2 normally-open tamper switches (closed when set) in series. -
Page 10: Wiring
Note: NFPA 74 (Household Fire Warning Equipment) requires that a fire alarm audible device be installed indoors. The User Program Code is not to be given to anyone except the authority responsible for all partitions. NAPCO Security Systems GEM-P1632 Installation Instructions... -
Page 11: Wireless Systems
In addition to Grade-B Requirements (above), one relay on the RM3008 must be programmed to trip the Ademco 7720 when the telephone line fails. Daily openings and closings are required to be transmitted by the Napco panel along with the 24-hour DACT test signal and DACT trouble conditions. - Page 12 If the signal strength is less than 3, the keypad will not beep and the strength will be displayed. Except in the Fault-Find Mode, signal strengths less than 3 will be entered into the system log. NAPCO Security Systems GEM-P1632 Installation Instructions...
-
Page 13: Battery
P1632 Programming Instructions). Connect the de- vice controlled by the programmable output be- tween terminal 5 (+) and the PGM output (-), either terminal 7 or 8. As an example, the connection to the RB1000 Relay Module is shown. NAPCO Security Systems GEM-P1632 Installation Instructions... -
Page 14: Remote Bus
Connect a wire with a ground lug crimped or soldered onto one end of the EARTH GROUND screw to the cabinet. NOTE: Grounding connections should avoid bends in the grounding wire whenever possible. NOTE: Do not use a gas pipe, plastic pipe or AC ground connections. NAPCO Security Systems GEM-P1632 Installation Instructions... -
Page 15: Basic Zone Configuration
WARNING: Assigning a fire zone or keyswitch zones to a zone doubled control will disable the respective complimentary zone. For example, if zone 8 is assigned as a fire zone, it will disable zone 16. If zone 3 is assigned as a fire zone, it will disable zone 11. NAPCO Security Systems GEM-P1632 Installation Instructions... -
Page 16: Ez Zone Doubling Configuration
(15 & 16) are disabled when 2-wire smoke detectors are connected to zones 7 & 8. If Fire Alarm Verification is desired to reset the smoke detectors, select this option for the desired fire zone (zone 7 or 8). NAPCO Security Systems GEM-P1632 Installation Instructions... - Page 17 If connected to a line with call waiting, then call waiting interrupt numbers must be programmed into the CS Telephone Numbers (refer to the GEM-P1632 Programming Instructions). NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 18 A valid number will be acknowledged by a short beep; an invalid number will be rejected by a long beep. 2. Press the button to continue or press the button to exit. NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 19 (the display will loop back through selections, for changes) or press the button to exit the Keypad Configuration Mode (display will read “ ”). Then replace Jumper JP5 across Pins 1–2 (top two). NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 20 Cut Jumper B to disable LCD backlighting. DISABLE SOUNDER Cut Jumper C to disable the sounder. (Do not disable in UL applications.) NAPCO Security Systems, Inc. 333 Bayview Avenue, Amityville, New York 11701 For Sales and Repairs, call toll free: (800) 645-9445 For direct line to Technical Service, call toll free: (800) 645-9440 Internet: http://www.napcosecurity.com...
- Page 21 Thus should it become necessary to remove a user from the system, that one code may be cancelled without af- fecting other codes, and that user would then be prevented from entry. NOTE: Napco's PCD3000 Quickloader Software provides enabling and disabling User Codes at programmed times using the scheduling menus. Ambush code should not contain digits used as the first digits of any user code.
- Page 22 “000” in intervals of 10 seconds, indicating the available time remaining to disarm the panel. The sounder will pulse during the final 10 seconds. To disarm the panel, enter a valid User Code, then press the button. NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 23 4. To return the keypad to its “home” area, the button, then the button. Note: If the “home” keypad has been changed to the alternate area and unused for more than 5 minutes, it will revert to the home area. NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 24 Arming the system automatically cancels the Fault find Mode. Note: When testing wireless systems, the keypad will not beep if the signal strength is less than 3, but the strength will still be displayed. NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 25 Note: Keypad No. 1 may be located in any area. ACTIVATE DOWNLOAD Used on-site for remote downloading of a control-panel program from the PCD3000. Press YES (the button) to initiate the data transfer. NAPCO Security Systems GEM-P1632 Installation Instructions...
-
Page 26: Telephone Lines
FAULT FIND - Fault-find Mode activated. E05-NN - WL LOBATT. Rf transmitter low battery. NN = transmitter number. E06-NN - RF REC TROUBLE. Rf receiver response trouble. NN = receiver number. E07-00 - DOWNLOAD FAIL. Download failure. NAPCO Security Systems GEM-P1632 Installation Instructions... - Page 27 (Box 3) Alarm current drawn in alarm. Alarm Time in Hours. Example: For a 15 minute alarm timeout, Alarm Time = 15/60 = 0.25. MINIMUM REQUIRED BATTERY CAPACITY = BOX 2 + BOX 3 NAPCO Security Systems GEM-P1632 Installation Instructions...
-
Page 28: Wiring Legend
Should removal of the circuit board be necessary, use this wiring legend to relocate wire leads to their proper terminals. Enter wire identification number or color code in WIRE NUMBER column and enter wire function in DESCRIPTION column (optional). TERMINAL WIRE NO. DESCRIPTION NAPCO Security Systems GEM-P1632 Installation Instructions... - Page 29 number of hours entered w/delay Y e s Y e s Download Exit Automatically Activated NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 30 See next page. Menu Driven Mode Go to See next Previously page. Programmed Panel D o w n l o a d Exit Automatically Activated NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 31 Enter Entry/Exit Zone Numbers in Area 1 Enter Zone Descriptions Enter Interior Zone Numbers in Area 1 Enter Dealer Code Previously Enter Number of Programmed Keypads in Area 1 Panel Enter Central Station 1 Telephone Number NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 32 Y e s D o w n l o a d Exit Automatically Activated Enter User Codes for Press both Areas (at any time to exit) EXIT Enter Zone Descriptions NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 33 (NOTE 7) NORMAL KEYPAD CONFIGURE ( - ) (GEM-RP1CAe2) 2 LINE KEYPAD NOTES: 1. ) ALARM CURRENT CAN BE INCREASED BY REDUCING STANDBY CURRENT BY THE SAME AMOUNT. 2. ) THE FOLLOWING DEVICES MAY BE PLACE ON THE REMOTE BUS: GEM-RP1CAe2, GEM-RP2ASe2, GEM-EZM816, GEM-X10, GEM-RECV8, GEM-RECV16, RM3008, GEM-EVA1 AND WIZARD2.
- Page 34 Page 34 WI808B 8/98 NOTES NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 35 NAPCO Security Systems GEM-P1632 Installation Instructions...
- Page 36 NAPCO LIMITED WARRANTY NAPCO SECURITY SYSTEMS, INC. (NAPCO) warrants In no event shall NAPCO be liable for an amount in excess its products to be free from manufacturing defects in of NAPCO's original selling price of the product, for any...
