PROTEC6GSM
TM600GSM
6 zones + central unit
with gsm dialer
and integrated ir

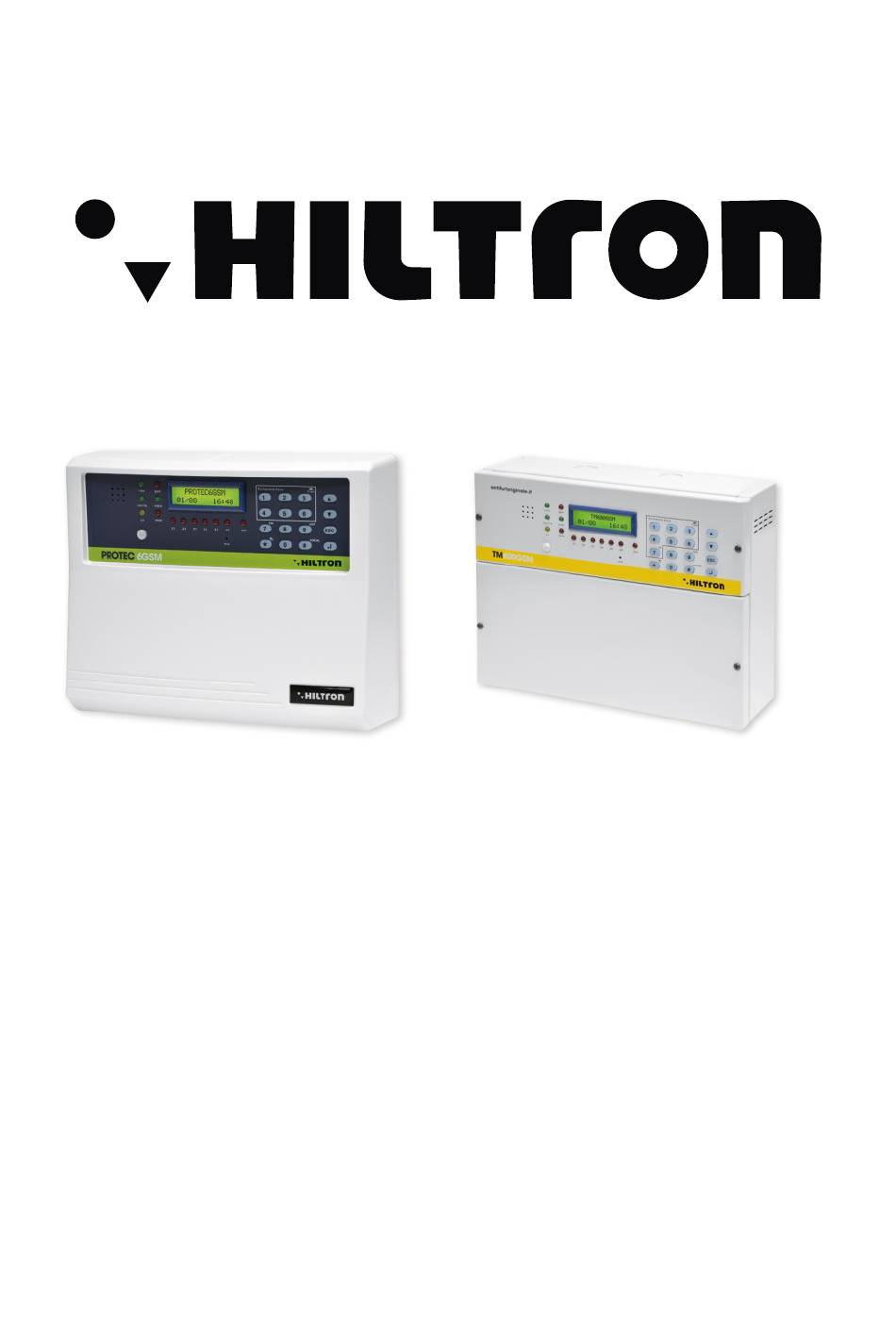

USER MANUAL
(for software version 2.25)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROTEC6GSM and is the answer not in the manual?

Questions and answers

Related Manuals for Hiltron security PROTEC6GSM

Summary of Contents for Hiltron security PROTEC6GSM

  • Page 1 PROTEC6GSM TM600GSM 6 zones + central unit with gsm dialer and integrated ir USER MANUAL (for software version 2.25)

  • Page 2: Functional Characteristics

    Optional signaling of extended network absence. Request of residual telephone credit by SMS. Optional re-sending of SMS received. Central anti-tamper protection tamper. Anti-tamper tamper (PROTEC6GSM only). Battery compartment B12V7.5Ah. Degree of safety: 1. Environmental class: 2. Container in ABS (PROTEC6GSM) or metal (TM600GSM).

  • Page 3: Technical Characteristics

    Introduction security 1.2 Technical Characteristics PROTEC6GSM TM600GSM Areas of immediate protection Areas of delayed protection Areas of anti sabotage protection "24h” 1 + Tamper Rated supply voltage 230V~ ±5% 50Hz Service output voltage 12Vcc ±10% (Max 1Ah) Backup Battery Compartment (battery suggested B12V7.5Ah)

  • Page 4: Installation

    PROTEC6GSM/TM600GSM - User manual security security Installation Installation Avvertenze generali Avvertenze generali Do not install this central unit in places subject to extreme temperatures and/or bad weather; Do not install this central unit in places subject to extreme temperatures and/or bad weather;...
  • Page 5 Installation Installation security security Once the connections have been completed, insert the two wires with a faston connector coming Once the connections have been completed, insert the two wires with a faston connector coming from the power supply to the battery, respecting the connection polarity. from the power supply to the battery, respecting the connection polarity.
  • Page 6 PROTEC6GSM/TM600GSM - User manual security 2.3.1 Connection of volumetric detectors and contacts PROTEC6GSM/TM600GSM +12V +INT S.A. GND Sir. GND Z2 Z3 GND Z5 GND Detector Resistance 3300ohm In series at the 24h lines Balanced zone connection long threads short threads...

  • Page 7: Siren Connection

    Installation security 2.3.2 Siren Connection PROTEC6GSM/TM600GSM +12V +INT S.A. GND Sir. GND Z2 Z3 GND Z5 GND In serie at the 24h lines Electronic siren Self powered siren...
  • Page 8 PROTEC6GSM/TM600GSM - User manual security 2.3.3 Connection with the electronic key PROTEC6GSM/TM600GSM +12V +INT S.A. GND Sir. GND Z2 Z3 GND Z5 GND In series at the 24h (coptional connection*) ELECTRONIC KEY * This connection provides for the activation of the anti-tampering alarm 24h when a false key is inserted.
  • Page 9 Installation security 2.3.4 Keypad connections XM Series / Tamper-proof (PROTEC6GSM) PROTEC6GSM/TM600GSM +12V +INT S.A. GND Sir. GND Z2 Z3 GND Z5 GND Serie XM Consolle CAUTION: The console must be configured with Address 1: Press 3 times immediately after powering up the console, choose ID-1with...

  • Page 10: Access To Programming

    PROTEC6GSM/TM600GSM - User manual security 3 Programmation Once the installation has been carried out and given the voltage to the control unit (PROTEC6GSM or TM600GSM), the following is displayed : A B C D Indicates signal strength (ABCD Network OK)
  • Page 11 Programmation security Insert a phone number (max 32 digits) N u m e r o 1 2 3 4 5 6 7 8 9 > NOTE: To correct a typing error, use the button to delete the last number entered in the phone book or select the wrong number using the buttons and type in the new correct number.
  • Page 12 PROTEC6GSM/TM600GSM - User manual security 3.1.2 Parameters Access the programming menu by pushing or use to see A B C D 2 - P a r a m e t r i then press buttons to select and press to modify one of the options:: OUT + Int.
  • Page 13 Programmation security SMS Forwarding If this function is enabled, the dialler sends all the received SMS to the first contact saved in the contact list. I n o l t r o S M S A b i l i t a t o to change status, press I n o l t r o S M S...
  • Page 14 PROTEC6GSM/TM600GSM - User manual security Entry delay time The entry time is the time available to the user to access the protected environments and disarm the system before the alarm is activated. During this time, any activation of the sensors placed on the delayed protection zones (zone 1 and 2) will not cause alarms.
  • Page 15 Programmation security Alarm duration This option allows you to adjust the duration of the acoustic signals of the alarms occurring in the control panel. D u r a t a a l l a r m e 1 8 0 To set the desired time (from 180 to 600sec), press and the display will show: I n s e r i s c i v a l o r e...
  • Page 16 PROTEC6GSM/TM600GSM - User manual security 3.1.3 Codes The CODICE MASTER allows access to the programming menu. The COMMAND CODE allows access to the control functions of the system. Enter the CODICE MASTER, press until the display shows: A B C D...
  • Page 17 Programmation security 3.1.4 Customizable Common Voice Message The common message is a pre-recorded voice message, repeated during telephone communications, that can be used to identify the system from which the alarm calls originate. In the programming menu, push until you see: A B C D 4 - M s g .
  • Page 18 PROTEC6GSM/TM600GSM - User manual security 3.1.6 Info In the “Programming Menu” use keys until you see: A B C D 6 - I n f o and press , or digit CODICE MASTER S e r i e P R O T E C 6 z o n e G S M keys to view the firmware release and the IMEI of the GSM module.

  • Page 19: Command Menu

    Commands security 4 Commands To operate on the control panel and carry out the activation / deactivation operations it is necessary to access the "Command Menu". Type the Command code (by default 1-2-3-4) followed by and then dial the number of the desired voice or push until you correctly select it.
  • Page 20 PROTEC6GSM/TM600GSM - User manual security 4.1.2 Change Code COMMANDS To enter the desired option, while in the command menu use keys and confirm by pressing or directly type (CODICE COMANDI S E L E Z . C O D I C E...
  • Page 21 Commands security At the end you can use to view all the alarmed zones: Z O N E A p e r t e > - - - 4 5 - - < and again by pushing you can see the zones in alarm memory: M e m o r i a A l l a r m e >...
  • Page 22 PROTEC6GSM/TM600GSM - User manual security 4.1.6 Choice of partialization scheme In the command menu, select the following option by pushing 2 5 A B C D 6 - I m p . P a r z i a l e...
  • Page 23 Commands security The voice guidance menu can also be accessed remotely, via a voice connection on the GSM network by sending the DTMF codes relating to the panel's panel keys (see also remote control). In this case, on the control panel display appears the following message: A B C D M e n ù...
  • Page 24 PROTEC6GSM/TM600GSM - User manual security according to the status that the zone has assumed, followed by the repetition of the message with a list of the excluded zones. By pressing you will return to the main menu and the available options will be repeated.

  • Page 25: Operation

    Operation security 5 Operation 5.1 - Description of the panel PROTEC6GSM/TM600GSM 6 zone GSM RETE USCITA STATO ZONA ZONA ZONA ZONA ZONA ZONA ZONA pqrs wxyz m i c SPEAKER HOLES For recording and listening to messages “NETWORK” LED Line voltage presence...
  • Page 26 PROTEC6GSM/TM600GSM - User manual security 5.2 - Commands 5.2.1 Insertion From the panel of the control panel it is necessary to check that the immediate zones are not open: check that the relative LEDs are not on and eventually close doors and windows or leave the rooms monitored by sensors that keep the zone alarmed.Opening the delayed zones does not prevent the...
  • Page 27 Operation security 5.2.2 Switch off From panel or console it is necessary to enter the code COMMANDS, select the menu: A B C D 1 - I n s e r . / D i s i n s . press I M P : I N S E R I T O...
  • Page 28 PROTEC6GSM/TM600GSM - User manual security 5.4 - Partialized insertion Access the menu using the user code , and press the button to scroll through the menu using the buttons, until item 6 of the menu. 1 - I m p . P a r z i a l e press the button .

  • Page 29: Alarm Memory

    Operation security 5.5 - Operation of areas. 5.5.1 Zone 1 and 2 (delayed) When the system is switched on, when the NC line is opened, an alarm cycle is activated after a delay set in programming (entry time). If the input line is programmed as a balanced line, the control panel is activated to start an alarm cycle both in case of opening of the line and in case of a short-circuit of the line;...
  • Page 30 PROTEC6GSM/TM600GSM - User manual security 5.6 - Operation of the GSM dialer. The first line of the control panel display shows the status indications of the GSM dialer during the initialization of the GSM module: I n i t G S M ..

  • Page 31: Remote Control

    Operation security During connection the following message appears on the display: C o n n e s s o ..and sending the code with the DTMF tones of the telephone on the second line is signaled: C o n n e s s o .

  • Page 32: Maintenance

    PROTEC6GSM/TM600GSM - User manual security 5.5.3 Requesting residual credit If you want to query the telephone operator to know the telephone credit, you can send a message to the SIM of the control panel according to the rules of the telephone operator preceded by the text <SMS>...
